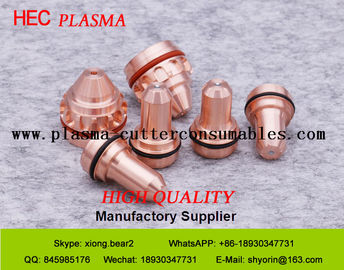

Electrode 22-1171 For Ultra Cut 100/150/200/300 Plasma Machine torch, Victor Plasma Consumables
Shanghai ZhouBo Welding & Cutting Technology is specialized in Welding & Cutting consumables with Good Quality, Competitive Price, On-Time Delivery and Excellent Services and we are looking for long-term friendly cooperation with you.
Shanghai ZhouBo Welding & Cutting Technology company are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China
| XT-300® High Precision Plasma Torch | |||||||||
| Ultra-Cut® 30-100Amps | |||||||||
| Ultra-Cut® 100/150/200/300 | |||||||||
| Amps | Plasma/Shield Gas | Shield Cup | Shield Cap | Shield Gas Distributor | Tip | Plasma Gas Distributor | Electrode | Cartridge |
| 30A | O2 Plasma / O2 Shield | 22-1016 | 22-1024 | 22-1282 | 22-1050 | 22-1040 | 22-1068 | 22-1020 | |
| 50A | O2 Plasma / Air Shield | 22-1016 | 22-1025 | 22-1272 | 22-1051 | 22-1041 | 22-1069 | 22-1020 | |
| 70A | O2 Plasma / Air Shield | 22-1016 | 22-1026 | 22-1272 | 22-1052 | 22-1041 | 22-1070 | 22-1020 | |
| 85A | Air Plasma / Air Shield | 22-1016 | 22-1027 | 22-1272 | 22-1053 | 22-1041 | 22-1071 | 22-1020 | |
| 100A | O2 Plasma / Air Shield | 22-1016 | 22-1027 | 22-1272 | 22-1053 | 22-1041 | 22-1071 | 22-1020 | |
| 30A | Air Plasma / Air Shield | 22-1016 | 22-1033 | 22-1274 | 22-1059 | 22-1045 | 22-1077 | 22-1020 |
| N2 Plasma / H20 Shield | 22-1016 | 22-1033 | 22-1274 | 22-1059 | 22-1045 | 22-1077 | 22-1020 | ||
| 50A | Air Plasma / Air Shield | 22-1016 | 22-1034 | 22-1274 | 22-1060 | 22-1041 | 22-1078 | 22-1020 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1034 | 22-1274 | 22-1060 | 22-1041 | 22-1078 | 22-1020 | ||
| 70A | Air Plasma / Air Shield | 22-1016 | 22-1035 | 22-1274 | 22-1061 | 22-1041 | 22-1079 | 22-1020 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1047 | 22-1274 | 22-1064 | 22-1041 | 22-1084 | 22-1020 | ||
| 100A | H35 Plasma / N2 Shield | 22-1016 | 22-1036 | 22-1274 | 22-1062 | 22-1041 | 22-1080 | 22-1020 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1036 | 22-1274 | 22-1053 | 22-1041 | 22-1089 | 22-1020 | ||
| XT-300® High Precision Plasma Torch | |||||||||
| Ultra-Cut® 150-300Amps | |||||||||
| Ultra-Cut® 150 | |||||||||
| Ultra-Cut® 200 | |||||||||
| Ultra-Cut® 300 | |||||||||
| Amps | Plasma/Shield Gas | Shield Retainer | Shield Cup | Shield Cap | Shield Gas Distributor | Tip | Plasma Gas Distributor | Electrode |
| 150A | O2 Plasma / Air Shield | 22-1016 | 22-1028 (≦20mm) 22-1275 (﹥20mm) | 22-1273 | 22-1054 | 22-1042 | 22-1072 | ||
| 200A | O2 Plasma / Air Shield | 22-1014 | 22-1017 | 22-1030 | 22-1285 | 22-1055 | 22-1042 | 22-1093 | |
| 250A | O2 Plasma / Air Shield | 22-1014 | 22-1017 | 22-1030 | 22-1285 | 22-1056 | 22-1042 | 22-1093 | |
| 300A | O2 Plasma / Air Shield | 22-1021 | 22-1017 | 22-1029 | 22-1082 (≦15mm) 22-1283 (﹥15mm) | 22-1057 | 22-1042 | 22-1090 | |
| 150A | H35 Plasma / N2 Shield | 22-1016 | 22-1037 | 22-1278 | 22-1063 | 22-1041 | 22-1081 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1048 | 22-1278 | 22-1092 | 22-1041 | 22-1081 | |||
| 200A | H35 Plasma / N2 Shield | 22-1015 | 22-1017 | 22-1073 (SS/AL≦25mm) 22-1073 (SS﹥25mm) 22-1094 (AL﹥25mm) | 22-1284 | 22-1095 | 22-1043 | 22-1096 | |
| N2 Plasma / H20 Shield | 22-1015 | 22-1017 | 22-1049 | 22-1284 | 22-1067 | 22-1043 | 22-1089 | ||
| 300A | H35 Plasma / N2 Shield | 22-1015 | 22-1017 | 22-1038 (≦25mm) 22-1039 (﹥25mm) | 22-1284 | 22-1065 | 22-1041 | 22-1091 | |
| N2 Plasma / H20 Shield | 22-1015 | 22-1017 | 22-1046 | 22-1284 | 22-1066 | 22-1043 | 22-1089 | ||
Technical Support:
1. check the performance of all buttons and select the switch, the replacement of the damaged, and finally draw a comprehensive detection of the accuracy of the machine.
2. loosen up device, drive pulley by hand, whether freely, such as timely adjust or replace the abnormal situation.
3. weekly to the machine for a comprehensive clean-up, horizontal, vertical guide rail, transmission gear rack cleaning, filling the lubricating oil.
