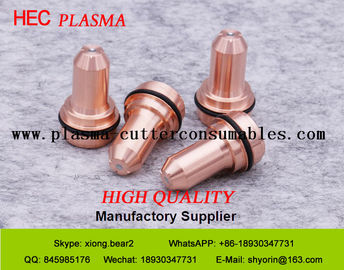

Ultra Cut 100/150/200/300 Plasma Machine torch Tip 22-1072, ThermalDynamics Plasma Cut Machine accessories
We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, Kaliburn such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
Shanghai ZhouBo Welding & Cutting Technology company are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China
| XT-300® High Precision Plasma Torch | |||||||||
| Ultra-Cut® 30-100Amps | |||||||||
| Ultra-Cut® 100/150/200/300 | |||||||||
|
Mild Steel |
Amps | Plasma/Shield Gas | Shield Cup | Shield Cap | Shield Gas Distributor | Tip | Plasma Gas Distributor | Electrode | Cartridge |
| 30A | O2 Plasma / O2 Shield | 22-1016 | 22-1024 | 22-1282 | 22-1050 | 22-1040 | 22-1068 | 22-1020 | |
| 50A | O2 Plasma / Air Shield | 22-1016 | 22-1025 | 22-1272 | 22-1051 | 22-1041 | 22-1069 | 22-1020 | |
| 70A | O2 Plasma / Air Shield | 22-1016 | 22-1026 | 22-1272 | 22-1052 | 22-1041 | 22-1070 | 22-1020 | |
| 85A | Air Plasma / Air Shield | 22-1016 | 22-1027 | 22-1272 | 22-1053 | 22-1041 | 22-1071 | 22-1020 | |
| 100A | O2 Plasma / Air Shield | 22-1016 | 22-1027 | 22-1272 | 22-1053 | 22-1041 | 22-1071 | 22-1020 | |
|
Stainless Steel Aluminum |
30A | Air Plasma / Air Shield | 22-1016 | 22-1033 | 22-1274 | 22-1059 | 22-1045 | 22-1077 | 22-1020 |
| N2 Plasma / H20 Shield | 22-1016 | 22-1033 | 22-1274 | 22-1059 | 22-1045 | 22-1077 | 22-1020 | ||
| 50A | Air Plasma / Air Shield | 22-1016 | 22-1034 | 22-1274 | 22-1060 | 22-1041 | 22-1078 | 22-1020 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1034 | 22-1274 | 22-1060 | 22-1041 | 22-1078 | 22-1020 | ||
| 70A | Air Plasma / Air Shield | 22-1016 | 22-1035 | 22-1274 | 22-1061 | 22-1041 | 22-1079 | 22-1020 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1047 | 22-1274 | 22-1064 | 22-1041 | 22-1084 | 22-1020 | ||
| 100A | H35 Plasma / N2 Shield | 22-1016 | 22-1036 | 22-1274 | 22-1062 | 22-1041 | 22-1080 | 22-1020 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1036 | 22-1274 | 22-1053 | 22-1041 | 22-1089 | 22-1020 | ||
| XT-300® High Precision Plasma Torch | |||||||||
| Ultra-Cut® 150-300Amps | |||||||||
| Ultra-Cut® 150 | |||||||||
| Ultra-Cut® 200 | |||||||||
| Ultra-Cut® 300 | |||||||||
|
Mild Steel |
Amps | Plasma/Shield Gas | Shield Retainer | Shield Cup | Shield Cap | Shield Gas Distributor | Tip | Plasma Gas Distributor | Electrode |
| 150A | O2 Plasma / Air Shield | 22-1016 | 22-1028 (≦20mm) 22-1275 (﹥20mm) | 22-1273 | 22-1054 | 22-1042 | 22-1072 | ||
| 200A | O2 Plasma / Air Shield | 22-1014 | 22-1017 | 22-1030 | 22-1285 | 22-1055 | 22-1042 | 22-1093 | |
| 250A | O2 Plasma / Air Shield | 22-1014 | 22-1017 | 22-1030 | 22-1285 | 22-1056 | 22-1042 | 22-1093 | |
| 300A | O2 Plasma / Air Shield | 22-1021 | 22-1017 | 22-1029 | 22-1082 (≦15mm) 22-1283 (﹥15mm) | 22-1057 | 22-1042 | 22-1090 | |
|
Stainless Steel Aluminum |
150A | H35 Plasma / N2 Shield | 22-1016 | 22-1037 | 22-1278 | 22-1063 | 22-1041 | 22-1081 | |
| N2 Plasma / H20 Shield | 22-1016 | 22-1048 | 22-1278 | 22-1092 | 22-1041 | 22-1081 | |||
| 200A | H35 Plasma / N2 Shield | 22-1015 | 22-1017 | 22-1073 (SS/AL≦25mm) 22-1073 (SS﹥25mm) 22-1094 (AL﹥25mm) | 22-1284 | 22-1095 | 22-1043 | 22-1096 | |
| N2 Plasma / H20 Shield | 22-1015 | 22-1017 | 22-1049 | 22-1284 | 22-1067 | 22-1043 | 22-1089 | ||
| 300A | H35 Plasma / N2 Shield | 22-1015 | 22-1017 | 22-1038 (≦25mm) 22-1039 (﹥25mm) | 22-1284 | 22-1065 | 22-1041 | 22-1091 | |
| N2 Plasma / H20 Shield | 22-1015 | 22-1017 | 22-1046 | 22-1284 | 22-1066 | 22-1043 | 22-1089 | ||
Technical Support:
1. the operator must go through professional training and be able to skillfully operate, non professionals do not move.
2. In the operation must be confirmed without external interference, everything is normal, the cutting plate dipping in the cutting platform, the plate can not be more than cutting range (Note: in hoisting to be careful).
B. Daily maintenance and maintenance:
1. Each work, must clean up the dirt and guide rail machine, make the bed is kept clean, air and power is shut down work. At the same time emptying machine tube with residual gas.
2 if you leave the machine for a long time to turn off the power, in case of non professional operation.
3 observe the machine horizontal, vertical guide rail and rack surface with no lubricating oil, to keep the good lubrication!
C. Weekly maintenance and maintenance:
1 weekly to the machine for a comprehensive clean-up, horizontal, vertical guide rail, transmission gear rack cleaning, filling the lubricating oil.
2 check the horizontal and vertical rail cleaning device is working properly, if not properly and timely replacement.
3 check all the torch is loose, clean up the garbage of the ignition gun ignition, maintain normal.
4 if there is automatic adjustment of the device, the detection is sensitive, whether to replace the probe.
D. Maintenance of the month and quarter:
1 check the total air intake is free of garbage, each valve and pressure gauge is working properly.
2 check all tracheal joints are loose, all pipes with no damage. Tighten or replace if necessary.
3 check all the transmission parts are loose, check the gear and rack meshing situation, when necessary to adjust.
4 loosen up device, drive pulley by hand, whether freely, such as timely adjust or replace the abnormal situation.
5 check the clamping block, steel belt and guide wheel with no loose, steel belt tightness condition, when necessary adjustment.
6 check the electrical cabinet and operation platform, the fastening screw is loose, clean up the dust inside the cabinet with a vacuum cleaner or hair dryer. Check if the connector is loose (refer to the electrical manual).
7 check the performance of all buttons and select the switch, the replacement of the damaged, and finally draw a comprehensive detection of the accuracy of the machine.
