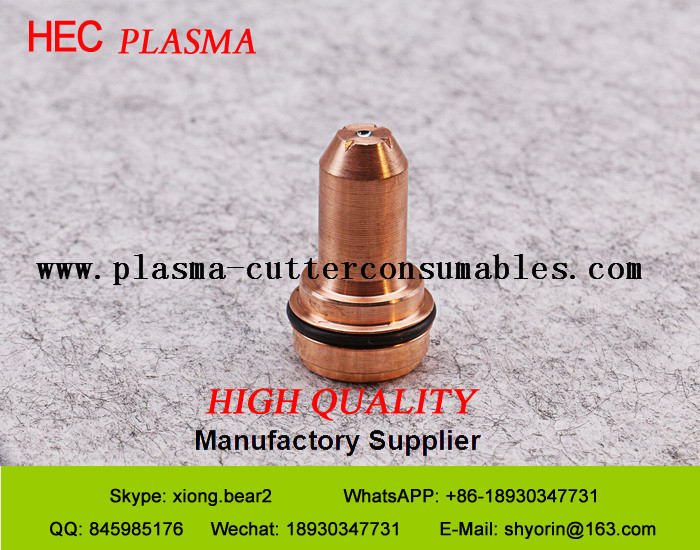

Thermal Dynamics Consumables 22-1090 Plasma Cutting Electrode

5pcs
MOQ
negotiation
Price
Thermal Dynamics Consumables 22-1090 Plasma Cutting Electrode
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Plasma Consumables
Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard
Type: 22-1090
High Light:

plasma cutting tip

,

plasma cutting machine parts

Basic Infomation
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: 22-1090
Payment & Shipping Terms
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Product Description

Victor Plasma 22-1090 Electrode For Thermal Dynamics Plasma Cutter Accessories

Each of our products has been tested with a rigorous precision instrument, A large number of piercings tests and service life tests, And made batch trial in our customers. If all results are good, then we will producing them.

Shanghai ZhouBo Welding & Cutting Technology company are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China ,it was established in 2007,but we had 10 years manufacturing experience in this field, the new factory covers an area of more than 10000 square meters .There are 50-100 workers and 20 research engineers.

Our company adopts modern management mode and devotes itself to new high performance design and production of welding & cutting equipments, with continuous technique advantages innovation .All our staff are striving to realize the aim of "Create Chinese Brand ,Build First-Class Enterprise ",with the spirit of "Being honest and pragmatic ,making pioneering efforts and seeking perfection with persistency."




XT-300® High Precision Plasma Torch
Ultra-Cut® 30-100Amps
Ultra-Cut® 100/150/200/300









Mild Steel

Amps Plasma/Shield Gas Shield Cup Shield Cap Shield Gas Distributor Tip Plasma Gas Distributor Electrode Cartridge
30A O2 Plasma / O2 Shield 22-1016 22-1024 22-1282 22-1050 22-1040 22-1068 22-1020
50A O2 Plasma / Air Shield 22-1016 22-1025 22-1272 22-1051 22-1041 22-1069 22-1020
70A O2 Plasma / Air Shield 22-1016 22-1026 22-1272 22-1052 22-1041 22-1070 22-1020
85A Air Plasma / Air Shield 22-1016 22-1027 22-1272 22-1053 22-1041 22-1071 22-1020
100A O2 Plasma / Air Shield 22-1016 22-1027 22-1272 22-1053 22-1041 22-1071 22-1020













Stainless Steel

Aluminum

30A Air Plasma / Air Shield 22-1016 22-1033 22-1274 22-1059 22-1045 22-1077 22-1020
N2 Plasma / H20 Shield 22-1016 22-1033 22-1274 22-1059 22-1045 22-1077 22-1020
50A Air Plasma / Air Shield 22-1016 22-1034 22-1274 22-1060 22-1041 22-1078 22-1020
N2 Plasma / H20 Shield 22-1016 22-1034 22-1274 22-1060 22-1041 22-1078 22-1020
70A Air Plasma / Air Shield 22-1016 22-1035 22-1274 22-1061 22-1041 22-1079 22-1020
N2 Plasma / H20 Shield 22-1016 22-1047 22-1274 22-1064 22-1041 22-1084 22-1020
100A H35 Plasma / N2 Shield 22-1016 22-1036 22-1274 22-1062 22-1041 22-1080 22-1020
N2 Plasma / H20 Shield 22-1016 22-1036 22-1274 22-1053 22-1041 22-1089 22-1020

XT-300® High Precision Plasma Torch
Ultra-Cut® 150-300Amps

Ultra-Cut® 150
Ultra-Cut® 200
Ultra-Cut® 300













Mild Steel

Amps Plasma/Shield Gas Shield Retainer Shield Cup Shield Cap Shield Gas Distributor Tip Plasma Gas Distributor Electrode
150A O2 Plasma / Air Shield   22-1016 22-1028 (≦20mm) 22-1275 (﹥20mm) 22-1273 22-1054 22-1042 22-1072
200A O2 Plasma / Air Shield 22-1014 22-1017 22-1030 22-1285 22-1055 22-1042 22-1093
250A O2 Plasma / Air Shield 22-1014 22-1017 22-1030 22-1285 22-1056 22-1042 22-1093
300A O2 Plasma / Air Shield 22-1021 22-1017 22-1029 22-1082 (≦15mm) 22-1283 (﹥15mm) 22-1057 22-1042 22-1090













Stainless Steel

Aluminum

150A H35 Plasma / N2 Shield   22-1016 22-1037 22-1278 22-1063 22-1041 22-1081
N2 Plasma / H20 Shield   22-1016 22-1048 22-1278 22-1092 22-1041 22-1081
200A H35 Plasma / N2 Shield 22-1015 22-1017 22-1073 (SS/AL≦25mm) 22-1073 (SS﹥25mm) 22-1094 (AL﹥25mm) 22-1284 22-1095 22-1043 22-1096
N2 Plasma / H20 Shield 22-1015 22-1017 22-1049 22-1284 22-1067 22-1043 22-1089
300A H35 Plasma / N2 Shield 22-1015 22-1017 22-1038 (≦25mm) 22-1039 (﹥25mm) 22-1284 22-1065 22-1041 22-1091
N2 Plasma / H20 Shield 22-1015 22-1017 22-1046 22-1284 22-1066 22-1043 22-1089



Technical Support:

How to maintain CNC cutting machine



CNC cutting machine working site and working environment is relatively poor, relatively large metal dust. Therefore, the machine must be fully cleaned and maintenance, the person responsible for the equipment lubrication, maintenance and maintenance work!





A. e operation:



1. CNC cutting machine is a sophisticated equipment, so the cutting machine operation must do sanding (man, machine, posts)



2 the operator must go through professional training and be able to skillfully operate, non professionals do not move.



3. In the operation must be confirmed without external interference, everything is normal, the cutting plate dipping in the cutting platform, the plate can not be more than cutting range (Note: in hoisting to be careful).



B. Daily maintenance and maintenance:



1. Each work, must clean up the dirt and guide rail machine, make the bed is kept clean, air and power is shut down work. At the same time emptying machine tube with residual gas.



2 if you leave the machine for a long time to turn off the power, in case of non professional operation.



3 observe the machine horizontal, vertical guide rail and rack surface with no lubricating oil, to keep the good lubrication!



C. Weekly maintenance and maintenance:



1 weekly to the machine for a comprehensive clean-up, horizontal, vertical guide rail, transmission gear rack cleaning, filling the lubricating oil.



2 check the horizontal and vertical rail cleaning device is working properly, if not properly and timely replacement.



3 check all the torch is loose, clean up the garbage of the ignition gun ignition, maintain normal.



4 if there is automatic adjustment of the device, the detection is sensitive, whether to replace the probe.



D. Maintenance of the month and quarter:



1 check the total air intake is free of garbage, each valve and pressure gauge is working properly.



2 check all tracheal joints are loose, all pipes with no damage. Tighten or replace if necessary.



3 check all the transmission parts are loose, check the gear and rack meshing situation, when necessary to adjust.



4 loosen up device, drive pulley by hand, whether freely, such as timely adjust or replace the abnormal situation.



5 check the clamping block, steel belt and guide wheel with no loose, steel belt tightness condition, when necessary adjustment.



6 check the electrical cabinet and operation platform, the fastening screw is loose, clean up the dust inside the cabinet with a vacuum cleaner or hair dryer. Check if the connector is loose (refer to the electrical manual).



7 check the performance of all buttons and select the switch, the replacement of the damaged, and finally draw a comprehensive detection of the accuracy of the machine.
