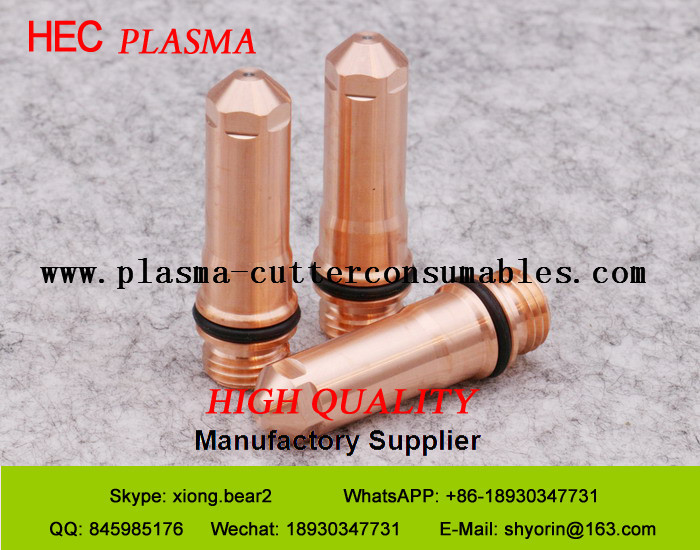

Silver Electrode 220187, Plasma Torch Accessory For HPR130XD Plasma Machine

Silver Electrode 220187, Plasma Torch Accessory For HPR130XD Plasma Machine

  • Silver Electrode 220187, Plasma Torch Accessory For HPR130XD Plasma Machine
Silver Electrode 220187, Plasma Torch Accessory For HPR130XD Plasma Machine
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: 220187
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: 220187
High Light:

plasma cutting accessories


plasma cutter parts

220181 Silver Electrode, Plasma Cutting Consumables For HPR130XD Machine


 Method for prolonging the service life of the plasma wearing parts

1 ensure the correct air pressure and flow rate of the plasma gas

The correct pressure and flow rate of the plasma gas are very important to the service life of the wearing parts. If the pressure is too high, the life of the electrode will be greatly reduced; If the pressure is too low, the nozzle's life will be affected, using a reasonable cut distance: In accordance with the requirements of the use of the specification, the use of a reasonable cut (cutting the distance between the nozzle and the working surface), when the perforation, the initial arcing distance as far as possible The maximum height of the plasma arc can be transferred by 2 times of normal cutting distance. the thickness of the perforation should be within the scope of the plasma system. Cutting machine can not be perforated over the thickness of the plate, usually the thickness of the normal thickness of the thickness of the cutting 1/2. For example: the 100A plasma system for cutting 1 inches (about 25mm) of carbon steel, the system perforation thickness should be 0.5 inches (about 12.5mm). nozzles do not overload, Let the nozzle overload (that is, over the working current of the nozzle), the nozzle will soon be damaged. The current intensity should be 95% of the working current of the nozzle. For example: 100 the current intensity of the nozzle should be set to 80--60A. keep the drying and cleaning of the plasma gas. Plasma system need to dry clean plasma gas to work properly, gas compression system often pollute the gas, so easy to shorten the service life of wearing parts, resulting in damage to the non normal damage. The quality of test gas method is the system in state test, a mirror is placed at the bottom of the torch, torch vent gas, such as on the mirror produces water vapor or mist matter, you need to from gas compression system begin to check and correct them in time.


Silver Electrode 220187, Plasma Torch Accessory For HPR130XD Plasma Machine 0


Silver Electrode 220187, Plasma Torch Accessory For HPR130XD Plasma Machine 1



Machine HEC NO. Ref NO. Description

HPR 130
HPR 260

H03192 220192 Electrode,30Amp
H03552 220552 Electrode,50Amp
H03187 220187 Electrode,80Amp
H03181 220181 Electrode,130Amp
H03352 220352 Electrode,200Amp
H03435 220435 Electrode,260Amp
H03649 220649 Electrode,130Amp Bevel
H03541 220541 Electrode,260Amp Bevel
H03665 220665 Electrode,130Amp(silver Plus)
H03666 220666 Electrode,200Amp(silver Plus)
H03668 220668 Electrode,260Amp(silver Plus)
H03629 220629 Electrode,400Amp
H73180 220180 Swirl Ring,30Amp
H73553 220553 Swirl Ring,50Amp
H73353 220353 Swirl Ring,200Amp
H73179 220179 Swirl Ring,80/130/260Amp(Bevel)
H73436 220436 Swirl Ring,260/260Amp(Bevel)
H73631 220631 Swirl Ring,400/400Amp(Bevel)
H13193 220193 Nozzle,30Amp
H13554 220554 Nozzle,50Amp
H13188 220188 Nozzle,80Amp
H13182 220182 Nozzle,130Amp
H13354 220354 Nozzle,200Amp
H13439 220439 Nozzle,260Amp
H13646 220646 Nozzle,130Amp(Bevel)
H13542 220542 Nozzle,260Amp(Bevel)
H13632 220632 Nozzle,400/400Amp(Bevel)
H33754 220754 Retaining Cap 30/50Amp
H33176 220176 Retaining Cap 80/130Amp
H33355 220355 Retaining Cap 200Amp
H33433 220433 Retaining Cap 260Amp
H33603 220603 Retaining Cap (Bevel) 130/260Amp
H33756 220756 Retaining Cap 80/130Amp
H33757 220757 Retaining Cap 200Amp
H33760 220760 Retaining Cap 260Amp
H33635 220635 Retaining Cap 400/400Amp(Bevel)
H33740 220740 Retaining Cap (Bevel) 130/260Amp
H23194 220194 Shield,30Amp
H23555 220555 Shield,50Amp
H23189 220189 Shield,80Amp
H23183 220183 Shield,130Amp
H23356 220356 Shield,200Amp
H23440 220440 Shield,260Amp
H23645 220645 Shield,130Amp(Bevel)
H23545 220545 Shield,260Amp(Bevel)
H23761 220761 Shield,200Amp
H23764 220764 Shield,260Amp
H23636 220636 Shield,400/400Amp(Bevel)
H23742 220742 Shield,130Amp(Bevel)
H23741 220741 Shield,260Amp(Bevel)
H43173 220173 Retaining Cap 30/50/80/130Amp
H43398 220398 Retaining Cap 200/260/(Bevel)130/260Amp
H43747 220747 Retaining Cap 30/50/80/130Amp
H43637 220637 Retaining Cap 200/260/400Amp(Bevel)
H83818 128818 HPR torch assembly
H83162 220162 Quick-disconnect torch
H83163 220163 Quick-disconnect recepticle
H83706 220706 Quick-disconnect torch
H83705 220705 Quick-disconnect recepticle
H93571 220571 Water Tube with O-Ring
H93340 220340 Water Tube with O-Ring(30/50/80/130/200/260Amp)
H93700 220700 Bevel water tube(mild steel-130A)
