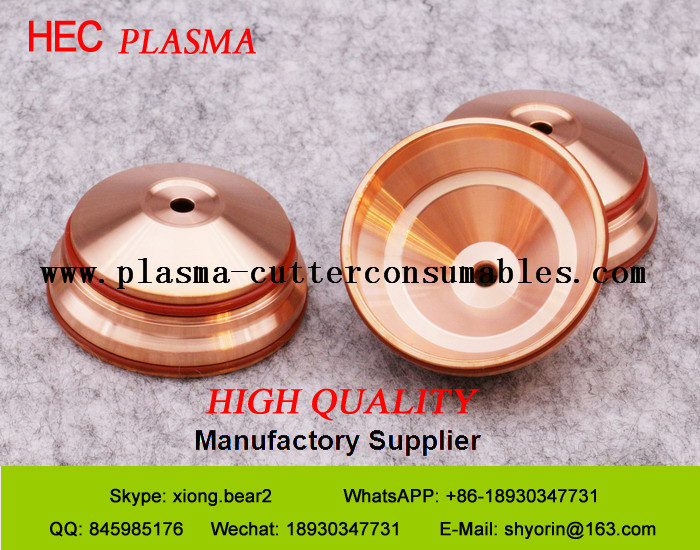

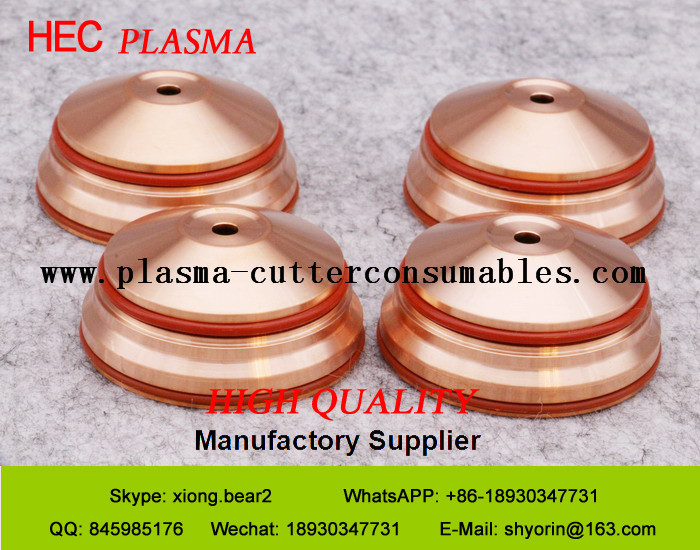

HPR260XD 200A Shield Cap 220761, Plasma Cutting Shield Cap
Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
In some aspects, electrodes can include a front portion shaped to matingly engage a nozzle of the plasma cutting system, the front portion having a first end comprising a plasma arc emitter disposed therein; and a rear portion thermally connected to a second end of the front portion, the rear portion shaped to slidingly engage with a complementary swirl ring of the plasma cutting system and including: an annular mating feature extending radially from a proximal end of the rear portion of the electrode to define a first annular width to interface with the swirl ring, the annular mating feature comprising a sealing member configured to form a dynamic seal with the swirl ring to inhibit a flow of a gas from a forward side of the annular mating feature to a rearward side of the annular mating feature.
| Machine | HEC NO. | Ref NO. | Description |
| H03192 | 220192 | Electrode,30Amp |
| H03552 | 220552 | Electrode,50Amp | |
| H03187 | 220187 | Electrode,80Amp | |
| H03181 | 220181 | Electrode,130Amp | |
| H03352 | 220352 | Electrode,200Amp | |
| H03435 | 220435 | Electrode,260Amp | |
| H03649 | 220649 | Electrode,130Amp Bevel | |
| H03541 | 220541 | Electrode,260Amp Bevel | |
| H03665 | 220665 | Electrode,130Amp(silver Plus) | |
| H03666 | 220666 | Electrode,200Amp(silver Plus) | |
| H03668 | 220668 | Electrode,260Amp(silver Plus) | |
| H03629 | 220629 | Electrode,400Amp | |
| H73180 | 220180 | Swirl Ring,30Amp | |
| H73553 | 220553 | Swirl Ring,50Amp | |
| H73353 | 220353 | Swirl Ring,200Amp | |
| H73179 | 220179 | Swirl Ring,80/130/260Amp(Bevel) | |
| H73436 | 220436 | Swirl Ring,260/260Amp(Bevel) | |
| H73631 | 220631 | Swirl Ring,400/400Amp(Bevel) | |
| H13193 | 220193 | Nozzle,30Amp | |
| H13554 | 220554 | Nozzle,50Amp | |
| H13188 | 220188 | Nozzle,80Amp | |
| H13182 | 220182 | Nozzle,130Amp | |
| H13354 | 220354 | Nozzle,200Amp | |
| H13439 | 220439 | Nozzle,260Amp | |
| H13646 | 220646 | Nozzle,130Amp(Bevel) | |
| H13542 | 220542 | Nozzle,260Amp(Bevel) | |
| H13632 | 220632 | Nozzle,400/400Amp(Bevel) | |
| H33754 | 220754 | Retaining Cap 30/50Amp | |
| H33176 | 220176 | Retaining Cap 80/130Amp | |
| H33355 | 220355 | Retaining Cap 200Amp | |
| H33433 | 220433 | Retaining Cap 260Amp | |
| H33603 | 220603 | Retaining Cap (Bevel) 130/260Amp | |
| H33756 | 220756 | Retaining Cap 80/130Amp | |
| H33757 | 220757 | Retaining Cap 200Amp | |
| H33760 | 220760 | Retaining Cap 260Amp | |
| H33635 | 220635 | Retaining Cap 400/400Amp(Bevel) | |
| H33740 | 220740 | Retaining Cap (Bevel) 130/260Amp | |
| H23194 | 220194 | Shield,30Amp | |
| H23555 | 220555 | Shield,50Amp | |
| H23189 | 220189 | Shield,80Amp | |
| H23183 | 220183 | Shield,130Amp | |
| H23356 | 220356 | Shield,200Amp | |
| H23440 | 220440 | Shield,260Amp | |
| H23645 | 220645 | Shield,130Amp(Bevel) | |
| H23545 | 220545 | Shield,260Amp(Bevel) | |
| H23761 | 220761 | Shield,200Amp | |
| H23764 | 220764 | Shield,260Amp | |
| H23636 | 220636 | Shield,400/400Amp(Bevel) | |
| H23742 | 220742 | Shield,130Amp(Bevel) | |
| H23741 | 220741 | Shield,260Amp(Bevel) | |
| H43173 | 220173 | Retaining Cap 30/50/80/130Amp | |
| H43398 | 220398 | Retaining Cap 200/260/(Bevel)130/260Amp | |
| H43747 | 220747 | Retaining Cap 30/50/80/130Amp | |
| H43637 | 220637 | Retaining Cap 200/260/400Amp(Bevel) | |
| H83818 | 128818 | HPR torch assembly | |
| H83162 | 220162 | Quick-disconnect torch | |
| H83163 | 220163 | Quick-disconnect recepticle | |
| H83706 | 220706 | Quick-disconnect torch | |
| H83705 | 220705 | Quick-disconnect recepticle | |
| H93571 | 220571 | Water Tube with O-Ring | |
| H93340 | 220340 | Water Tube with O-Ring(30/50/80/130/200/260Amp) | |
| H93700 | 220700 | Bevel water tube(mild steel-130A) |
Technical Support:
Method for prolonging the service life of the plasma wearing parts
apply the splash proof chemical coating on the protective cover
Splash proof chemical coating helps to reduce slag accumulation in the protection cover. But it must be removed from the protective cover on the cutting torch to splash paint coating.
10 remove protective cover on the slag
Frequently clear the torch on the protective cover in slag, otherwise this slag will cause heavy destructive plasma arc".
Discharge of residual gases in advanced torch 11 after the replacement of wearing parts
In replacement of wearing parts for a long time or stop, should discharge torch in the residual gas (2 ~ 3 minutes is appropriate) to ensure that the steam discharged from the torch.
To keep the 12 torch and wearing clean
In the cutting torch and wearing any stolen goods will seriously affect the function of plasma system. Replacement of wearing parts, to put it in a clean flannelette, and should always check the torch connecting thread, with hydrogen peroxide cleaning cleaning of the electrode contact surface and the nozzle.
1. clear air or oxygen nozzle oxides
When the air or oxygen is used as the plasma gas, the oxide is deposited in the nozzle, which can affect the cutting airflow and reduce the life of the wearing parts. Wipe clean with cloth inside the nozzle can eliminate the oxide.
2. using softened water injection (plasma torch with liquid cooling system)
Hard water can cause metal impurities deposited on the nozzle ring, which will affect the cutting air flow, thereby reducing the cutting quality and shorten the service life of wearing parts.
3. check air flow and coolant every day
Damage to the torch of the most common causes of the lack of coolant, which need to regularly check leading to the torch gas flow and pressure (air), check the coolant pressure (liquid), if it is found that the flow is not enough or leak, immediately stop and troubleshooting.
