|Place of Origin:||China|
|Brand Name:||Plasma Consumables|
|Minimum Order Quantity:||5pcs|
|Packaging Details:||Manufacturer packing|
|Delivery Time:||Prompt goods|
|Payment Terms:||T/T or western Union|
|Supply Ability:||10,000pcs per month|
|Product Name:||Plasma Consumables||Application:||Plasma Cutting Machine|
|Standard:||Manufacturer Production Standard||Type:||0558002516|
esab plasma cutter parts,
plasma cutter consumables

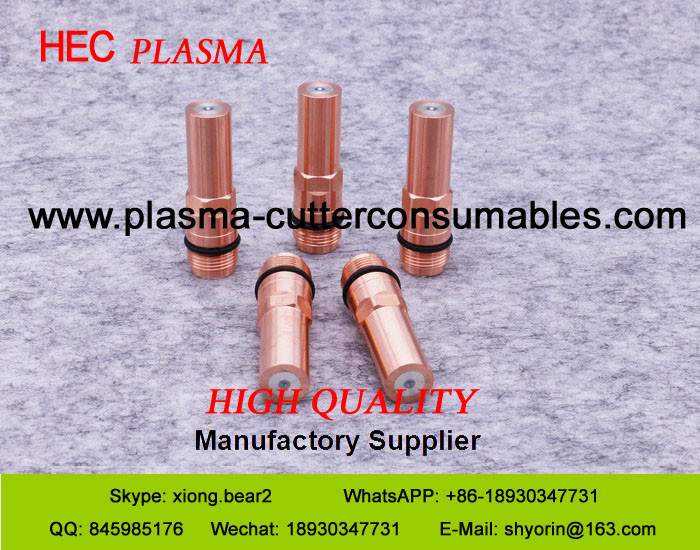

PT600 Electrode 0558002516 , ESAB PT600 Plasma Torch Consumables 0558002516-AG
We are a professional manufacturer of plasma cutter consumables.
If you worry about our products’ quality, I can give you some samples to test by free. Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Shipping and handing
1. DHL is our preferred shipping method. Meanwhile TNT, EMS, Fedex, UPS are available.
2. Make sure to leave telephone number when filling your buyer information.
3.You can check the goods where it is in transit through tracking NO .
1. If you are not satisfied with your purchase, you can echange the items received. you must contact us within 5 days of the receipt
of your order. And you should pay all additional shipping fees incurred and the items returned should be kept in their original
2. If you wish to echange defective or incorrect shipped goods, please contact us within 5 days after receiving the goods.
1. The buyer are responsible for any insurance you think necessary.
2. The processing time for a specific order varies with the product type and stock status. Mostly, processing time can be 3 to 15 working days.
|0004470027(21795)||Shield, 3.0 mm, 35–50 amp|
|0558004678||Shield, 4.1 mm, 200 amp|
|0004470028(21802)||Shield, 6.6 mm, 100–250 amp|
|0004470029 (21945)||Shield, 9.9 mm, 325-600A|
|22026||Nozzle Tip, 50A|
|22029||Nozzle Tip, 100A|
|0004470021 (22030)||Nozzle Tip, 150A|
|0004470022 (22031)||Nozzle Tip, 200A|
|0558007457(22032)||Nozzle Tip, 250A|
|22034||Nozzle Tip, 360A|
|22033||Nozzle Tip, 400A|
|22027||Nozzle Base, 50A|
|22028||Nozzle Base, 100-360A|
|0558001881||Nozzle, 1.0 mm, 50A|
|0558001882||Nozzle, 1.8 mm, 100A|
|0558001883||Nozzle, 2.0 mm, 150–200A|
|0558001884||Nozzle, 2.3 mm, 200A|
|0558001623(21822)||Nozzle, 2.5 mm, 250A|
|0558001885(35885)||Nozzle, 3.0 mm, 360A|
|0558001886(22195)||Nozzle, 3.6 mm, 400A|
|0558001887(22401)||Nozzle, 4.1 mm, 600A|
|Electrode, 50–250A, PT-19XLS|
|Electrode, 360A, PT-19XLS|
|0558001624||Electrode 250A, Copper|
|0558001624-AG||Electrode 250A, SilverEX|
|0558004461||Electrode 250A, SilverEX|
|0558002516||Electrode 360/400A, Copper|
|0558002516-AG||Electrode 360/400A, SilverEX|
|0558004462||Electrode 360/400A, SilverEX|
|0558002499||Electrode 600A, N2/H35|
|21796||Shield Gas Diffuser, 50A|
|0004470031(21944)||Shield Gas Diffuser, 100-600A|
|0004470030(22496)||Shield Gas Diffuser, 100-600A, CCW|
|Gas Baffle, 4 hole × 0,032, CW|
|Gas Baffle, 4 hole × 0,032, CCW|
|Gas Baffle, 8 hole × 0,047, CW|
|Baffle, 8-Hole x 0.047 CCW1|
|Gas baffle, 32 x .023, 400A|
|37081||Shield Retaing Cap|
|37082||Nozzle Retaining Cap|
|37431||Nozzle Retainer, Air Curtain|
Plasma cutting machine matters needing attention
The selection of cutting parameters of CNC plasma cutting machine is very important for cutting quality, cutting speed and efficiency. The correct use of CNC plasma machine for high quality fast cutting, cutting process parameters must be deeply understood and mastered.
First, cutting current: it is the most important cutting process parameters, directly determines the cutting thickness and speed, that is, cutting ability. Effects: 1, cutting current increases, an increase in the energy of the arc, cutting ability, the cutting speed is increased; 2, cutting current increases, increasing the diameter of the arc arc variable rough makes incision width; 3, cutting current ambassador to the nozzle increases the heat load, the nozzle premature damage, cutting quality of the natural decline, can't even normal cut. So the cutting current and the corresponding nozzle should be chosen according to the thickness of the material before cutting.
1, argon at high temperature and almost no reaction to any metal, argon plasma arc is very stable. The nozzle and the electrode used have high service life. But the argon plasma arc voltage is low, the enthalpy value is not high, the cutting ability is limited, and the cutting thickness will be reduced by about 25% compared with the air. In addition, the surface tension of molten metal is larger than that in the environment of nitrogen gas, which is about 30% higher than that in nitrogen gas environment. Even if the use of argon and other gas mixture will have a tendency to stick. Therefore, pure argon plasma cutting has been rarely used alone.
2, hydrogen is often as auxiliary gas and other gas mixing action, such as the famous gas H35 (the volume fraction of hydrogen is 35%, the rest of the argon) is one of the strongest gas plasma arc cutting, the main enrichment in hydrogen. Because the hydrogen can significantly improve the arc voltage, the hydrogen plasma jet has a high enthalpy value, when mixed with argon, the cutting ability of the plasma jet is greatly improved. Generally more than 70mm thickness of metal materials, commonly used argon + hydrogen as a cutting gas. If the water jet is used to further compress the argon + hydrogen plasma arc, the higher cutting efficiency can be obtained.
3, nitrogen is used as a working gas, under the conditions of higher voltage and nitrogen plasma arc has better stability and higher than the argon gas jet power, even if is cutting liquid metal viscosity materials such as stainless steel and nickel base alloy, incision of inferior hanging slag quantity are few. Nitrogen can be used alone, also can use with other gas mixture, such as automatic cutting often use air or nitrogen as the working gas, the gas has become the standard high speed cutting carbon steel gas. Sometimes nitrogen is also used as an arc gas in the plasma arc cutting.
