|Place of Origin:||China|
|Brand Name:||Plasma Consumables|
|Model Number:||.11.841.721.081 T502|
|Minimum Order Quantity:||5pcs|
|Packaging Details:||Manufacturer packing|
|Delivery Time:||Prompt goods|
|Payment Terms:||T/T or western Union|
|Supply Ability:||10,000pcs per month|
|Product Name:||Plasma Consumables||Application:||Plasma Cutting Machine|
|Standard:||Manufacturer Production Standard||Type:||.11.841.721.081 T502|
plasma cutter accessories,
plasma cutting machine parts

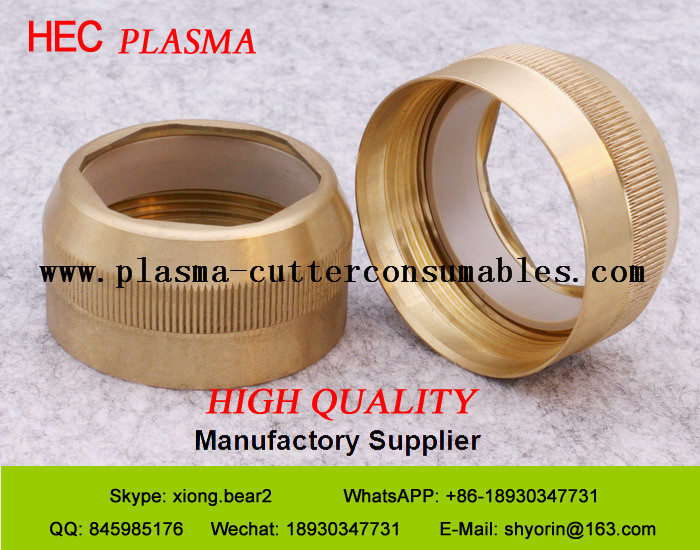

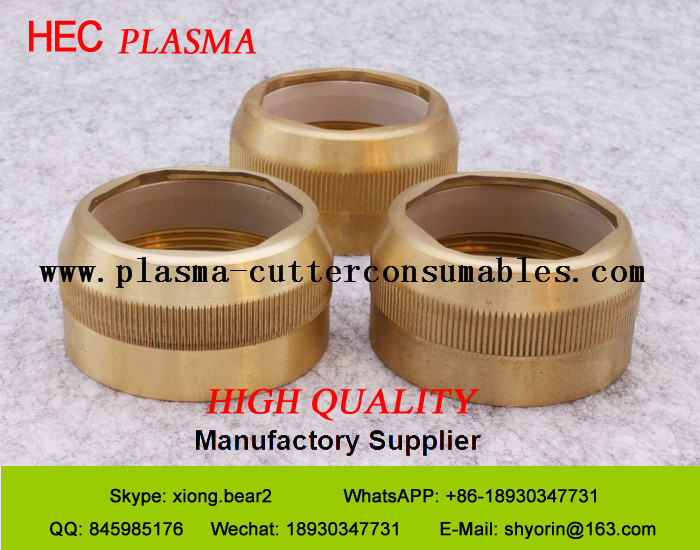

Protection Cap .11.841.721.081 T502 For Kjellberg Plasma Cutter Accessories, Retaining Cap
Shanghai ZhouBo Welding & Cutting Technology company can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.
Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
machine: HT4400, HT4001, HPR400XD, HPR260XD, HPR130XD, HPR260, HPR130, HSD130, HD3070, HD4070, HT2000, MAX200, POWERMAX1650, POWERMAX1250, POWERMAX65, POWERMAX85, POWERMAX45, POWERMAX30 electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
Kjellberg plasma cutting machine:HiFocus80i, HiFocus100i, HiFocus130i, HiFocus160i, HiFocus280i, HiFocus360i, HiFocus440i and so on
Kjellberg machine :PA-S20W, PA-S25W, PA-S40W, PA-S45W, PA-S70W, PA-S75, PB-S45W, PB-S47, PB-S75, PB-S76, PB-S77, PB-S80, Fine Focus450, Fine Focus800, Fine Focus900 electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
|Machine||HEC NO.||Thum NO.||Ref NO.||Description|
|K631730||V4330||11.833.101.1550||Swirl Gas Cap 3.0|
|K631735||V4335||11.833.101.155||Swirl Gas Cap 3.5|
|K631740||V4340||11.833.101.156||Swirl Gas Cap 4.0|
|K631745||V4345||11.833.101.157||Swirl Gas Cap 4.5|
|K631750||V4350||11.833.101.158||Swirl Gas Cap 5.0|
|K631760||V4360||11.833.101.159||Swirl Gas Cap 6.0|
|K631860||V4560||11.833.111.159||Swirl Gas Cap 6.0|
|K42192||T502||11.841.721.081||Protective Cap Percut 370.2|
|K42202||T522||11.836.921.271||Swirl Gas Nozzle PerCut 370.2®|
|K42201||T521||11.836.901.271||Swirl Gas Nozzle PB-S77®/PB-S80®|
|K521230||T3030||11.836.901.163||Nozzle Cap (12x1,5 30°cw)|
|K521245||T3045||11.836.901.164||Nozzle Cap (12x1,5 45°cw)|
|K521345||T3145||11.836.901.1641||Nozzle Cap (12x1,5 45°ccw)|
|K521260||T3060||11.836.901.165||Nozzle Cap (12x1,5 60°cw)|
|K521360||T3160||11.836.901.1651||Nozzle Cap (12x1,5 60°ccw)|
|K12715||T2115Y||11.846.921.415||Nozzle O2 120A|
|K12720||T2120Y||11.846.921.420||Nozzle O2 200A|
|K12725||T2125Y||11.846.921.425||Nozzle O2 250A|
|K12727||T2127Y||11.846.921.427||Nozzle O2 300A|
|K12730||T2130Y||11.846.921.430||Nozzle O2 360A|
|k11025||T2525||.11.836.911.625||Nozzle T2525 ArH2 280A 2.5mm|
|k11027||T2527||.11.836.911.627.||Nozzle T2527 ArH2 360A 2.7mm|
|k1927||T2427||.11.846.911.627||Nozzle T2427 ArH2 360A 2,7mm|
|k1929||T2429||.11.846.911.629||Nozzle T2429 ArH2 440A 2,9mm|
|K7244||T104||11.836.921.1542||Swirl Ring (3x0,4 cw)|
|K7241||T101||11.836.921.153||Swirl Ring (6x0,8 cw)|
|K7251||T111||11.836.921.1531||Swirl Ring (6x0,8 ccw)|
|K7242||T102||11.836.921.154||Swirl Ring (3x0,8cw)|
|K7252||T112||11.836.921.1541||Swirl Ring (3x0,6 ccw)|
|K0122||S042||11.842.411.510||Cathode, HiFinox® (i)|
|K0132||S052||11.842.511.510||Cathode, FineFocus® (i)|
Safety operation procedure for plasma cutting machine
A, the use of the former and the cutting
1 should check and confirm the power supply, air source, water leakage, leakage, leakage, grounding or zero safe and reliable.
2 car, the workpiece should be in the appropriate location, and should be suitable for the workpiece and the cutting of the positive electrode, cutting the work surface should be provided with the dissolution of slag pit.
3 according to the workpiece material, the type and thickness of the selected nozzle diameter, internal shrinkage adjustment cutting power supply, gas flow rate and electrode.
4 automatic cutting trolley should be empty by far, and the selected cutting speed.
5 operators must wear protective masks, gloves, hats, electric membrane anti-dust masks and soundproof earmuffs. Without a protective mirror, the personnel of the plasma arc is strictly prohibited, and the exposed skin is strictly prohibited to be close to the plasma arc.
6 when cutting, the operator should stand on the upper hand. From the lower part of a work bench ventilation, and should reduce the operating table of the open area.
. cutting, when no-load voltage is too high, should be check the electrical grounding, the insulation connected zero and the torch hand, should be working table and the ground insulation, or in the electric control system installation no-load open circuit breaker.
8 high frequency generator shall be provided with shielding, high frequency arc, high frequency circuit should be cut off immediately.
9 the use of thorium and tungsten electrodes shall be in accordance with the provisions of article 12.7.8 of the JGJ33-2001.
Maintenance of plasma cutting machine
1. correct assembly torch
Right, carefully install the torch, ensure all parts with good, to ensure that the gas and the cooling air. Install all of the components on a clean cloth, avoid dirt stuck to components. In the O ring on the appropriate lubrication oil, O ring to change light as the standard, can not be more.
2. consumption of parts in a timely manner before the complete damage
Consumption with completely damaged parts do not change, again because of severe wear of electrode, the nozzle and the vortex ring will have control of the plasma arc, extremely easy to cause the torch of serious damage. So when the first cut in the quality of the cut, it should be timely check the consumption.
3. The connecting thread cleaning torch
In the replacement of expendable thing or daily maintenance inspection, must assure cutting torch, within the thread clean and, if necessary, should be clean or repair connection thread.
