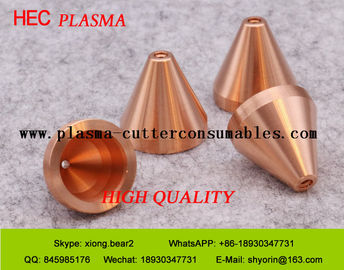

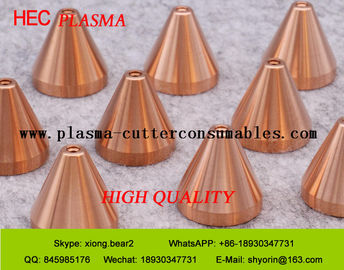

Kjellberg PA-S70W Nozzle .12.43050 L1 For Kjellberg Torch Accessories
Our company adopts modern management mode and devotes itself to new high performance design and production of welding & cutting equipments, with continuous technique advantages innovation .All our staff are striving to realize the aim of "Create Chinese Brand ,Build First-Class Enterprise ",with the spirit of "Being honest and pragmatic ,making pioneering efforts and seeking perfection with persistency."
Company commitment: thinking what customers think, worrying what customers worry, in time delivery and high tracking service.
Electrode: M002, M012, M001, M011, S002Y, S012X, T012Y, S042, S052, G002Y, G032Y, G092Y, G015Y, G071, G052, G042 and so on.
Nozzle: M2006, M2007, M2008, M2009, M2010, M2112, R2007, R2008, R2009, R2010, R2011, R2012, S2006X, S2007X, S2008X, S2009X, S2010X, S2011X, S2012X, S2014X, S2016X, S2514X, S2516X, S2518X, S012X, S2112X, S2114X, S2116X, T2115, T2120, T2125, T2127, T2130, T2523, T2525, T2427, T2429, G2006Y, G2207Y, G2008Y, G2009Y, G2010Y, G2011Y, G2012Y, G2014Y, G2016Y, G2326Y, G2330Y, G2331Y, G2514Y, G2516Y, G2518Y, G2725Y, G2727Y, G2729Y.
Swirl gas cap: V4335, V4330, V4340, V4345, V4350, V4360, V4535, V4540, V4550, V4560, Z4015, Z4020, Z4022, Z4025, Z4030, Z4140, Z4530, Z4535, Z4545, Z4540, R4020, R4022, R4025, R4130, R4140, R4525, R4530, R4540, G4020, G4022, G4025, G4030, G4035, G4040, G4330, G4335, G4340, G4345, G4350, G4355
Nozzle cap: M3004, M3008, M3028, S3004, S3008, S3018, S3028, T3000, T3030, T3045, T3145, T3060, T3160, T3208, T3209, T3219, T3228, R3004, R3008, R3018, R3028, G3004, G3018, G3028
Protection Cap: Z501, T502, T503, V502, T522, G3209, G3219, G3249
Gas guide: Z101, Z102, Z111, Z111A, G101, G102, G121, G125
Water Tube: T901, V931, PB-S75, PB-S46/47, .11.842.601.152, G931
| Machine | HEC NO. | Thum NO. | Ref NO. | Description |
| 1 | K720310 | R012 | 11.842.721.310 | O2 XL R012 (3D) |
| 2 | K710414 | R2114 | 11.842.721.414 | 1.4 R2114 |
| 3 | K730162 | R3008 | 11.842.601.162 | 0.8 R3008 (3D) |
| 4 | K710780 | A1 | .12.37780 | ,A1,120A |
| 5 | K710620 | A3 | .11.828.511.620 | ,A3,180A |
| 6 | K710910 | A2 | .12.40910 | ,A2,250A |
| 7 | K720550 | K5 | .11.828.911.550 | ,K5 |
| 8 | K10L1 | L1 | .12.43050 | |
| 9 | K10L2 | L2 | .12.40850 | |
| 10 | K10L3 | L3 | .11.828.501.414 | |
| 11 | K00K2 | K2 | .12.4087 | |
| 12 | K00K3 | K3-XL | .11.833.121.300-AG | |
| 13 | K730790 | V3000 | .12.37790 | |
| 14 | K750230 | V951 | .11.828.911.230 | V951 |
| 15 | .10.505.908 | O-ring 18.2 X 1.9 VMQ ISO 1629 70SHSW | ||
| 16 | .10.505.923 | O-ring 28 X 2.0 VMQ ISO 1629 70 shore |
Technical Support:
Maintenance of plasma cutting machine
1. correct assembly torch
Right, carefully install the torch, ensure all parts with good, to ensure that the gas and the cooling air. Install all of the components on a clean cloth, avoid dirt stuck to components. In the O ring on the appropriate lubrication oil, O ring to change light as the standard, can not be more.
2. consumption of parts in a timely manner before the complete damage
Consumption with completely damaged parts do not change, again because of severe wear of electrode, the nozzle and the vortex ring will have control of the plasma arc, extremely easy to cause the torch of serious damage. So when the first cut in the quality of the cut, it should be timely check the consumption.
3. The connecting thread cleaning torch
In the replacement of expendable thing or daily maintenance inspection, must assure cutting torch, within the thread clean and, if necessary, should be clean or repair connection thread.
4. the contact surface of the cleaning electrode and nozzle
In a lot of cutting torch, the contact surface of the nozzle and the electrode is charged the contact surface, if the contact surface with dirt, cut the torch can not work normally should be using hydrogen peroxide cleaning cleaning agent.
5. check the gas and cooling gas every day
Check the flow and pressure of the gas and cooling gas flow every day, if the flow is not enough or there is leakage, should stop the line fault immediately.
6. avoid torch collision damage
In order to avoid collision damage to torch should be correctly programming avoid walking overrun system, install anti-collision device can effectively avoid the collision torch damage.
7. The damage reason of the most common torch
(1) the torch collision.
(2) the destructive plasma arc due to the damage of the consumable parts.
(3) dirt caused by the destructive plasma arc.
(4) loose parts caused by destructive plasma arc.
8. matters needing attention
(1) do not grease the cutting torch.
(2) don't over use O - ring lubricant.
(3) in protection to remain on the cutting torch when splash do not spray chemicals.
(4) do not take manual torch when use hammer.
