Kjellberg Plasma Torch Parts Nozzle Cap For FineFocus Plasma

5pcs
MOQ
negotiation
Price

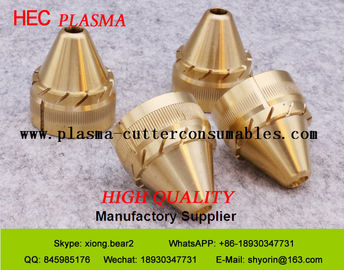

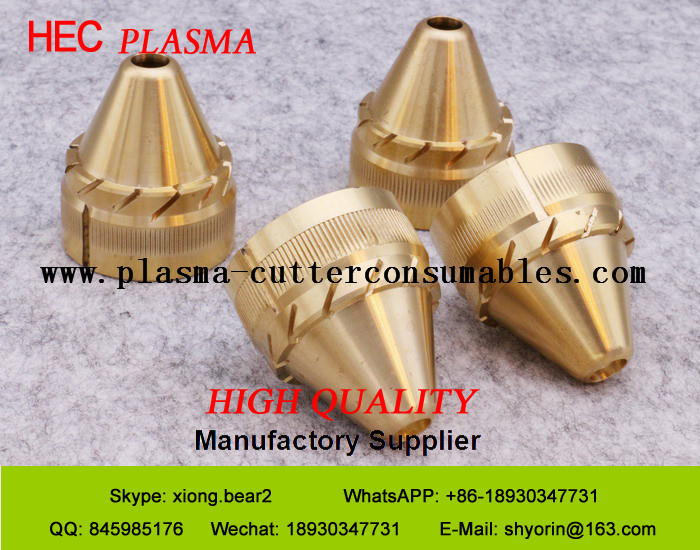

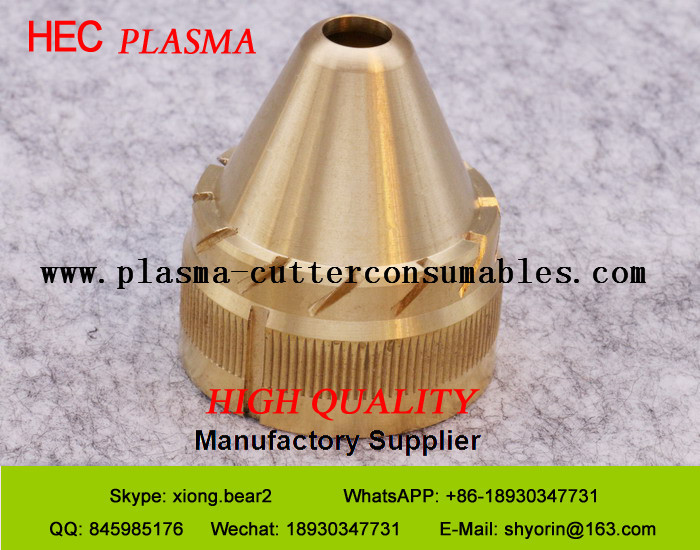

Kjellberg Plasma Torch Parts Nozzle Cap For FineFocus Plasma
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Plasma Consumables
Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard
Type: .11.836.901.160 T3060
High Light:

plasma torch accessories

,

plasma cutting machine parts

Basic Infomation
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: .11.836.901.160 T3060
Payment & Shipping Terms
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Product Description

Kjellberg Plasma Consumables .11.836.901.160 T3060 Nozzle Cap For FineFocus Plasma

We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.
Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
Nozzle: M2006, M2007, M2008, M2009, M2010, M2112, R2007, R2008, R2009, R2010, R2011, R2012, S2006X, S2007X, S2008X, S2009X, S2010X, S2011X, S2012X, S2014X, S2016X, S2514X, S2516X, S2518X, S012X, S2112X, S2114X, S2116X, T2115, T2120, T2125, T2127, T2130, T2523, T2525, T2427, T2429, G2006Y, G2207Y, G2008Y, G2009Y, G2010Y, G2011Y, G2012Y, G2014Y, G2016Y, G2326Y, G2330Y, G2331Y, G2514Y, G2516Y, G2518Y, G2725Y, G2727Y, G2729Y.
Shanghai ZhouBo Welding & Cutting Technology company can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.



MachineHEC NO.Thum NO.Ref NO.Description

























FineFocus 800
FineFocus 900

K631730V433011.833.101.1550Swirl Gas Cap 3.0
K631735V433511.833.101.155Swirl Gas Cap 3.5
K631740V434011.833.101.156Swirl Gas Cap 4.0
K631745V434511.833.101.157Swirl Gas Cap 4.5
K631750V435011.833.101.158Swirl Gas Cap 5.0
K631760V436011.833.101.159Swirl Gas Cap 6.0
K631860V456011.833.111.159Swirl Gas Cap 6.0
K42192T50211.841.721.081Protective Cap Percut 370.2
K42202T52211.836.921.271Swirl Gas Nozzle PerCut 370.2®
K42201T52111.836.901.271Swirl Gas Nozzle PB-S77®/PB-S80®
K521230T303011.836.901.163Nozzle Cap (12x1,5 30°cw)
K521245T304511.836.901.164Nozzle Cap (12x1,5 45°cw)
K521345T314511.836.901.1641Nozzle Cap (12x1,5 45°ccw)
K521260T306011.836.901.165Nozzle Cap (12x1,5 60°cw)
K521360T316011.836.901.1651Nozzle Cap (12x1,5 60°ccw)
K12715T2115Y11.846.921.415Nozzle O2 120A
K12720T2120Y11.846.921.420Nozzle O2 200A
K12725T2125Y11.846.921.425Nozzle O2 250A
K12727T2127Y11.846.921.427Nozzle O2 300A
K12730T2130Y11.846.921.430Nozzle O2 360A
k11025T2525.11.836.911.625Nozzle T2525 ArH2 280A 2.5mm
k11027T2527.11.836.911.627.Nozzle T2527 ArH2 360A 2.7mm
k1927T2427.11.846.911.627Nozzle T2427 ArH2 360A 2,7mm
k1929T2429.11.846.911.629Nozzle T2429 ArH2 440A 2,9mm
K7244T10411.836.921.1542Swirl Ring (3x0,4 cw)
K7241T10111.836.921.153Swirl Ring (6x0,8 cw)
K7251T11111.836.921.1531Swirl Ring (6x0,8 ccw)
K7242T10211.836.921.154Swirl Ring (3x0,8cw)
K7252T11211.836.921.1541Swirl Ring (3x0,6 ccw)
K0212T012Y11.844.921.300-AGSilver Electrode
K0102S002Y11.843.021.320-AGCathode, Ag
K0112S012X11.843.121.310-AGCathode, Ag
K0122S04211.842.411.510Cathode, HiFinox® (i)
K0132S05211.842.511.510Cathode, FineFocus® (i)
K0221T051
K92211T90111.844.901.152Cooling Tube
K93221V95111.828.911.230Cooling Tube

Kjellberg Plasma Torch Parts Nozzle Cap For FineFocus Plasma 0

Technical Support:
plasma cutting machine working principle and cutting range

Plasma cutting machine with compressed air as the working gas, plasma arc of high temperature and high speed as the heat source, will be cutting of the metal local melting (and evaporation), and at the same time high-speed airflow will have metal melting blown away, forming a narrow slit. Plasma cutting machine can be used for stainless steel, aluminum, copper, cast iron, carbon steel and other metal materials cutting. Plasma cutting machine is not only cutting speed, cutting narrow, notch formation, heat affected zone is small, low deformation of the workpiece, easy operation, but also has significant energy saving effect. Plasma cutting machine is suitable for all kinds of machinery, metal structure manufacture, installation and repair work in thin sheet cutting, opening, patching, open groove cutting.
1, cutting current of plasma cutting machine
The current is related to the material and thickness of the cut piece, and the cutting current increases with the increase of the thickness of the cut piece.
2, cutting speed
Cutting speed depends on the material thickness, cutting current. Cutting speed is a serious impact on the quality of the incision, the speed is too fast, plasma arc to melt metal.
3, nozzle height
From the height of the cutting nozzle and cutting structure, 2-4mm metal surface.
4, working gas
Plasma cutting development up to now, the working gas (gas is plasma arc conducting medium, and is carrying heating. At the same time, we should exclude the incision in the molten metal) on plasma arc cutting properties and cutting quality and speed have obvious influence. The common plasma arc working gas is argon, hydrogen, nitrogen, oxygen, air, water vapor and some mixture gases.
5, gas flow
Influence on arc compression level and blowing in addition to the effect of molten metal, the flow is too large, arc and tend to be unstable, flow through the small to blow in the molten metal, and even burn the conductive nozzle.
