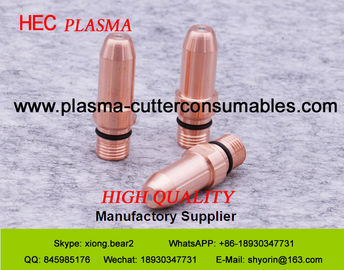

OCP-150 Plasma Torch Body Electrode 0409-1204, 0409-2184, 0409-2185, Plasma Swirl Ring
We are a professional manufacturer of plasma cutter consumables.
1. Can supply various models of plasma Consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
2. Can make as per customer's requirements. Almost Every Parts Have A Lot Of Stock.
3.The strict quality control. Our products processed are using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
4. Welcome to contact us. You Can Send Us E-Mail, Skype, WhatSapp, Wechat or Call us.
5.Outer packing:standard export carton.
6.Have any questions, pls feel free to inform us.
| 0409-2194 | Electrode (W15), N2 Ar/H2 (XF) |
| 0408-1283 | O-Ring ø 8 x 1,25 Nitrile |
| 0409-2209 | Swirl ring (NL), N2 Ar/H2 |
| 0409-2168 | O-Ring ø 10 x 3 Silicone |
| 0409-2231 | Tip 15A (N15), N2 |
| 0409-2233 | Tip 30A (N30), N2 |
| 0409-2234 | Tip 40A (N40), N2 |
| 0409-2236 | Tip 60A (N60), N2 |
| 0409-2239 | Tip 90A (N90), N2 |
| 0409-2240 | Tip 120A (N120), N2 |
| 0409-2249 | Tip 90A (A90), Ar/H2 |
| 0409-2250 | Tip 120A (A120), Ar/H2 |
| 0409-2110 | Nozzle retaining cap N2 Ar/H2 |
| 0409-2187 | O-Ring ø 14 x 1.78 EPDM |
| 0409-2188 | O-Ring ø 37.8 x 1.78 Nitrile |
| 0409-2189 | O-Ring ø 42.5 x 2.62 Nitrile |
| 0408-1238 | O-Ring ø 5,28 x 1,78 Nitrile |
| 0408-1282 | O-Ring ø 36,17 x 2,62 Nitrile |
| 0408-1284 | O-Ring ø 24 x 2 Nitrile |
| 0409-2154 | Diffusor |
| 0409-2184 | Electrode with 1 o-ring, long life – Hf |
| 0408-1283 | O-Ring ø 8 x 1,25 Nitrile |
| 0409-1204 | Electrode long life – HX5 (XF) Air |
| 0409-2185 | Electrode long life – HX5 (XF) O2 |
| 0409-2185 | Electrode long life – HX5 Silver |
| 0409-2170 | Swirl ring OCP VD6 – 60A |
| 0409-2169 | Swirl ring OCP VD15 – 120A |
| 0409-2168 | O-Ring ø 10 x 3 Silicone |
| 0409-2171 | Tip 15A |
| 0409-2173 | Tip 30A |
| 0409-2174 | Tip 40A |
| 0409-2176 | Tip 60A |
| 0409-2183 | Tip 90A |
| 0409-2186 | Tip 120A |
| 0409-1218 | Tip 150A |
| 0409-2166 | Nozzle retaining cap |
| 0409-2167 | O-Ring ø 15×1.78 EPDM |
Plasma cutting machine matters needing attention
Technical Support:
3, nitrogen is used as a working gas, under the conditions of higher voltage and nitrogen plasma arc has better stability and higher than the argon gas jet power, even if is cutting liquid metal viscosity materials such as stainless steel and nickel base alloy, incision of inferior hanging slag quantity are few. Nitrogen can be used alone, also can use with other gas mixture, such as automatic cutting often use air or nitrogen as the working gas, the gas has become the standard high speed cutting carbon steel gas. Sometimes nitrogen is also used as an arc gas in the plasma arc cutting.
4, oxygen can improve the speed of cutting low carbon steel materials. Use oxygen cutting, cutting mode and flame cutting is very similar, the plasma arc of high temperature and high energy of the cutting speed faster, but must with the use of high temperature oxidation resistance of electrode, and the electrode for arc anti impact protection, to prolong the electrode life.
5, an air containing volume fraction of about 78% nitrogen, so use air cutting formed by hanging slag and nitrogen gas cutting is very similar; in the air also contains a volume fraction of about 21% oxygen, because the existence of oxygen, air cutting speed of low carbon steel material is also very high; at the same time the air is the most economical working gas. However, when the air is used to cut, there are problems such as hanging slag and cutting oxidation, increasing nitrogen, and the lower life of electrode and nozzle can also affect the working efficiency and cutting cost.
