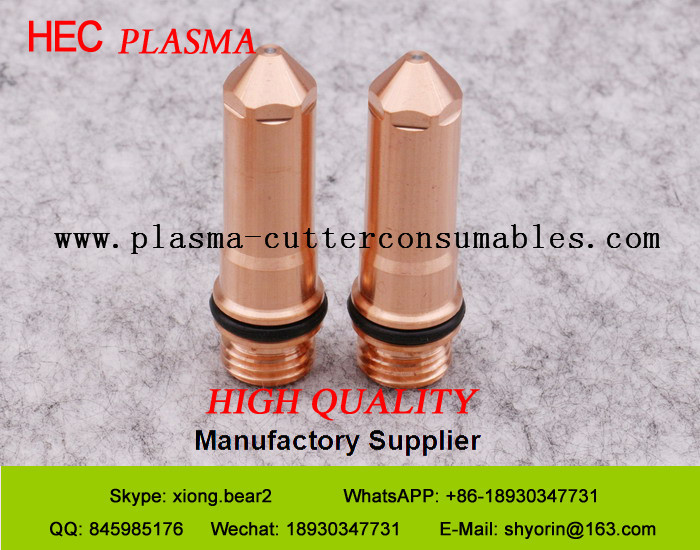

HSD130 Plasma Cutting Electrode 220528 Long Life

HSD130 Plasma Cutting Electrode 220528 Long Life

  •  HSD130 Plasma Cutting Electrode  220528 Long Life
  •  HSD130 Plasma Cutting Electrode  220528 Long Life
 HSD130 Plasma Cutting Electrode  220528 Long Life
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: 220528
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard TypeElectrode 220435: 220528
High Light:

plasma cutting nozzle

,

max 200 parts

HSD130 Electrode 220528, Long life Plasma Electrode



Shanghai ZhouBo Welding & Cutting Technology company are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China ,it was established in 2007,but we had 10 years manufacturing experience in this field, the new factory covers an area of more than 10000 square meters .There are 50-100 workers and 20 research engineers. Our company adopts modern management mode and devotes itself to new high performance design and production of welding & cutting equipments, with continuous technique advantages innovation .All our staff are striving to realize the aim of "Create Chinese Brand ,Build First-Class Enterprise ",with the spirit of "Being honest and pragmatic ,making pioneering efforts and seeking perfection with persistency."

 HSD130 Plasma Cutting Electrode  220528 Long Life 0





Machine HEC NO. Ref NO. Description

















HSD 130

H03528 220528 Electrode,(Air)45/(Oxygen)50Amp
H02487 220487 Electrode,(Air)130/(Oxygen)130Amp
H03415 220415 Electrode,130Amp (N2,H35)
H73529 220529 Swirl Ring,(Air)45/(Oxygen)50Amp
H72488 220488 Swirl Ring,(Air)130/(Oxygen)130Amp
H13525 220525 Nozzle,45Amp (Air)
H13530 220530 Nozzle,50Amp (Oxygen)
H13492 220492 Nozzle,130Amp (Air)
H13489 220489 Nozzle,130Amp (Oxygen)
H13535 220535 Nozzle,130Amp (N2,H35)
H33578 220578 Retaining Cap 45/50/130Amp (Air,Oxygen)
H33534 220534 Retaining Cap 45/130Amp (N2 and F5,H35)
H23532 220532 Shield,(Air)45/(Oxygen)50Amp
H22536 220536 Shield,130Amp (Air)
H22491 220491 Shield,130Amp (Oxygen)
H03415 220415 Electrode,130Amp (N2,H35)
H03535 220535 Nozzle,130Amp (N2,H35)
H33534 220534 Retaining Cap 45/130Amp (N2 and F5,H35)



Technical Support:

4 input AC voltage is too low



Plasma cutting machine using the site has a large power use facilities, cutting machine internal main circuit components, etc., will make the input AC voltage is too low.



The solution is to check whether there is sufficient capacity of the plasma cutting machine access to the power grid, the power line specifications are in line with the requirements. Plasma cutting machine installation location, should be far away from large electrical equipment and often have electrical interference place. The use of the process, to regularly clean the dirt and dust cutting machine components, check the wiring is aging etc..



2, poor contact with the ground



"The ground is essential preparation before cutting work a. Without the use of special grounding tool, workpiece surface insulation and long-term aging serious ground, will cause poor contact with the ground.



Should use special grounding tool, and check whether the insulation effect of the ground contact with the workpiece surface, avoid the aging ground.



3, spark generator can't be broken arc



Plasma cutting machine, first of all to ignite the plasma arc, by the high frequency oscillator excited gas between the electrode and the inner wall of the nozzle, resulting in high-frequency discharge, the gas ionization and the formation of local small arc, the small arc by compressed air, ejected from the nozzle to ignite plasma arc. This is main task spark generator. Under normal circumstances, the spark generator working time is 0.5 ~ 1s, the reason does not automatically break arc is generally offset control circuit board components, discharge electrode gap of the spark generator is not right.
