Plasma Consumables Retaining Cap 220936 For MaxPRO200 Machine

5pcs
MOQ
negotiation
Price
 Plasma Consumables Retaining Cap 220936 For  MaxPRO200 Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Plasma Consumables
Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard
Type: Retaining Cap 220936
High Light:

max 200 parts

,

plasma cutting consumables

Basic Infomation
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: Retaining Cap 220936
Payment & Shipping Terms
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Product Description

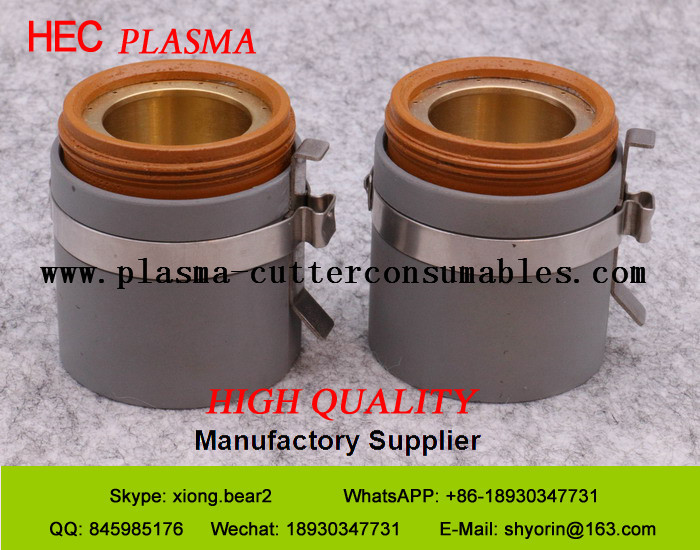

Plasma Consumables Retaining Cap 220936 For MaxPRO200 Machine



Our company produces : plasma machine MaxPro200, HyPro2000, Max200, HT2000 plasma consumables. plasma MaxPro200 plasma cutter consumables. Max200 plasma torch consumables, 200A hyperherm nozzle 420044, 220831 130A hyperherm nozzle 220892, 130A oxygen / air hyperherm nozzle 220893, hyperherm electrode 220937, hyperherm shield 420045, hyperherm swirl ring 2200448, swirl ring 220529



Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on. We have tens years experience to export many countries, and our products is very competitive in the world.


 Plasma Consumables Retaining Cap 220936 For  MaxPRO200 Machine 0





Machine HEC NO. Ref NO. Description

























MAXPRO200

HyPro2000

H02487 220487 Electrode,130Amp
H02937 220937 Electrode,200Amp
H02925 220925 Electrode-AG,200Amp
H72488 220488 Swirl Ring,Air/Air,130/200Amp
H72834 220834 Swirl Ring,Oxygen/Air, 200Amp
H12892 220892 Nozzle,Air/Air,N2/N2, 130Amp
H12893 220893 Nozzle,Oxygen/Air,130Amp
H12044 420044 Nozzle,Air/Air,N2/N2, 200Amp
H12831 220831 Nozzle,Oxygen/Air,200Amp
H42935 220935 Retaining Cap,50/130/200Amp
H42936 220936 Retaining Cap ,50/130/200Amp
H22536 220536 Nozzle,Air/Air,N2/N2, 130Amp
H22491 220491 Nozzle,Oxygen/Air,130Amp
H22045 420045 Nozzle,Air/Air,N2/N2, 200Amp
H22832 220832 Nozzle,Oxygen/Air,200Amp
H82087 420087 Torch body
H82033 420033 Quick-Torch body
H82913 220913 Quick-disconnect receptacle
H82921 220921 Quick-Torch body
H92521 220521 Water tube, Standard
H92026 044026 O-Ring













Technical Support:





plasma cutting machine working principle and cutting range



Plasma cutting machine with compressed air as the working gas, plasma arc of high temperature and high speed as the heat source, will be cutting of the metal local melting (and evaporation), and at the same time high-speed airflow will have metal melting blown away, forming a narrow slit. Plasma cutting machine can be used for stainless steel, aluminum, copper, cast iron, carbon steel and other metal materials cutting. Plasma cutting machine is not only cutting speed, cutting narrow, notch formation, heat affected zone is small, low deformation of the workpiece, easy operation, but also has significant energy saving effect. Plasma cutting machine is suitable for all kinds of machinery, metal structure manufacture, installation and repair work in thin sheet cutting, opening, patching, open groove cutting.



(1) cutting current of plasma cutting machine



The current is related to the material and thickness of the cut piece, and the cutting current increases with the increase of the thickness of the cut piece.



(2) cutting speed



Cutting speed depends on the material thickness, cutting current. Cutting speed is a serious impact on the quality of the incision, the speed is too fast, plasma arc to melt metal.



(3) nozzle height



From the height of the cutting nozzle and cutting structure, 2-4mm metal surface.



(4) working gas



Plasma cutting development up to now, the working gas (gas is plasma arc conducting medium, and is carrying heating. At the same time, we should exclude the incision in the molten metal) on plasma arc cutting properties and cutting quality and speed have obvious influence. The common plasma arc working gas is argon, hydrogen, nitrogen, oxygen, air, water vapor and some mixture gases.



(5) gas flow



Influence on arc compression level and blowing in addition to the effect of molten metal, the flow is too large, arc and tend to be unstable, flow through the small to blow in the molten metal, and even burn the conductive nozzle.



Cutting gun:



1) plasma generator, conductive nozzle, conductive electrode, gas distributor, ceramic, nozzle.



2) cutting gas air plasma arc cutting using compressed air as cutting gas.



3) selection specification including cutting current, cutting speed, gas flow rate and parameters.



The stability of plasma arc cutting machine has a direct impact on the quality of cutting. Plasma arc unstable phenomenon, will lead to uneven wound, and the accumulation of tumor and other defects, but also lead to the control system related components life is reduced, the nozzle, the electrode frequent replacement.
