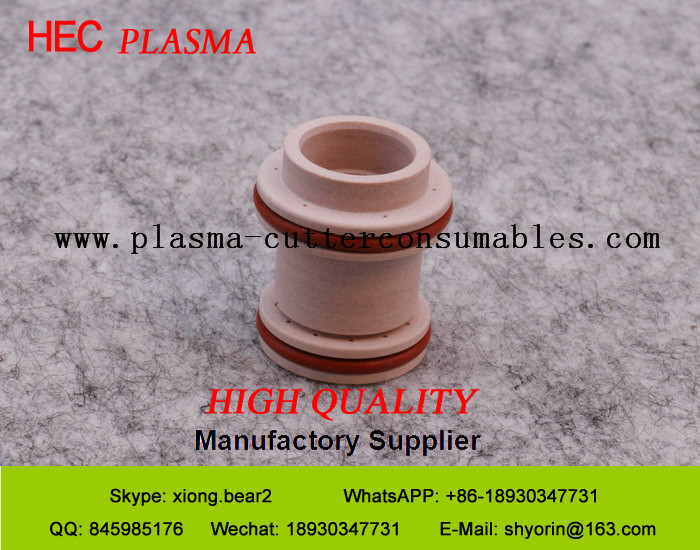

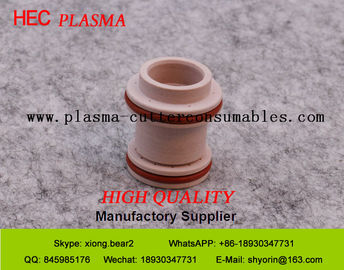

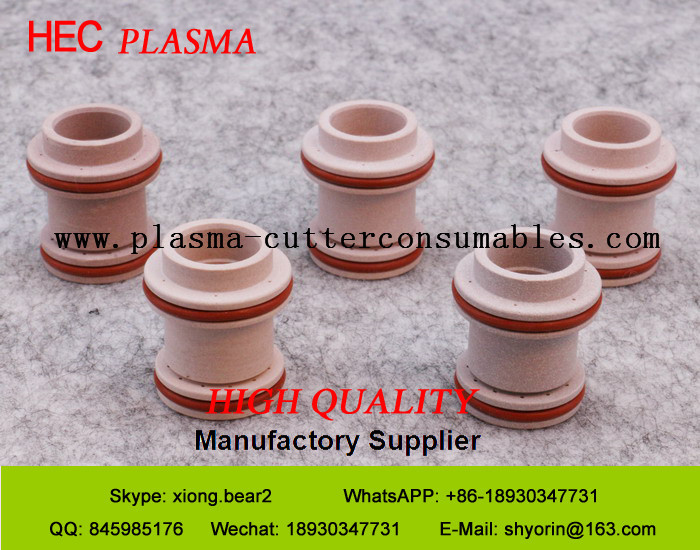

Plasma Consumables Plasma Cutter Swirl Ring 120939

Plasma Cutter Swirl Ring 120939, Plasma Cutting Machine Swril Ring

Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
We can supply Hyperherm plasma cutter nozzle 120934, plasma cutting nozzle 120935 CCW, 300A nozzle 120794, 300A CCW nozzle 120795, 200A nozzle 120787, 200A CCW nozzle 120788, 100A nozzle 120777, 100A CCW nozzle 120778, hyperherm electrode 120810, plasma cutter tips 120802, 200A electrode 120793, 100A electrode 120785, hyperherm HT4400 400A swirl ring 120939, 400A CCW swirl ring 120940, 300A swirl ring 120913, 300A CCW swirl ring 120914, 200A swirl ring 120791, 200A CCW swirl ring 120792, plasma cutter water tube 120025. plasma retaining cap 120786, plasma Cutting machine HT4400 accessories, plasma consumables. plasma HT4400 plasma cutting accessories, HT4400 plasma torch parts.
Each of our products has been tested with a rigorous precision instrument, A large number of piercings tests and service life tests, And made batch trial in our customers. If all results are good, then we will producing them.









Technical Support:
Anti interference of plasma power supply

The main interference source of the plasma numerical control system is the power supply part. It usually adopts the high frequency ignition device is used to ignite the arc, high frequency transformer secondary side voltage up to 3000 - 6000V, pulse frequency of 100 Hz, radiated interference and the grid pollution (interference) are very strong, and high current AC / DC contactors and relays off fault on the grid will cause surge. Usually the plasma cutting machine arc caused by the computer's internal chaos, can not be normal cutting, the first CNC cutting machine and even require the user to start arc and then start the computer, running the CNC system program. This not only makes the complicated operation, the computer is not fully utilized, but also seriously affect the life of the computer, so the suppression of plasma power interference, reduce the pollution to the power network is the primary problem, specific measures:

(1) is to increase the high frequency arc shield, reduce high-frequency radiation;

(2) improvement of control system of plasma power.

Plasma cutting machine of the control power supply of 220V directly quoted from the grid voltage, / arc arc line directly from the cutting machine leads to numerical control electrical cabinet, and during CNC power system together, so that the plasma / arc caused by the high frequency interference and electromagnetic interference caused by high current directly on into the grid. Measures the voltage of 220V control line increased isolation transformer. At the same time / destroy arc control signal through the relay isolation is relative weak AC 24V control line into the numerical control electrical cabinet.

(3) other wiring anti-interference measures

Main transformer primary side and secondary side increased RC absorption circuit and a varistor, the contactor and the relay coil is connected in parallel with resistance capacitance circuit, the DC part set a high frequency bypass capacitor, the purpose of all these measures is suppressing the interference source and reduce the pollution to the grid voltage.
