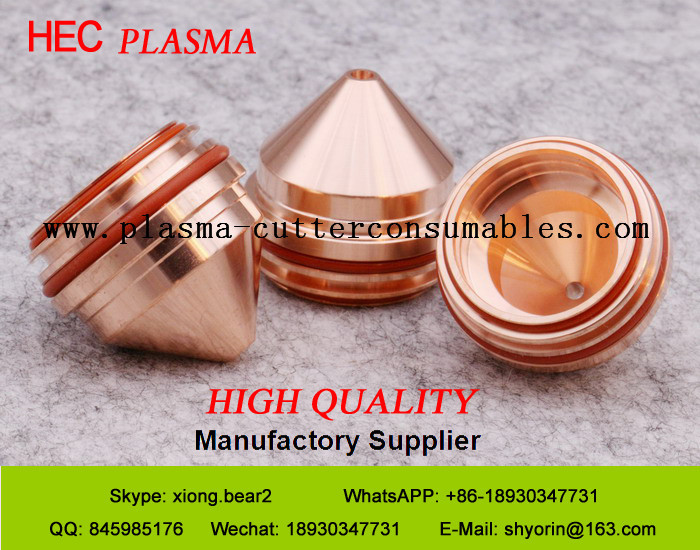

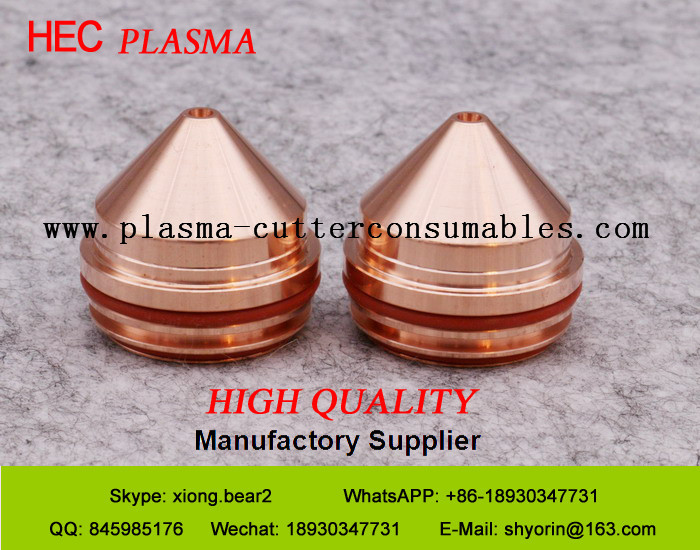

Nozzle 420044 For Max 200 Consumables / plasma cutter nozzle

Nozzle 420044 For Max 200 Consumables / plasma cutter nozzle

  • Nozzle 420044 For  Max 200 Consumables / plasma cutter nozzle
  • Nozzle 420044 For  Max 200 Consumables / plasma cutter nozzle
Nozzle 420044 For  Max 200 Consumables / plasma cutter nozzle
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: Nozzle 420044
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: Nozzle 420044
High Light:

plasma cutting nozzle


max 200 parts

Nozzle 420044 For MaxPRO200 Plasma Torch Consumables



We can supply various models of plasma Consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body, such as HT4400, HPR400XD, HPR260XD, HPR130XD, HPR260, HPR130, HSD130, HD3070, HD4070, HT2000, MAX200, POWERMAX1650, POWERMAX1250, POWERMAX65, POWERMAX85, POWERMAX45, POWERMAX30 and so on.


Nozzle 420044 For  Max 200 Consumables / plasma cutter nozzle 0


Machine HEC NO. Ref NO. Description















H02487 220487 Electrode,130Amp
H02937 220937 Electrode,200Amp
H02925 220925 Electrode-AG,200Amp
H72488 220488 Swirl Ring,Air/Air,130/200Amp
H72834 220834 Swirl Ring,Oxygen/Air, 200Amp
H12892 220892 Nozzle,Air/Air,N2/N2, 130Amp
H12893 220893 Nozzle,Oxygen/Air,130Amp
H12044 420044 Nozzle,Air/Air,N2/N2, 200Amp
H12831 220831 Nozzle,Oxygen/Air,200Amp
H42935 220935 Retaining Cap,50/130/200Amp
H42936 220936 Retaining Cap ,50/130/200Amp
H22536 220536 Nozzle,Air/Air,N2/N2, 130Amp
H22491 220491 Nozzle,Oxygen/Air,130Amp
H22045 420045 Nozzle,Air/Air,N2/N2, 200Amp
H22832 220832 Nozzle,Oxygen/Air,200Amp
H82087 420087 Torch body
H82033 420033 Quick-Torch body
H82913 220913 Quick-disconnect receptacle
H82921 220921 Quick-Torch body
H92521 220521 Water tube, Standard
H92026 044026 O-Ring


Nozzle 420044 For  Max 200 Consumables / plasma cutter nozzle 1





Technical Support:



1, plasma cutting technology


Plasma cutting is the use of high temperature plasma arc heat to make the metal part of the incision at the local melting (and evaporation), and by the momentum of the high-speed plasma to remove molten metal to form a processing method of incision.


2, plasma cutting and flame gas cutting


Plasma cutting can only be effective as a conductor of metal - low carbon steel, aluminum and stainless steel are typical examples. In cutting low carbon steel, the operator will experience a higher speed, deeper cutting effect.

Flame gas is cut through combustion at high temperature, or by oxidation and cutting of metal. Therefore, the scope of its application is limited to the steel of this type can be used in the processing of black metal oxide technology. Metals like aluminum and stainless steel will generate oxide bound further oxidation. This makes the traditional flame gas cutting is impossible to deal with this kind of material. Plasma cutting, and is not dependent on oxidation treatment, so it can effectively cut aluminum, steel, and other conductive metal.

And different kinds of gas can be used in plasma cutting, the majority of people are using compressed air to carry out plasma cutting. Air compressors are available in most cities, and therefore, plasma cutting does not require a combustible gas or a compressed oxygen and other gases as operating gases.
