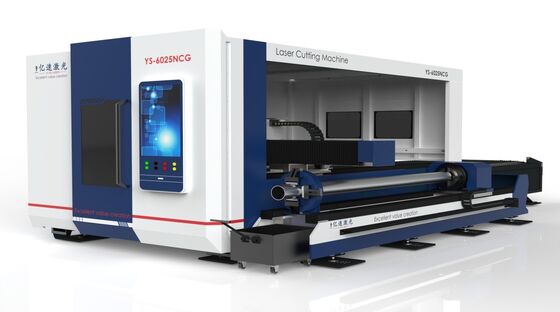

Integrated Fiber Laser Cutting Machine With Large-scale Exchange Table And Surrounding Tube Plate

 ● The all-round exchange table tube plate integrated machine, with a dual-system configuration in one machine, can process both plates and tubes simultaneously, meeting the diverse processing needs of customers. The exchange table structure can enhance the efficiency of loading and unloading materials. The all-round appearance is high-end and elegant, and it can also improve the processing environment on site.

It adopts a steel plate welded bed, equipped with HIWIN P-level linear guides, an integrated crossbeam, precision helical gear ground rack and helical gear planetary reducer, ensuring high dynamic response and stable cutting accuracy of the machine.

  ■ Specifications

■ Machine Tool Configuration

● Configure the operating systems of fiber laser cutting machines such as those from Bochu and Jiaqiang.

● Configure fiber lasers of brands such as Raycus, Maxphotonics…

● Configure fiber laser cutting heads of brands such as

● Equipped with P-level precision linear guides from Taiwan's HIWIN and TBI.

● Equipped with a precision helical

● Equipped with Taiwan precision helical

● The entire series is equipped with a steel plate welded bed, which has undergone vibration stress relief treatment to eliminate internal stress, ensuring stable precision and no deformation during user operation. Finite element analysis (FEM) is applied to optimize the shape and position of the reinforcing ribs of the casting, achieving the optimal strength of the bed.

● Equipped with a brand industrial constant-temperature chiller with an air conditioning compressor.

● Equipped with an advanced integrated industrial controller, which operates smoothly without any lag. It is dust-proof, water-proof and has an attractive appearance.
