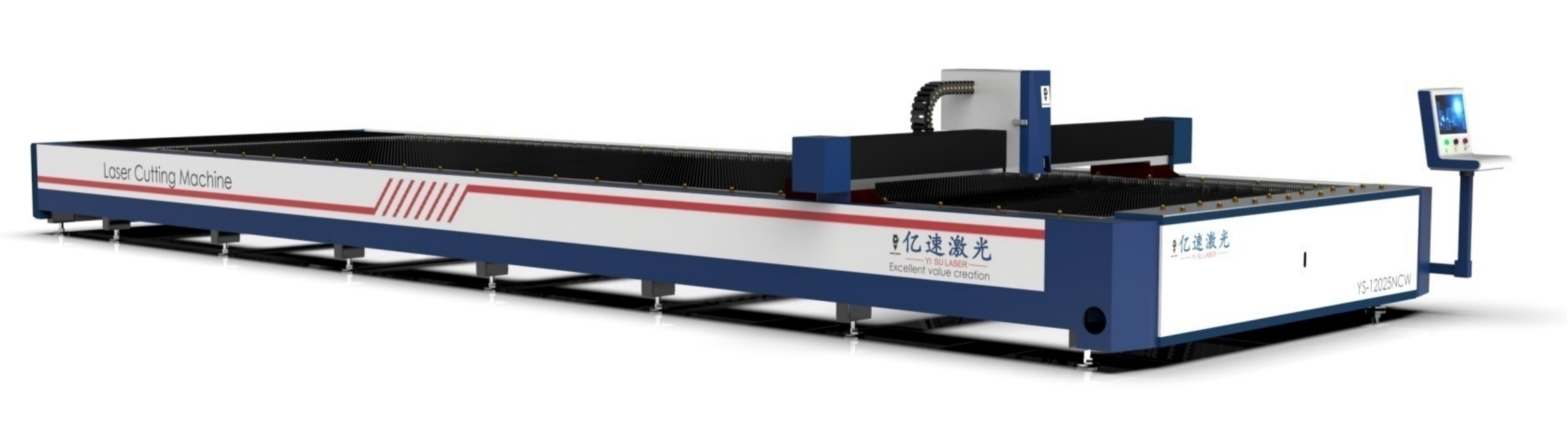

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting

1 set
MOQ
CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,Plastic,Plexiglax,Plywood,Wood
Application: Laser Cutting
Standard Output Power: 500W
Working Speed: Depend On Material
Cutter Thickness: 2mm
Laser Source: Raycus MAX IPG NLIGHT Laser Source
Rail: Taiwan Square Rail
Pipes Cutting Range: 20-130mmx3000mm
Key Selling Points: Automatic
Standard: CE / ISO
Function: Battery Shell Cutting
Application: Cutting For Metal Sheet
Beam Quality: <0.373mrad
Repeating Precision: ±0.01mm
Worktable Size: 3000*1500mm
Cuttingthickness: 0.5-20mm
Output Power: 3000W
Control Software: Fast CAM
After-sales Service: Engineers Available Oversea
Power Supply: 380V 50HZ
Highlight:

Large Format Laser Cutting Machine

,

CNC Large Format Laser Cutting Machine

,

CNC Laser Cutting Machine

Basic Infomation
Place of Origin: China
Certification: CE, ISO
Payment & Shipping Terms
Packaging Details: standard wood case
Delivery Time: Within 20 days
Payment Terms: L/C, T/T
Supply Ability: one set per month
Product Description

  The machine adopts a welded steel plate bed, equipped with P-level linear guides from HIWIN, an integrated crossbeam, precision helical gear ground racks and helical gear planetary reducers, ensuring high dynamic response and stable cutting accuracy of the machine.

  Specifications

Specification
YS-8025NCW
YS-10025NCW
YS-13025NCW
YS-13031NCW
YS-14031NCW
Sheet size (mm)
8000x2500
10000x2500
13000x2500
13000x3100
14000x3100
X-axis travel (mm)
8050
10050
13050
13050
14050
Y-axis travel (mm)
2530
2530
2530
3130
3130
Z-axis travel (mm)
120
120
120
120
120
Laser power (W)
6000-12000
12000-40000
12000-40000
12000-40000
12000-40000
Max. speed (m/min)
80-120
80-120
80-120
80-120
80-120
Max. acceleration (G)
1.0-1.5
1.0-1.5
1.0-1.5
1.0-1.5
1.0-1.5
Positioning accuracy (mm)
±0.03
±0.03
±0.03
±0.03
±0.03
Rep. positioning accuracy (mm)
±0.02
±0.02
±0.02
±0.02
±0.02



Machine Tool Configuration

Configure the operating systems of fiber laser cutting machines such as those from Bochu and Jiaqiang.

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 0

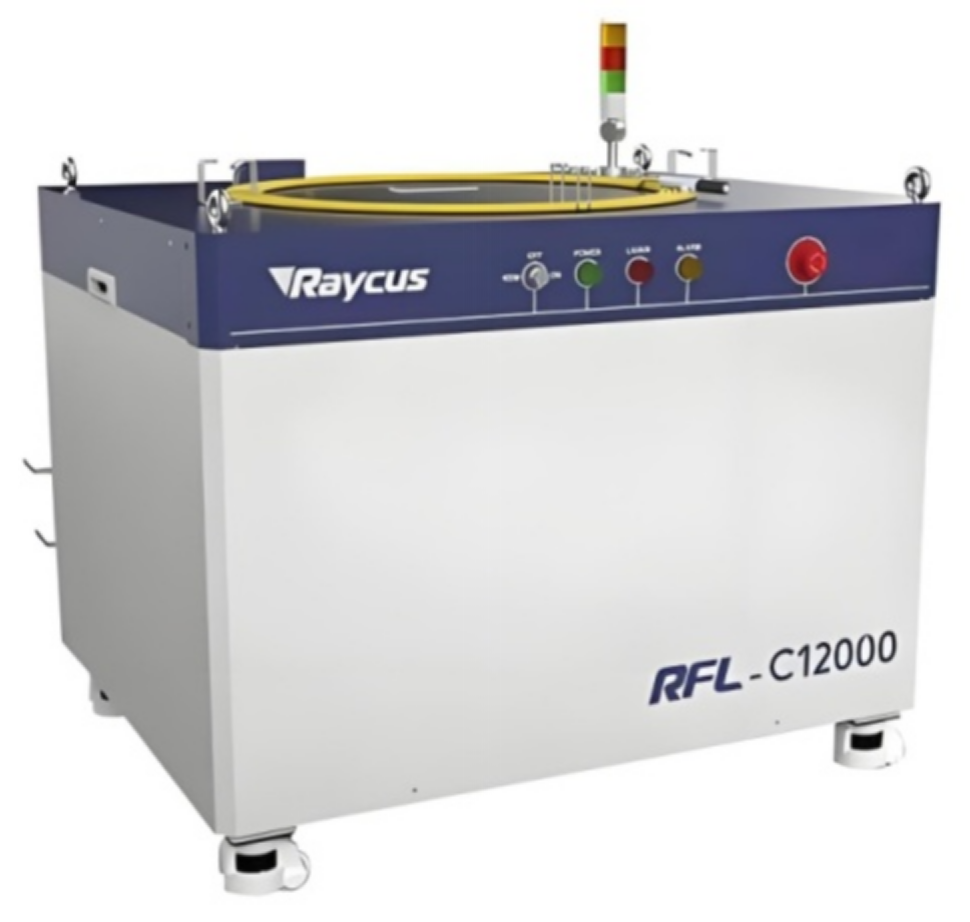

● Configure fiber lasers of brands such as Raycus, Maxphotonics

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 1

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 2

● Configure fiber laser cutting heads of brands such as


CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 3

● Equipped with P-level precision linear guides from Taiwan's HIWIN and TBI.

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 4

● Equipped with a precision helical

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 5

● Equipped with Taiwan precision helical

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 6

The entire series is equipped with a steel plate welded bed, which has undergone vibration stress relief treatment to eliminate internal stress, ensuring stable precision and no deformation during user operation. Finite element analysis (FEM) is applied to optimize the shape and position of the reinforcing ribs of the casting, achieving the optimal strength of the bed.

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 7

● Equipped with a brand industrial constant-temperature chiller with an air conditioning compressor.

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 8

● Equipped with an advanced integrated industrial controller, which operates smoothly without any lag. It is dust-proof, water-proof and has an attractive appearance.

CNC Large Format Laser Cutting Machine For Precise Acrylic Material Cutting 9
