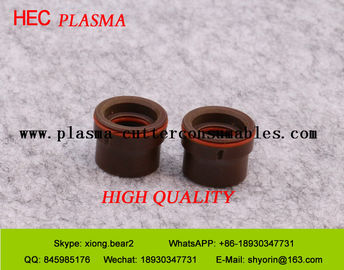

Kjellberg Plasma Consumables .11.848.221.145 G101 For Plasma Cutting Swirl Ring

Kjellberg Plasma Consumables .11.848.221.145 G101 For Plasma Cutting Swirl Ring

  • Kjellberg Plasma Consumables .11.848.221.145 G101 For Plasma Cutting Swirl Ring
  • Kjellberg Plasma Consumables .11.848.221.145 G101 For Plasma Cutting Swirl Ring
Kjellberg Plasma Consumables .11.848.221.145 G101 For Plasma Cutting Swirl Ring
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: .11.848.221.145 G101
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: .11.848.221.145 G101
High Light:

plasma cutting machine parts

,

plasma torch parts

Kjellberg Hifocus Plasma Gas Guide .11.848.221.145 G101 For Plasma Cutting Swirl Ring

Shanghai ZhouBo Welding & Cutting Technology company are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China ,it was established in 2007,but we had 10 years manufacturing experience in this field, the new factory covers an area of more than 10000 square meters .There are 50-100 workers and 20 research engineers.
Swirl gas cap: V4335, V4330, V4340, V4345, V4350, V4360, V4535, V4540, V4550, V4560, Z4015, Z4020, Z4022, Z4025, Z4030, Z4140, Z4530, Z4535, Z4545, Z4540, R4020, R4022, R4025, R4130, R4140, R4525, R4530, R4540, G4020, G4022, G4025, G4030, G4035, G4040, G4330, G4335, G4340, G4345, G4350, G4355
Nozzle cap: M3004, M3008, M3028, S3004, S3008, S3018, S3028, T3000, T3030, T3045, T3145, T3060, T3160, T3208, T3209, T3219, T3228, R3004, R3008, R3018, R3028, G3004, G3018, G3028
Protection Cap: Z501, T502, T503, V502, T522, G3209, G3219, G3249
Gas guide: Z101, Z102, Z111, Z111A, G101, G102, G121, G125
Water Tube: T901, V931, PB-S75, PB-S46/47, .11.842.601.152, G931


MachineHEC NO.Thum NO.Ref NO.Description


























FineFocus 800
FineFocus 900

K631730V433011.833.101.1550Swirl Gas Cap 3.0
K631735V433511.833.101.155Swirl Gas Cap 3.5
K631740V434011.833.101.156Swirl Gas Cap 4.0
K631745V434511.833.101.157Swirl Gas Cap 4.5
K631750V435011.833.101.158Swirl Gas Cap 5.0
K631760V436011.833.101.159Swirl Gas Cap 6.0
K631860V456011.833.111.159Swirl Gas Cap 6.0
K42192T50211.841.721.081Protective Cap Percut 370.2
K42202T52211.836.921.271Swirl Gas Nozzle PerCut 370.2®
K42201T52111.836.901.271Swirl Gas Nozzle PB-S77®/PB-S80®
K521230T303011.836.901.163Nozzle Cap (12x1,5 30°cw)
K521245T304511.836.901.164Nozzle Cap (12x1,5 45°cw)
K521345T314511.836.901.1641Nozzle Cap (12x1,5 45°ccw)
K521260T306011.836.901.165Nozzle Cap (12x1,5 60°cw)
K521360T316011.836.901.1651Nozzle Cap (12x1,5 60°ccw)
K12715T2115Y11.846.921.415Nozzle O2 120A
K12720T2120Y11.846.921.420Nozzle O2 200A
K12725T2125Y11.846.921.425Nozzle O2 250A
K12727T2127Y11.846.921.427Nozzle O2 300A
K12730T2130Y11.846.921.430Nozzle O2 360A
k11025T2525.11.836.911.625Nozzle T2525 ArH2 280A 2.5mm
k11027T2527.11.836.911.627.Nozzle T2527 ArH2 360A 2.7mm
k1927T2427.11.846.911.627Nozzle T2427 ArH2 360A 2,7mm
k1929T2429.11.846.911.629Nozzle T2429 ArH2 440A 2,9mm
K7244T10411.836.921.1542Swirl Ring (3x0,4 cw)
K7241T10111.836.921.153Swirl Ring (6x0,8 cw)
K7251T11111.836.921.1531Swirl Ring (6x0,8 ccw)
K7242T10211.836.921.154Swirl Ring (3x0,8cw)
K7252T11211.836.921.1541Swirl Ring (3x0,6 ccw)
K0212T012Y11.844.921.300-AGSilver Electrode
K0102S002Y11.843.021.320-AGCathode, Ag
K0112S012X11.843.121.310-AGCathode, Ag
K0122S04211.842.411.510Cathode, HiFinox® (i)
K0132S05211.842.511.510Cathode, FineFocus® (i)
K0221T051.11.836.911.500
K92211T90111.844.901.152Cooling Tube
K93221V95111.828.911.230Cooling Tube



Technical Support:
Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut by this process include steel, aluminum, brass and copper though other conductive metals may be cut as well. Plasma cutting is often used in fabrication and welding shops, automotive repair and restoration, industrial construction, salvage and scrapping operations. Due to the high speed, precision cuts, combined with low cost of operation, plasma cutting sees a widespread usage from large scale industrial CNC applications down to small hobbyist shops.

Process:
The basic plasma cutting process involves creating an electrical channel of ionized gas i.e. plasma from the plasma cutter itself, through the work piece to be cut, thus forming a completed electric circuit back to the plasma cutter via a grounding clamp. This is accomplished by a compressed gas (oxygen, air, inert and others depending on material being cut) which is blown through a focused nozzle at high speed toward the work piece. An electrical arc is then formed within the gas, between an electrode near or integrated into the gas nozzle and the work piece itself. The electrical arc ionizes some of the gas, thereby creating an electrically conductive channel of plasma. As electricity from the cutter torch travels down this plasma it delivers sufficient heat to melt through the work piece. At the same time, much of the high velocity plasma and compressed gas blow the hot molten metal away, thereby separating i.e. cutting through the work piece.
Plasma cutting is an effective means of cutting thin and thick materials alike. Hand-held torches can usually cut up to38mm thick steel plate, and stronger computer-controlled torches can cut steel up to 150 mm thick.[1] Since plasma cutters produce a very hot and very localized "cone" to cut with, they are extremely useful for cutting sheet metal in curved or angled shapes.
