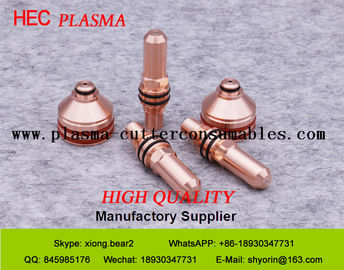

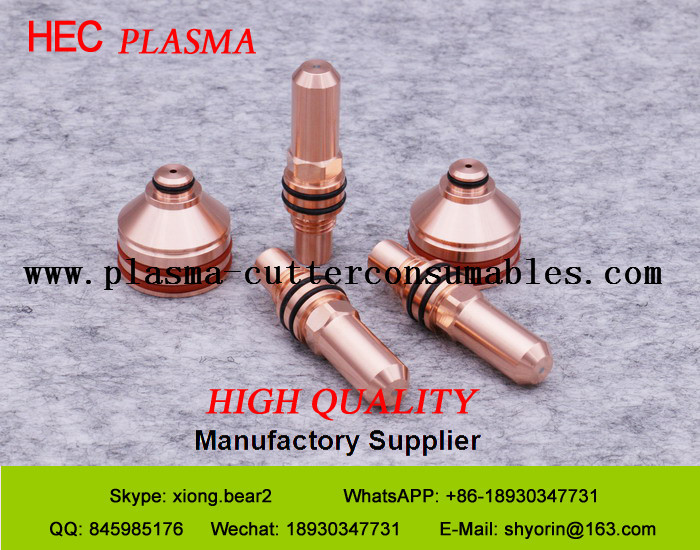

Kaliburn Plasma Electrode 277282 For Spirit 150A Plasma Cutting Machine accesssories
We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, Kaliburn such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
FAQ:
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples but you need bear the express cost by yourself.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
1. HEC Brand
We make metal cutting system and plasma cutter as well as torch and consumables. We make plasma cutting machine and fiber laser cutting machine with high quality and reliablity.
2. Cut Performance
HEC plasma consumables use high quality material and standard process to make sure the highest quality. Our consumables cutting performance is as the same as orginial OEM manufactory.
3. Good Price
HEC plasma consumables are good quality with low price make customers best requirement and saving money.
4. Big Catagory
HEC sell all kinds of plasma consumables include , EASB, Kjellberg, Koike and also supply some torch.
| Machine | HEC NO. | Ref NO. | Description |
| Spirit 150A | HEC277130 | 277130 | Electrode 30A |
| HEC277137 | 277137 | Electrode 30/50A SS (Air) | |
| HEC277131 | 277131 | Electrode 50/70A | |
| HEC277131-L | 277131-L | Electrode Long-life | |
| HEC277132 | 277132 | Electrode 70A Stainless (H17) | |
| HEC277282 | 277282 | Electrode 100A | |
| HEC277282-L | 277282-L | Electrode Long-life | |
| HEC277133 | 277133 | Electrode 100A Stainless (H17) | |
| HEC277292 | 277292 | Electrode 150A | |
| HEC277292-L | 277292-L | Electrode Long-life | |
| HEC277135 | 277135 | Electrode 150/200/260A Stainless (H17) | |
| HEC277291 | 277291 | Electrode 200A | |
| HEC277291-L | 277291-L | Electrode Long-life | |
| HEC277270 | 277270 | Electrode 275A | |
| HEC277270-L | 277270-L | Electrode Long-life | |
| HEC277120 | 277120 | Nozzle 30AMild Steel | |
| HEC277121 | 277121 | Nozzle 30AStainless (Air) | |
| HEC277122 | 277122 | Nozzle 50AMild Steel | |
| HEC277123 | 277123 | Nozzle 50AStainless (Air) | |
| HEC277124 | 277124 | Nozzle 70AStainless (H17) | |
| HEC277125 | 277125 | Nozzle 70A | |
| HEC277126 | 277126 | Nozzle 100AStainless (H17) | |
| HEC277284 | 277284 | Nozzle 100A | |
| HEC277293 | 277293 | Nozzle 150A | |
| HEC277297 | 277297 | Nozzle 150AStainless (H17) | |
| HEC277289 | 277289 | Nozzle 200A | |
| HEC277269 | 277269 | Nozzle 275A | |
| HEC277145 | 277145 | Shield Cap 30A | |
| HEC277144 | 277144 | Shield Cap 30AStainless (Air) | |
| HEC277115 | 277115 | Shield Cap 50AMild Steel | |
| HEC277149 | 277149 | Shield Cap 50AStainless (Air) | |
| HEC277150 | 277150 | Shield Cap 70A | |
| HEC277286 | 277286 | Shield Cap 100A | |
| HEC277146 | 277146 | Shield Cap 100AStainless (H17) | |
| HEC277117 | 277117 | Shield Cap 150A | |
| HEC277298 | 277298 | Shield Cap 150AStainless (H17) | |
| HEC277274 | 277274 | Shield Cap 200A | |
| HEC277263 | 277263 | Shield Cap 2750A | |
| HEC277110 | 277110 | Inner Retaining Cap 30/50A Stainless (Air) | |
| HEC277113 | 277113 | Inner Retaining Cap 70A/100A Stainless (H17) | |
| HEC277151 | 277151 | Retaining Cap 100/150A | |
| HEC277152 | 277152 | Retaining Cap 150A | |
| HEC277153 | 277153 | Inner Retaining Cap 30/50/70A Mild Steel | |
| HEC277266 | 277266 | Retaining Cap 200/275A | |
| HEC277154 | 277154 | Outer Retaining Cap | |
| HEC277258 | 277258 | Swirl Ring | |
| HEC277140 | 277140 | Swirl Ring 30/50A Mild Steel | |
| HEC277138 | 277138 | Swirl Ring 30AStainless (Air) | |
| HEC277142 | 277142 | Swirl Ring 50/70A Mild Steel | |
| HEC277283 | 277283 | Swirl Ring 100AMild Steel | |
| HEC277141 | 277141 | Swirl Ring 100AStainless (H17) | |
| HEC277139 | 277139 | Swirl Ring 150AMild Steel |
Technical Support:
1. avoid the expansion of plasma arc
If the plasma arc is only extended and expanded in order to reach the working surface (the plasma arc starts at the beginning and end of the cutting), this will cause the non normal damage of the nozzle. If you use the right edge of the starting point, select the right "broken arc" signal time, this problem can be avoided.
2. to reduce unnecessary arcing time
When the arc discharge nozzle and electrode consumption are very fast, so the arc should be placed on the cutting torch cutting the workpiece within walking distance. Try not to have an empty arc. The cutting machine should begin to execute the program immediately after receiving the signal from the start arc, and should not be suspended.
3, keep the plasma gas dry and clean
Plasma system need to dry and clean gas plasma in order to work properly, dirty gas is usually compressed gas system, it will relationship exertion of life, resulting in non normal damage. Method for testing the quality of gas cutting torch in the test state, put a mirror in the below, torch gas consumption, if there is a gas and mist on the mirror, you need to identify the cause and correct.
4. Method for prolonging the service life of the plasma wearing parts
ensure the correct air pressure and flow rate of the plasma gas
The correct pressure and flow rate of the plasma gas are very important to the service life of the wearing parts. If the pressure is too high, the life of the electrode will be greatly reduced;
If the pressure is too low, the nozzle's life will be affected.
