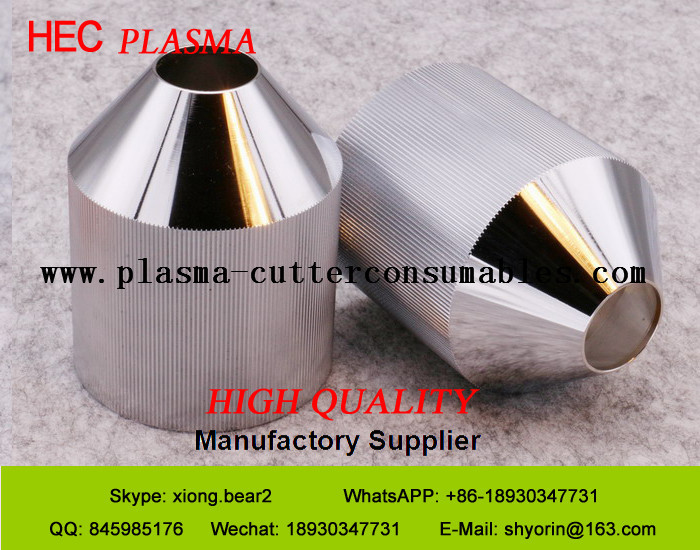

Retaining Cap PK031336 Koike Torch Outer Cap For Koike Super 400 Plasma Consumables
Our company adopts modern management mode and devotes itself to new high performance design and production of welding & cutting equipments, with continuous technique advantages innovation .All our staff are striving to realize the aim of "Create Chinese Brand ,Build First-Class Enterprise ",with the spirit of "Being honest and pragmatic ,making pioneering efforts and seeking perfection with persistency."Company commitment: thinking what customers think, worrying what customers worry, in time delivery and high tracking service.
| Machine | HEC NO. | Ref NO. | Description |
|

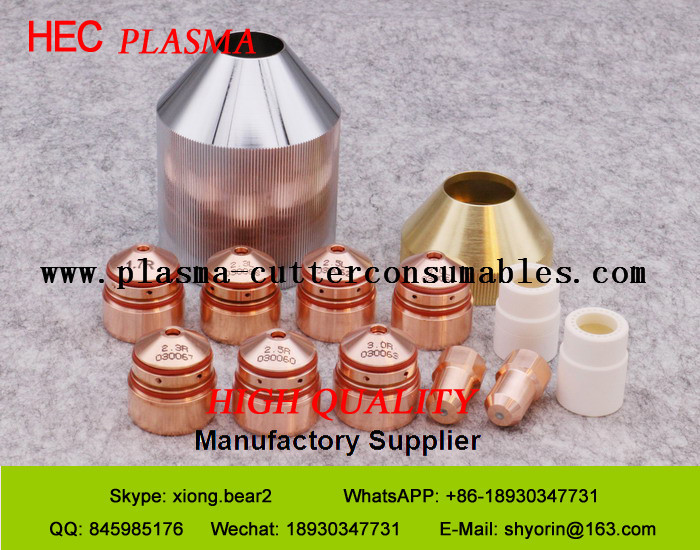

Super 400 |
X08027 | PK031027 | Electrode "A" |
| X08459 | PK40008459 | Electrode "P" | |
| X1823L | PK030068 | Nozzle,2.3L | |
| X1823R | PK030067 | Nozzle,2.3R | |
| X1825L | PK030062 | Nozzle,2.5L | |
| X1825R | PK030060 | Nozzle,2.5R | |
| X1830R | PK030063 | Nozzle,3.0R | |
| X1830L | PK030061 | Nozzle,3.0L | |
| X78204R | PK031204 | Swirl Ring "R" | |
| X78205L | PK031205 | Swirl Ring "L" | |
| X48360 | PK031360 | Retaining Cap 400-OPS | |
| X48324 | PK031324 | Retaining Cap 401/402-OPS | |

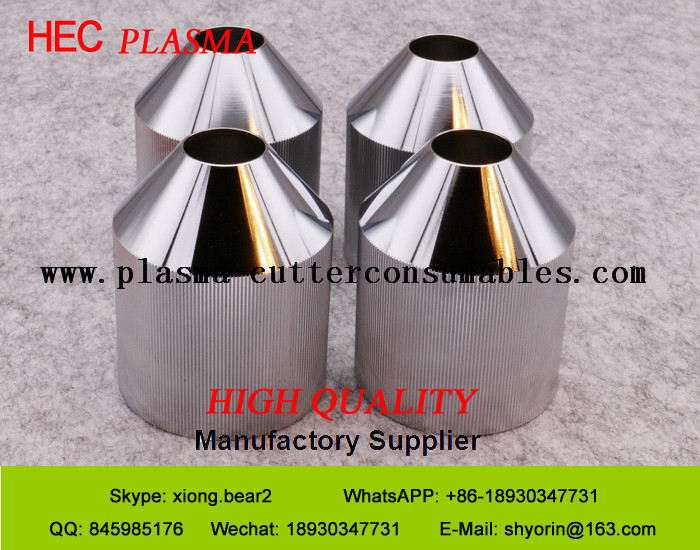

| X48336 | PK031336 | Retaining Cap 600-OPS | |
| X28323 | PK031323 | Shield | |
| X28332 | PK031332 | Shield 600-OPS | |
| X98152 | PK405152 | Water pipe | |
| X88709 | PK031709 | Torch Body 400-OPS | |
| X88744 | PK031744 | Torch Body 401-OPS | |
| X88738 | PK031738 | Torch Body 402-OPS | |
| X88054 | PK40005054 | Torch Body 600-OPS |
Technical Support:
The maintenance of the plasma torch
1. to correctly install the torch
Correctly and carefully install the torch, and to ensure that all the parts fit together well, and ensures the cutting gas and shielding gas flow, before the installation will be all the components on a clean cloth, avoid dirt adhesion to components. In the "O" type ring with a little lubricant, "O" - shaped ring is appropriate, should not be more.
2. the wearing parts should be replaced in time before the complete damage.
Vulnerable parts are not used completely damaged after the replacement of, because of serious damage to the electrode, the nozzle and the eddy current ring will can not control the plasma arc, cutting torch damage easily. So for the first time found that the quality of cutting down, it should be timely inspection and replacement of wearing parts.
3. The connecting thread cleaning torch
In the replacement of wearing parts or daily maintenance inspection, must ensure that the torch of internal and external thread cleaning. If necessary, apply more than 98% of industrial alcohol cleaning or repair connection thread.
4 the contact surface of the cleaning electrode and the nozzle
Must ensure that the nozzle and electrode contact surface clean and free of oil, if the contact surface with dirt, the torch will not be able to normal working, should use such as hydrogen peroxide cleaning agent cleaning.
5 check cutting gas and protective gas
Check the flow and pressure of cutting gas and protecting gas every day, if the flow is not sufficient or leakage, should immediately stop the trouble.
6 avoid torch collision damage
In order to avoid cutting collision damage, should be properly programmed, the cutting speed limit to avoid walking. Install anti-collision device can effectively avoid the collision damage the cutting torch.
7. The damage reason of the most common torch
(1) the torch collision
(2) the destructive plasma arc due to the damage of the damaged parts
(3) plasma arc damage caused by the dirt
8. matters needing attention
(1) do not grease the cutting torch
(2) don't over use the "O - ring" lubricant.
(3) the protective cover is installed in the torch on the splash do not spray chemicals.
(4) do not take manual torch when use hammer.
