0558006036 3.6mm Esab Plasma Consumables / Esab Replacement Parts

0558006036 3.6mm Esab Plasma Consumables / Esab Replacement Parts

  • 0558006036 3.6mm Esab Plasma Consumables / Esab Replacement Parts
  • 0558006036 3.6mm Esab Plasma Consumables / Esab Replacement Parts
0558006036 3.6mm Esab Plasma Consumables / Esab Replacement Parts
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: 0558006036
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: 0558006036
High Light:

esab plasma cutter parts


plasma cutter consumables

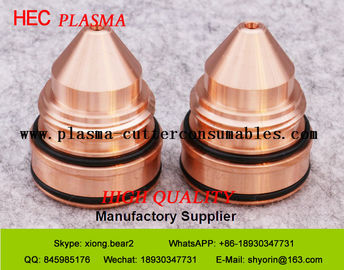

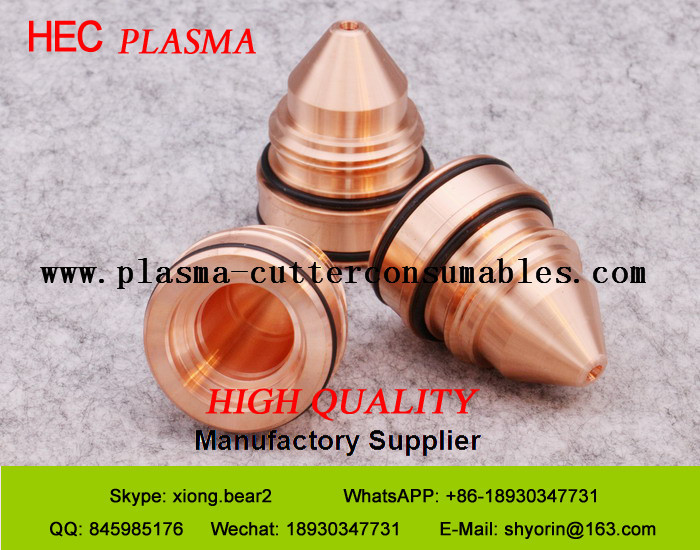

Esab PT-36 Nozzle 0558006036 3.6mm For Esab Plasma Cutter Machine
PT-25, PT-36, PT-37, PT-600, PT-15XL, PT-19XL, PT-31XL electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples but you need bear the express cost by yourself.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.

MachineHEC NO.Ref NO.Description
PT-36E2188137081Shield Retainer
E23030558006130Shield Cup, 3mm
E23041558006141Shield Cup, 4.1mm
E23066558006166Shield Cup, 6.6mm
E23099558006199Shield Cup, 9.9mm
E23124558007624Shield Cup, 2.4mm
E274421944Shield Gas Diffuser, Standard
E259621796Shield Gas Diffuser, Low Current
E2109622496Shield Gas Diffuser, Reverse
E1188237082Nozzle Retaining Cap, Standard
E182622026Nozzle Tip, 50A
E182922029Nozzle Tip, 100A
E183022030Nozzle Tip, 150A
E183122031Nozzle Tip, 200A
E183222032Nozzle Tip, 250A
E183422034Nozzle Tip, 360A
E183322033Nozzle Tip, 400A
E682722027Nozzle Base, 50A
E682822028Nozzle Base, 100-400A
E12910558006010Nozzle, 1mm
E12914558006014Nozzle, 1.4mm
E12918558006018Nozzle, 1.8mm
E12920558006020Nozzle, 2mm
E12923558006023Nozzle, 2.3mm
E12925558006025Nozzle, 2.5mm1
E12928558006028Nozzle, 2.8mm
E12930558006030Nozzle, 3mm1
E12936558006036Nozzle, 3.6mm1
E12941558006041Nozzle, 4.1mm1
E02859558005459Electrode L.C., O2/N25
E02628558003928Electrode Std., O2/H355
E02614558003914Electrode Std., O25
E72857558005457Baffle, 4 Hole x 0.0221
E72434558002534Baffle, 4 Hole x 0.032 CCW1
E72433558002533Baffle, 4 Hole x 0.0321
E72225558001625Baffle, 8-Hole x 0.0471
E72430558002530Baffle, 8-Hole x 0.047 CCW1
E02624558003924Electrode Holder
E834040558003804Torch Body
PT-37E437030558006603SHIELD 30-40 AMP PT-37
E437020558006602SHIELD 50-90 AMP PT-37/38
E437010558006601SHIELD 100 AMP PT-37/PT38GOUGE
E133180558005218Nozzle 30-40 AMP PT-37
E135780558004878Nozzle 50 AMP PT-37
E136190558005219Nozzle 70 AMP PT-37/38
E135790558004879Nozzle 100 AMP PT-37
E036200558005220Electrode 30-40A PT-37
E035750558004875Electrode 50-100A PT-37
E736170558005217Gas Baffle30-70A PT-37/38
E735700558004870Gas Baffle90-100A PT-37/38

Technical Support:
Plasma cutting machine matters needing attention
The selection of cutting parameters of CNC plasma cutting machine is very important for cutting quality, cutting speed and efficiency. The correct use of CNC plasma machine for high quality fast cutting, cutting process parameters must be deeply understood and mastered.
First, cutting current: it is the most important cutting process parameters, directly determines the cutting thickness and speed, that is, cutting ability. Effects: 1, cutting current increases, an increase in the energy of the arc, cutting ability, the cutting speed is increased; 2, cutting current increases, increasing the diameter of the arc arc variable rough makes incision width; 3, cutting current ambassador to the nozzle increases the heat load, the nozzle premature damage, cutting quality of the natural decline, can't even normal cut. So the cutting current and the corresponding nozzle should be chosen according to the thickness of the material before cutting.
1, argon at high temperature and almost no reaction to any metal, argon plasma arc is very stable. The nozzle and the electrode used have high service life. But the argon plasma arc voltage is low, the enthalpy value is not high, the cutting ability is limited, and the cutting thickness will be reduced by about 25% compared with the air. In addition, the surface tension of molten metal is larger than that in the environment of nitrogen gas, which is about 30% higher than that in nitrogen gas environment. Even if the use of argon and other gas mixture will have a tendency to stick. Therefore, pure argon plasma cutting has been rarely used alone.
2, hydrogen is often as auxiliary gas and other gas mixing action, such as the famous gas H35 (the volume fraction of hydrogen is 35%, the rest of the argon) is one of the strongest gas plasma arc cutting, the main enrichment in hydrogen. Because the hydrogen can significantly improve the arc voltage, the hydrogen plasma jet has a high enthalpy value, when mixed with argon, the cutting ability of the plasma jet is greatly improved. Generally more than 70mm thickness of metal materials, commonly used argon + hydrogen as a cutting gas. If the water jet is used to further compress the argon + hydrogen plasma arc, the higher cutting efficiency can be obtained.
3, nitrogen is used as a working gas, under the conditions of higher voltage and nitrogen plasma arc has better stability and higher than the argon gas jet power, even if is cutting liquid metal viscosity materials such as stainless steel and nickel base alloy, incision of inferior hanging slag quantity are few. Nitrogen can be used alone, also can use with other gas mixture, such as automatic cutting often use air or nitrogen as the working gas, the gas has become the standard high speed cutting carbon steel gas. Sometimes nitrogen is also used as an arc gas in the plasma arc cutting.
4, oxygen can improve the speed of cutting low carbon steel materials. Use oxygen cutting, cutting mode and flame cutting is very similar, the plasma arc of high temperature and high energy of the cutting speed faster, but must with the use of high temperature oxidation resistance of electrode, and the electrode for arc anti impact protection, to prolong the electrode life.
5, an air containing volume fraction of about 78% nitrogen, so use air cutting formed by hanging slag and nitrogen gas cutting is very similar; in the air also contains a volume fraction of about 21% oxygen, because the existence of oxygen, air cutting speed of low carbon steel material is also very high; at the same time the air is the most economical working gas. However, when the air is used to cut, there are problems such as hanging slag and cutting oxidation, increasing nitrogen, and the lower life of electrode and nozzle can also affect the working efficiency and cutting cost.
