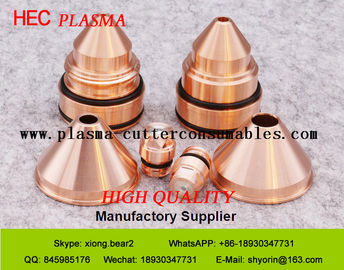

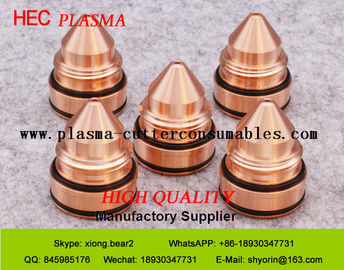

Plasma Cutter Nozzle 0558006018 1.8mm For Esab PT-36 Plasma Cutting accessories
Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on. We have tens years experience to export many countries, and our products is very competitive in the world.
Each of our products has been tested with a rigorous precision instrument, A large number of piercings tests and service life tests, And made batch trial in our customers. If all results are good, then we will producing them. In recent years, we have been sold in lots of countries and regions in Europe and Asia and gained good reputation widely with excellent quality . In order to meet customers’ requirements and improve product quality, our company has already realized mechanical processing numerical control automatization production, and been committed to manufacturing products with best quality.
Our company adopts modern management mode and devotes itself to new high performance design and production of welding & cutting equipments, with continuous technique advantages innovation .All our staff are striving to realize the aim of "Create Chinese Brand ,Build First-Class Enterprise ",with the spirit of "Being honest and pragmatic ,making pioneering efforts and seeking perfection with persistency."
Company commitment: thinking what customers think, worrying what customers worry, in time delivery and high tracking service.
Machine | HEC NO. | Ref NO. | Description |
PT-36 | E21881 | 37081 | Shield Retainer |
E23030 | 558006130 | Shield Cup, 3mm | |
E23041 | 558006141 | Shield Cup, 4.1mm | |
E23066 | 558006166 | Shield Cup, 6.6mm | |
E23099 | 558006199 | Shield Cup, 9.9mm | |
E23124 | 558007624 | Shield Cup, 2.4mm | |
E2744 | 21944 | Shield Gas Diffuser, Standard | |
E2596 | 21796 | Shield Gas Diffuser, Low Current | |
E21096 | 22496 | Shield Gas Diffuser, Reverse | |
E11882 | 37082 | Nozzle Retaining Cap, Standard | |
E1826 | 22026 | Nozzle Tip, 50A | |
E1829 | 22029 | Nozzle Tip, 100A | |
E1830 | 22030 | Nozzle Tip, 150A | |
E1831 | 22031 | Nozzle Tip, 200A | |
E1832 | 22032 | Nozzle Tip, 250A | |
E1834 | 22034 | Nozzle Tip, 360A | |
E1833 | 22033 | Nozzle Tip, 400A | |
E6827 | 22027 | Nozzle Base, 50A | |
E6828 | 22028 | Nozzle Base, 100-400A | |
E12910 | 558006010 | Nozzle, 1mm | |
E12914 | 558006014 | Nozzle, 1.4mm | |
E12918 | 558006018 | Nozzle, 1.8mm | |
E12920 | 558006020 | Nozzle, 2mm | |
E12923 | 558006023 | Nozzle, 2.3mm | |
E12925 | 558006025 | Nozzle, 2.5mm1 | |
E12928 | 558006014 | Nozzle, 2.8mm | |
E12930 | 558006030 | Nozzle, 3mm1 | |
E12936 | 558006036 | Nozzle, 3.6mm1 | |
E12941 | 558006041 | Nozzle, 4.1mm1 | |
E02859 | 558005459 | Electrode L.C., O2/N25 | |
E02628 | 558003928 | Electrode Std., O2/H355 | |
E02614 | 558003914 | Electrode Std., O25 | |
E72857 | 558005457 | Baffle, 4 Hole x 0.0221 | |
E72434 | 558002534 | Baffle, 4 Hole x 0.032 CCW1 | |
E72433 | 558002533 | Baffle, 4 Hole x 0.0321 | |
E72225 | 558001625 | Baffle, 8-Hole x 0.0471 | |
E72430 | 558002530 | Baffle, 8-Hole x 0.047 CCW1 | |
E02624 | 558003924 | Electrode Holder | |
E83404 | 0558003804 | Torch Body | |
PT-37 | E43703 | 0558006603 | SHIELD 30-40 AMP PT-37 |
E43702 | 0558006602 | SHIELD 50-90 AMP PT-37/38 | |
E43701 | 0558006601 | SHIELD 100 AMP PT-37/PT38GOUGE | |
E43700 | 0558006600 | RETAINING CUP W/THREADS PT-37 | |
E13318 | 0558005218 | Nozzle 30-40 AMP PT-37 | |
E13578 | 0558004878 | Nozzle 50 AMP PT-37 | |
E13619 | 0558005219 | Nozzle 70 AMP PT-37/38 | |
E13579 | 0558004879 | Nozzle 100 AMP PT-37 | |
E03620 | 0558005220 | Electrode 30-40A PT-37 | |
E03575 | 0558004875 | Electrode 50-100A PT-37 | |
E73617 | 0558005217 | Gas Baffle30-70A PT-37/38 | |
E73570 | 0558004870 | Gas Baffle90-100A PT-37/38 | |
E93590 | 0558004890 | 4.5Feet(1.4M)PT-37 | |
E93591 | 0558004891 | 17Feet(5.2M)PT-37 | |
E93592 | 0558004892 | 25Feet(7.6M)PT-37 | |
E93593 | 0558004893 | 50Feet(15.2M)PT-37 |
Technical Support:
Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut by this process include steel, aluminum, brass and copper though other conductive metals may be cut as well. Plasma cutting is often used in fabrication and welding shops, automotive repair and restoration, industrial construction, salvage and scrapping operations. Due to the high speed, precision cuts, combined with low cost of operation, plasma cutting sees a widespread usage from large scale industrial CNC applications down to small hobbyist shops.
Process:
The basic plasma cutting process involves creating an electrical channel of ionized gas i.e. plasma from the plasma cutter itself, through the work piece to be cut, thus forming a completed electric circuit back to the plasma cutter via a grounding clamp. This is accomplished by a compressed gas (oxygen, air, inert and others depending on material being cut) which is blown through a focused nozzle at high speed toward the work piece. An electrical arc is then formed within the gas, between an electrode near or integrated into the gas nozzle and the work piece itself. The electrical arc ionizes some of the gas, thereby creating an electrically conductive channel of plasma. As electricity from the cutter torch travels down this plasma it delivers sufficient heat to melt through the work piece. At the same time, much of the high velocity plasma and compressed gas blow the hot molten metal away, thereby separating i.e. cutting through the work piece.
