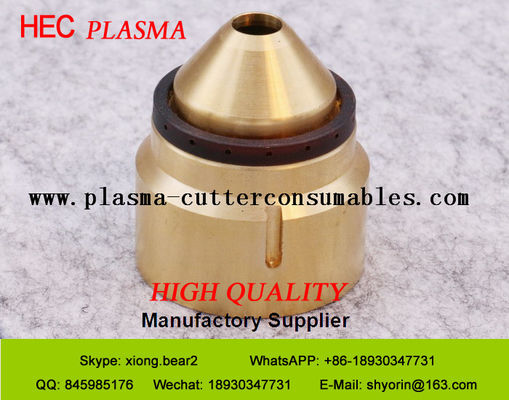

Kjellberg Nozzle Cap .11.846.901.1628 T3228 For Kjellberg Plasma Torch Accessories
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.
Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
Machine | HEC NO. | Thum NO. | Ref NO. | Description |
|
K631730 | V4330 | 11.833.101.1550 | Swirl Gas Cap 3.0 |
K631735 | V4335 | 11.833.101.155 | Swirl Gas Cap 3.5 | |
K631740 | V4340 | 11.833.101.156 | Swirl Gas Cap 4.0 | |
K631745 | V4345 | 11.833.101.157 | Swirl Gas Cap 4.5 | |
K631750 | V4350 | 11.833.101.158 | Swirl Gas Cap 5.0 | |
K631760 | V4360 | 11.833.101.159 | Swirl Gas Cap 6.0 | |
K631860 | V4560 | 11.833.111.159 | Swirl Gas Cap 6.0 | |
K42192 | T502 | 11.841.721.081 | Protective Cap Percut 370.2 | |
K42202 | T522 | 11.836.921.271 | Swirl Gas Nozzle PerCut 370.2® | |
K42201 | T521 | 11.836.901.271 | Swirl Gas Nozzle PB-S77®/PB-S80® | |
K521230 | T3030 | 11.836.901.163 | Nozzle Cap (12x1,5 30°cw) | |
K521245 | T3045 | 11.836.901.164 | Nozzle Cap (12x1,5 45°cw) | |
K521345 | T3145 | 11.836.901.1641 | Nozzle Cap (12x1,5 45°ccw) | |
K521260 | T3060 | 11.836.901.165 | Nozzle Cap (12x1,5 60°cw) | |
K521360 | T3160 | 11.836.901.1651 | Nozzle Cap (12x1,5 60°ccw) | |
K12715 | T2115Y | 11.846.921.415 | Nozzle O2 120A | |
K12720 | T2120Y | 11.846.921.420 | Nozzle O2 200A | |
K12725 | T2125Y | 11.846.921.425 | Nozzle O2 250A | |
K12727 | T2127Y | 11.846.921.427 | Nozzle O2 300A | |
K12730 | T2130Y | 11.846.921.430 | Nozzle O2 360A | |
k11025 | T2525 | .11.836.911.625 | Nozzle T2525 ArH2 280A 2.5mm | |
k11027 | T2527 | .11.836.911.627. | Nozzle T2527 ArH2 360A 2.7mm | |
k1927 | T2427 | .11.846.911.627 | Nozzle T2427 ArH2 360A 2,7mm | |
k1929 | T2429 | .11.846.911.629 | Nozzle T2429 ArH2 440A 2,9mm | |
K7244 | T104 | 11.836.921.1542 | Swirl Ring (3x0,4 cw) | |
K7241 | T101 | 11.836.921.153 | Swirl Ring (6x0,8 cw) | |
K7251 | T111 | 11.836.921.1531 | Swirl Ring (6x0,8 ccw) | |
K7242 | T102 | 11.836.921.154 | Swirl Ring (3x0,8cw) | |
K7252 | T112 | 11.836.921.1541 | Swirl Ring (3x0,6 ccw) | |
K0212 | T012Y | 11.844.921.300-AG | Silver Electrode | |
K0102 | S002Y | 11.843.021.320-AG | Cathode, Ag | |
K0112 | S012X | 11.843.121.310-AG | Cathode, Ag | |
K0122 | S042 | 11.842.411.510 | Cathode, HiFinox® (i) | |
K0132 | S052 | 11.842.511.510 | Cathode, FineFocus® (i) | |
K0221 | T051 | |||
K92211 | T901 | 11.844.901.152 | Cooling Tube | |
K93221 | V951 | 11.828.911.230 | Cooling Tube |
Technical Support:
ety operation procedure for plasma cutting machine
A, the use of the former and the cutting
1 should check and confirm the power supply, air source, water leakage, leakage, leakage, grounding or zero e and reliable. car, the workpiece should be in the appropriate location, and should be suitable for the workpiece and the cutting of the positive electrode, cutting the work surface should be provided with the dissolution of slag pit. according to the workpiece material, the type and thickness of the selected nozzle diameter, internal shrinkage adjustment cutting power supply, gas flow rate and electrode. automatic cutting trolley should be empty by far, and the selected cutting speed. operators must wear protective masks, gloves, hats, electric membrane anti-dust masks and soundproof earmuffs. Without a protective mirror, the personnel of the plasma arc is strictly prohibited, and the exposed skin is strictly prohibited to be close to the plasma arc.
correct assembly torch Right, carefully install the torch, ensure all parts with good, to ensure that the gas and the cooling air. Install all of the components on a clean cloth, avoid dirt stuck to components. In the O ring on the appropriate lubrication oil, O ring to change light as the standard, can not be more.
consumption of parts in a timely manner before the complete damage Consumption with completely damaged parts do not change, again because of severe wear of electrode, the nozzle and the vortex ring will have control of the plasma arc, extremely easy to cause the torch of serious damage. So when the first cut in the quality of the cut, it should be timely check the consumption.
The connecting thread cleaning torch In the replacement of expendable thing or daily maintenance inspection, must assure cutting torch, within the thread clean and, if necessary, should be clean or repair connection thread.
