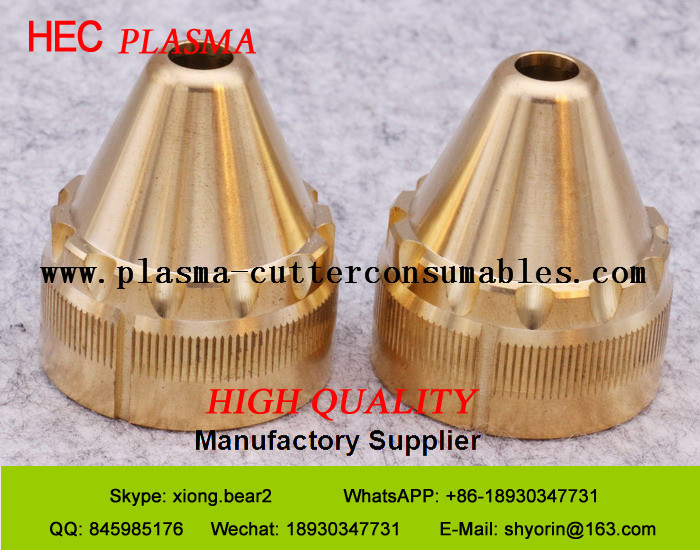

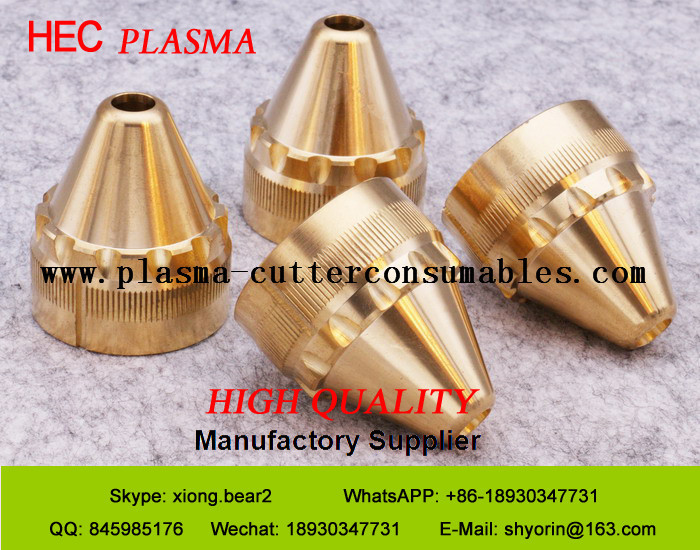

Kjellberg Plasma Cutter Accessories .11.836.901.160 T3000 Nozzle Cap

Kjellberg Plasma Cutter Accessories .11.836.901.160 T3000 Nozzle Cap

  • Kjellberg Plasma Cutter Accessories .11.836.901.160 T3000 Nozzle Cap
  • Kjellberg Plasma Cutter Accessories .11.836.901.160 T3000 Nozzle Cap
Kjellberg Plasma Cutter Accessories .11.836.901.160 T3000 Nozzle Cap
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: .11.836.901.160 T3000
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: .11.836.901.160 T3000
High Light:

plasma torch accessories


plasma cutter accessories

Kjellberg Plasma Cutter Accessories .11.836.901.160 T3000 Nozzle Cap
Shanghai ZhouBo Welding & Cutting Technology company can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.
Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.
Nozzle: M2006, M2007, M2008, M2009, M2010, M2112, R2007, R2008, R2009, R2010, R2011, R2012, S2006X, S2007X, S2008X, S2009X, S2010X, S2011X, S2012X, S2014X, S2016X, S2514X, S2516X, S2518X, S012X, S2112X, S2114X, S2116X, T2115, T2120, T2125, T2127, T2130, T2523, T2525, T2427, T2429, G2006Y, G2207Y, G2008Y, G2009Y, G2010Y, G2011Y, G2012Y, G2014Y, G2016Y, G2326Y, G2330Y, G2331Y, G2514Y, G2516Y, G2518Y, G2725Y, G2727Y, G2729Y.


Machine HEC NO. Thum NO. Ref NO. Description

FineFocus 800
FineFocus 900

K631730 V4330 11.833.101.1550 Swirl Gas Cap 3.0
K631735 V4335 11.833.101.155 Swirl Gas Cap 3.5
K631740 V4340 11.833.101.156 Swirl Gas Cap 4.0
K631745 V4345 11.833.101.157 Swirl Gas Cap 4.5
K631750 V4350 11.833.101.158 Swirl Gas Cap 5.0
K631760 V4360 11.833.101.159 Swirl Gas Cap 6.0
K631860 V4560 11.833.111.159 Swirl Gas Cap 6.0
K42192 T502 11.841.721.081 Protective Cap Percut 370.2
K42202 T522 11.836.921.271 Swirl Gas Nozzle PerCut 370.2®
K42201 T521 11.836.901.271 Swirl Gas Nozzle PB-S77®/PB-S80®
K521230 T3030 11.836.901.163 Nozzle Cap (12x1,5 30°cw)
K521245 T3045 11.836.901.164 Nozzle Cap (12x1,5 45°cw)
K521345 T3145 11.836.901.1641 Nozzle Cap (12x1,5 45°ccw)
K521260 T3060 11.836.901.165 Nozzle Cap (12x1,5 60°cw)
K521360 T3160 11.836.901.1651 Nozzle Cap (12x1,5 60°ccw)
K12715 T2115Y 11.846.921.415 Nozzle O2 120A
K12720 T2120Y 11.846.921.420 Nozzle O2 200A
K12725 T2125Y 11.846.921.425 Nozzle O2 250A
K12727 T2127Y 11.846.921.427 Nozzle O2 300A
K12730 T2130Y 11.846.921.430 Nozzle O2 360A
k11025 T2525 .11.836.911.625 Nozzle T2525 ArH2 280A 2.5mm
k11027 T2527 .11.836.911.627. Nozzle T2527 ArH2 360A 2.7mm
k1927 T2427 .11.846.911.627 Nozzle T2427 ArH2 360A 2,7mm
k1929 T2429 .11.846.911.629 Nozzle T2429 ArH2 440A 2,9mm
K7244 T104 11.836.921.1542 Swirl Ring (3x0,4 cw)
K7241 T101 11.836.921.153 Swirl Ring (6x0,8 cw)
K7251 T111 11.836.921.1531 Swirl Ring (6x0,8 ccw)
K7242 T102 11.836.921.154 Swirl Ring (3x0,8cw)
K7252 T112 11.836.921.1541 Swirl Ring (3x0,6 ccw)
K0212 T012Y 11.844.921.300-AG Silver Electrode
K0102 S002Y 11.843.021.320-AG Cathode, Ag
K0112 S012X 11.843.121.310-AG Cathode, Ag
K0122 S042 11.842.411.510 Cathode, HiFinox® (i)
K0132 S052 11.842.511.510 Cathode, FineFocus® (i)
K0221 T051
K92211 T901 11.844.901.152 Cooling Tube
K93221 V951 11.828.911.230 Cooling Tube

Technical Support:
plasma cutting machine working principle and cutting range
Plasma cutting machine with compressed air as the working gas, plasma arc of high temperature and high speed as the heat source, will be cutting of the metal local melting (and evaporation), and at the same time high-speed airflow will have metal melting blown away, forming a narrow slit. Plasma cutting machine can be used for stainless steel, aluminum, copper, cast iron, carbon steel and other metal materials cutting. Plasma cutting machine is not only cutting speed, cutting narrow, notch formation, heat affected zone is small, low deformation of the workpiece, easy operation, but also has significant energy saving effect. Plasma cutting machine is suitable for all kinds of machinery, metal structure manufacture, installation and repair work in thin sheet cutting, opening, patching, open groove cutting.
1, cutting current of plasma cutting machine
The current is related to the material and thickness of the cut piece, and the cutting current increases with the increase of the thickness of the cut piece.
2, cutting speed
Cutting speed depends on the material thickness, cutting current. Cutting speed is a serious impact on the quality of the incision, the speed is too fast, plasma arc to melt metal.
3, nozzle height
From the height of the cutting nozzle and cutting structure, 2-4mm metal surface.
4, working gas
Plasma cutting development up to now, the working gas (gas is plasma arc conducting medium, and is carrying heating. At the same time, we should exclude the incision in the molten metal) on plasma arc cutting properties and cutting quality and speed have obvious influence. The common plasma arc working gas is argon, hydrogen, nitrogen, oxygen, air, water vapor and some mixture gases.
5, gas flow
Influence on arc compression level and blowing in addition to the effect of molten metal, the flow is too large, arc and tend to be unstable, flow through the small to blow in the molten metal, and even burn the conductive nozzle.
