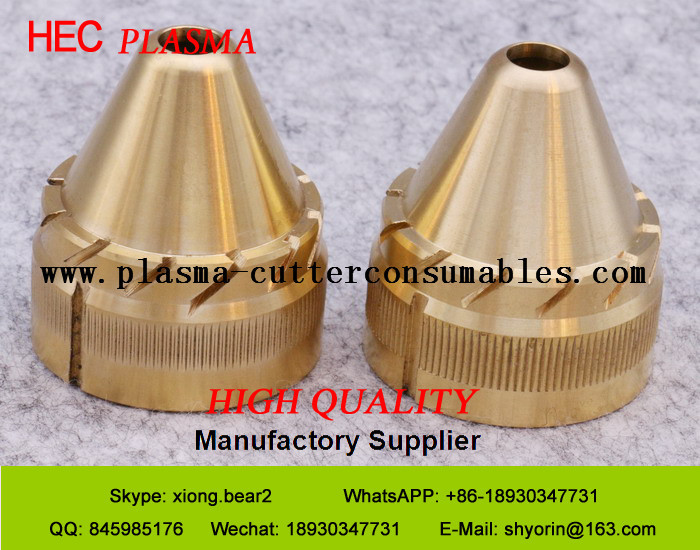

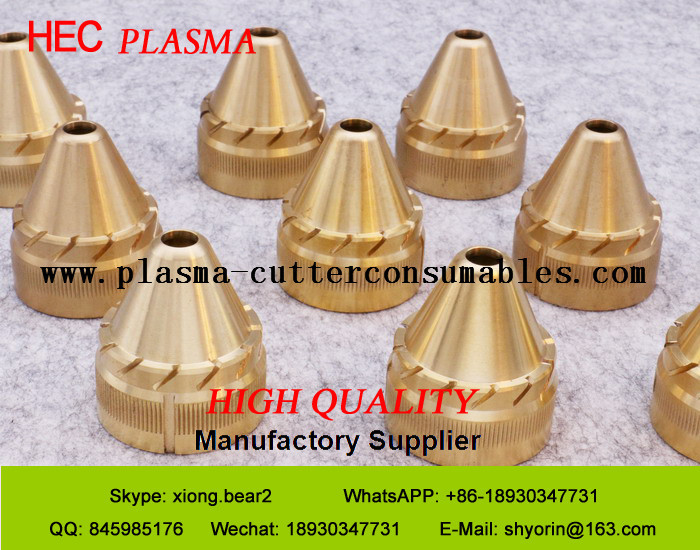

Kjellberg Plasma Nozzle Cap .11.836.901.164 T3045 For Kjellberg FineFocus800 Consumables
We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
Nozzle: M2006, M2007, M2008, M2009, M2010, M2112, R2007, R2008, R2009, R2010, R2011, R2012, S2006X, S2007X, S2008X, S2009X, S2010X, S2011X, S2012X, S2014X, S2016X, S2514X, S2516X, S2518X, S012X, S2112X, S2114X, S2116X, T2115, T2120, T2125, T2127, T2130, T2523, T2525, T2427, T2429, G2006Y, G2207Y, G2008Y, G2009Y, G2010Y, G2011Y, G2012Y, G2014Y, G2016Y, G2326Y, G2330Y, G2331Y, G2514Y, G2516Y, G2518Y, G2725Y, G2727Y, G2729Y.
Shanghai ZhouBo Welding & Cutting Technology company can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
Machine | HEC NO. | Thum NO. | Ref NO. | Description |
| K631730 | V4330 | 11.833.101.1550 | Swirl Gas Cap 3.0 |
K631735 | V4335 | 11.833.101.155 | Swirl Gas Cap 3.5 | |
K631740 | V4340 | 11.833.101.156 | Swirl Gas Cap 4.0 | |
K631745 | V4345 | 11.833.101.157 | Swirl Gas Cap 4.5 | |
K631750 | V4350 | 11.833.101.158 | Swirl Gas Cap 5.0 | |
K631760 | V4360 | 11.833.101.159 | Swirl Gas Cap 6.0 | |
K631860 | V4560 | 11.833.111.159 | Swirl Gas Cap 6.0 | |
K42192 | T502 | 11.841.721.081 | Protective Cap Percut 370.2 | |
K42202 | T522 | 11.836.921.271 | Swirl Gas Nozzle PerCut 370.2® | |
K42201 | T521 | 11.836.901.271 | Swirl Gas Nozzle PB-S77®/PB-S80® | |
K521230 | T3030 | 11.836.901.163 | Nozzle Cap (12x1,5 30°cw) | |
K521245 | T3045 | 11.836.901.164 | Nozzle Cap (12x1,5 45°cw) | |
K521345 | T3145 | 11.836.901.1641 | Nozzle Cap (12x1,5 45°ccw) | |
K521260 | T3060 | 11.836.901.165 | Nozzle Cap (12x1,5 60°cw) | |
K521360 | T3160 | 11.836.901.1651 | Nozzle Cap (12x1,5 60°ccw) | |
K12715 | T2115Y | 11.846.921.415 | Nozzle O2 120A | |
K12720 | T2120Y | 11.846.921.420 | Nozzle O2 200A | |
K12725 | T2125Y | 11.846.921.425 | Nozzle O2 250A | |
K12727 | T2127Y | 11.846.921.427 | Nozzle O2 300A | |
K12730 | T2130Y | 11.846.921.430 | Nozzle O2 360A | |
k11025 | T2525 | .11.836.911.625 | Nozzle T2525 ArH2 280A 2.5mm | |
k11027 | T2527 | .11.836.911.627. | Nozzle T2527 ArH2 360A 2.7mm | |
k1927 | T2427 | .11.846.911.627 | Nozzle T2427 ArH2 360A 2,7mm | |
k1929 | T2429 | .11.846.911.629 | Nozzle T2429 ArH2 440A 2,9mm | |
K7244 | T104 | 11.836.921.1542 | Swirl Ring (3x0,4 cw) | |
K7241 | T101 | 11.836.921.153 | Swirl Ring (6x0,8 cw) | |
K7251 | T111 | 11.836.921.1531 | Swirl Ring (6x0,8 ccw) | |
K7242 | T102 | 11.836.921.154 | Swirl Ring (3x0,8cw) | |
K7252 | T112 | 11.836.921.1541 | Swirl Ring (3x0,6 ccw) | |
K0212 | T012Y | 11.844.921.300-AG | Silver Electrode | |
K0102 | S002Y | 11.843.021.320-AG | Cathode, Ag | |
K0112 | S012X | 11.843.121.310-AG | Cathode, Ag | |
K0122 | S042 | 11.842.411.510 | Cathode, HiFinox® (i) | |
K0132 | S052 | 11.842.511.510 | Cathode, FineFocus® (i) | |
K0221 | T051 | |||
K92211 | T901 | 11.844.901.152 | Cooling Tube | |
K93221 | V951 | 11.828.911.230 | Cooling Tube |
Technical Support:
plasma cutting machine working principle and cutting range
Plasma cutting machine with compressed air as the working gas, plasma arc of high temperature and high speed as the heat source, will be cutting of the metal local melting (and evaporation), and at the same time high-speed airflow will have metal melting blown away, forming a narrow slit. Plasma cutting machine can be used for stainless steel, aluminum, copper, cast iron, carbon steel and other metal materials cutting. Plasma cutting machine is not only cutting speed, cutting narrow, notch formation, heat affected zone is small, low deformation of the workpiece, easy operation, but also has significant energy saving effect. Plasma cutting machine is suitable for all kinds of machinery, metal structure manufacture, installation and repair work in thin sheet cutting, opening, patching, open groove cutting.
(1) cutting current of plasma cutting machine
The current is related to the material and thickness of the cut piece, and the cutting current increases with the increase of the thickness of the cut piece.
(2) cutting speed
Cutting speed depends on the material thickness, cutting current. Cutting speed is a serious impact on the quality of the incision, the speed is too fast, plasma arc to melt metal.
(3) nozzle height
From the height of the cutting nozzle and cutting structure, 2-4mm metal surface.
(4) working gas
Plasma cutting development up to now, the working gas (gas is plasma arc conducting medium, and is carrying heating. At the same time, we should exclude the incision in the molten metal) on plasma arc cutting properties and cutting quality and speed have obvious influence. The common plasma arc working gas is argon, hydrogen, nitrogen, oxygen, air, water vapor and some mixture gases.
(5) gas flow
Influence on arc compression level and blowing in addition to the effect of molten metal, the flow is too large, arc and tend to be unstable, flow through the small to blow in the molten metal, and even burn the conductive nozzle.
