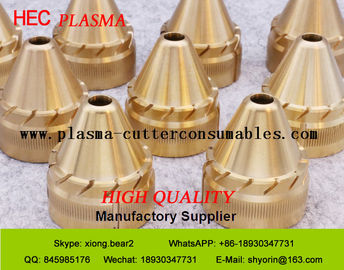

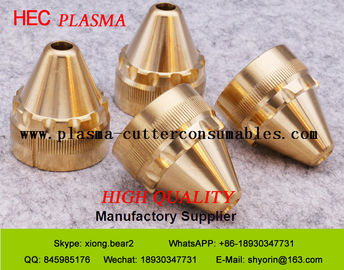

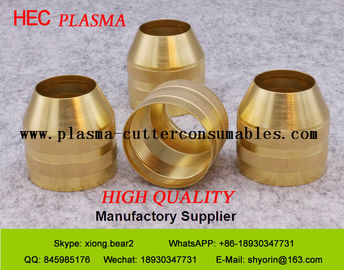

Plasma Cutting Consumables Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories

Plasma Cutting Consumables Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories

  • Plasma Cutting Consumables Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories
  • Plasma Cutting Consumables Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories
  • Plasma Cutting Consumables Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories
Plasma Cutting Consumables Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: .11.836.901.163 T3030
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: .11.836.901.163 T3030
High Light:

plasma cutter accessories

,

plasma cutting machine parts

Kjellberg Nozzle Cap .11.836.901.163 T3030 For Kjellberg FineFocus Accessories

We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
Kjellberg plasma cutting machine:HiFocus80i, HiFocus100i, HiFocus130i, HiFocus160i, HiFocus280i, HiFocus360i, HiFocus440i and so on
Kjellberg machine :PA-S20W, PA-S25W, PA-S40W, PA-S45W, PA-S70W, PA-S75, PB-S45W, PB-S47, PB-S75, PB-S76, PB-S77, PB-S80, Fine Focus450, Fine Focus800, Fine Focus900 and so on
Electrode: M002, M012, M001, M011, S002Y, S012X, T012Y, S042, S052, G002Y, G032Y, G092Y, G015Y, G071, G052, G042 and so on.
Nozzle: M2006, M2007, M2008, M2009, M2010, M2112, R2007, R2008, R2009, R2010, R2011, R2012, S2006X, S2007X, S2008X, S2009X, S2010X, S2011X, S2012X, S2014X, S2016X, S2514X, S2516X, S2518X, S012X, S2112X, S2114X, S2116X, T2115, T2120, T2125, T2127, T2130, T2523, T2525, T2427, T2429, G2006Y, G2207Y, G2008Y, G2009Y, G2010Y, G2011Y, G2012Y, G2014Y, G2016Y, G2326Y, G2330Y, G2331Y, G2514Y, G2516Y, G2518Y, G2725Y, G2727Y, G2729Y.
Shanghai ZhouBo Welding & Cutting Technology company can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.



MachineHEC NO.Thum NO.Ref NO.Description

























FineFocus 800
FineFocus 900

K631730V433011.833.101.1550Swirl Gas Cap 3.0
K631735V433511.833.101.155Swirl Gas Cap 3.5
K631740V434011.833.101.156Swirl Gas Cap 4.0
K631745V434511.833.101.157Swirl Gas Cap 4.5
K631750V435011.833.101.158Swirl Gas Cap 5.0
K631760V436011.833.101.159Swirl Gas Cap 6.0
K631860V456011.833.111.159Swirl Gas Cap 6.0
K42192T50211.841.721.081Protective Cap Percut 370.2
K42202T52211.836.921.271Swirl Gas Nozzle PerCut 370.2®
K42201T52111.836.901.271Swirl Gas Nozzle PB-S77®/PB-S80®
K521230T303011.836.901.163Nozzle Cap (12x1,5 30°cw)
K521245T304511.836.901.164Nozzle Cap (12x1,5 45°cw)
K521345T314511.836.901.1641Nozzle Cap (12x1,5 45°ccw)
K521260T306011.836.901.165Nozzle Cap (12x1,5 60°cw)
K521360T316011.836.901.1651Nozzle Cap (12x1,5 60°ccw)
K12715T2115Y11.846.921.415Nozzle O2 120A
K12720T2120Y11.846.921.420Nozzle O2 200A
K12725T2125Y11.846.921.425Nozzle O2 250A
K12727T2127Y11.846.921.427Nozzle O2 300A
K12730T2130Y11.846.921.430Nozzle O2 360A
k11025T2525.11.836.911.625Nozzle T2525 ArH2 280A 2.5mm
k11027T2527.11.836.911.627.Nozzle T2527 ArH2 360A 2.7mm
k1927T2427.11.846.911.627Nozzle T2427 ArH2 360A 2,7mm
k1929T2429.11.846.911.629Nozzle T2429 ArH2 440A 2,9mm
K7244T10411.836.921.1542Swirl Ring (3x0,4 cw)
K7241T10111.836.921.153Swirl Ring (6x0,8 cw)
K7251T11111.836.921.1531Swirl Ring (6x0,8 ccw)
K7242T10211.836.921.154Swirl Ring (3x0,8cw)
K7252T11211.836.921.1541Swirl Ring (3x0,6 ccw)
K0212T012Y11.844.921.300-AGSilver Electrode
K0102S002Y11.843.021.320-AGCathode, Ag
K0112S012X11.843.121.310-AGCathode, Ag
K0122S04211.842.411.510Cathode, HiFinox® (i)
K0132S05211.842.511.510Cathode, FineFocus® (i)
K0221T051
K92211T90111.844.901.152Cooling Tube
K93221V95111.828.911.230Cooling Tube



Technical Support:
plasma cutting machine working principle and cutting range

Plasma cutting machine with compressed air as the working gas, plasma arc of high temperature and high speed as the heat source, will be cutting of the metal local melting (and evaporation), and at the same time high-speed airflow will have metal melting blown away, forming a narrow slit. Plasma cutting machine can be used for stainless steel, aluminum, copper, cast iron, carbon steel and other metal materials cutting. Plasma cutting machine is not only cutting speed, cutting narrow, notch formation, heat affected zone is small, low deformation of the workpiece, easy operation, but also has significant energy saving effect. Plasma cutting machine is suitable for all kinds of machinery, metal structure manufacture, installation and repair work in thin sheet cutting, opening, patching, open groove cutting.

(1) cutting current of plasma cutting machine

The current is related to the material and thickness of the cut piece, and the cutting current increases with the increase of the thickness of the cut piece.

(2) cutting speed

Cutting speed depends on the material thickness, cutting current. Cutting speed is a serious impact on the quality of the incision, the speed is too fast, plasma arc to melt metal.

(3) nozzle height

From the height of the cutting nozzle and cutting structure, 2-4mm metal surface.

(4) working gas

Plasma cutting development up to now, the working gas (gas is plasma arc conducting medium, and is carrying heating. At the same time, we should exclude the incision in the molten metal) on plasma arc cutting properties and cutting quality and speed have obvious influence. The common plasma arc working gas is argon, hydrogen, nitrogen, oxygen, air, water vapor and some mixture gases.

(5) gas flow

Influence on arc compression level and blowing in addition to the effect of molten metal, the flow is too large, arc and tend to be unstable, flow through the small to blow in the molten metal, and even burn the conductive nozzle.

Cutting gun:

1) plasma generator, conductive nozzle, conductive electrode, gas distributor, ceramic, nozzle.

2) cutting gas air plasma arc cutting using compressed air as cutting gas.

3) selection specification including cutting current, cutting speed, gas flow rate and parameters.

The stability of plasma arc cutting machine has a direct impact on the quality of cutting. Plasma arc unstable phenomenon, will lead to uneven wound, and the accumulation of tumor and other defects, but also lead to the control system related components life is reduced, the nozzle, the electrode frequent replacement.
