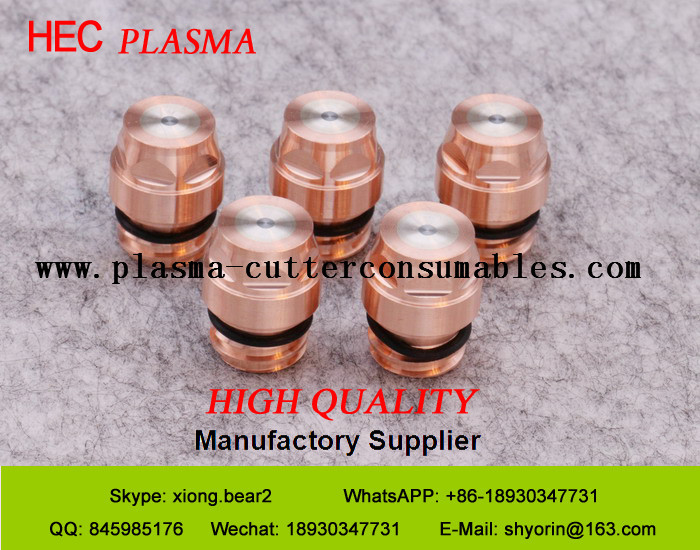

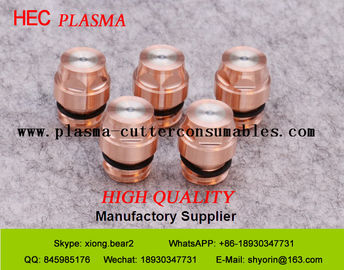

Esab Kaliburn Plasma Consumables Nozzle 0558006014 1.4mm For Esab PT-36

Esab Kaliburn Plasma Consumables Nozzle 0558006014 1.4mm For Esab PT-36

    • Esab Kaliburn Plasma Consumables Nozzle 0558006014 1.4mm For Esab PT-36
    • Esab Kaliburn Plasma Consumables Nozzle 0558006014 1.4mm For Esab PT-36
  • Esab Kaliburn Plasma Consumables Nozzle 0558006014 1.4mm For Esab PT-36

    Product Details:

    Place of Origin: China
    Brand Name: Plasma Consumables
    Certification: ROHS/ SGS
    Model Number: 0558006014

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: Manufacturer packing
    Delivery Time: Prompt goods
    Payment Terms: T/T or western Union
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Plasma Consumables Application: Plasma Cutting Machine
    Standard: Manufacturer Production Standard Type: 0558006014
    High Light:

    esab plasma cutter parts


    plasma cutter consumables

    Plasma Cutting Nozzle 0558006014 1.4mm For Esab PT-36 Plasma Cutting accessories
    Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on. We have tens years experience to export many countries, and our products is very competitive in the world.
    Each of our products has been tested with a rigorous precision instrument, A large number of piercings tests and service life tests, And made batch trial in our customers. If all results are good, then we will producing them.
    In recent years, we have been sold in lots of countries and regions in Europe and Asia and gained good reputation widely with excellent quality . In order to meet customers’ requirements and improve product quality, our company has already realized mechanical processing numerical control automatization production, and been committed to manufacturing products with best quality.
    Our company adopts modern management mode and devotes itself to new high performance design and production of welding & cutting equipments, with continuous technique advantages innovation .All our staff are striving to realize the aim of "Create Chinese Brand ,Build First-Class Enterprise ",with the spirit of "Being honest and pragmatic ,making pioneering efforts and seeking perfection with persistency."
    Company commitment: thinking what customers think, worrying what customers worry, in time delivery and high tracking service.

    Machine HEC NO. Ref NO. Description
    PT-36 E21881 37081 Shield Retainer
    E23030 558006130 Shield Cup, 3mm
    E23041 558006141 Shield Cup, 4.1mm
    E23066 558006166 Shield Cup, 6.6mm
    E23099 558006199 Shield Cup, 9.9mm
    E23124 558007624 Shield Cup, 2.4mm
    E2744 21944 Shield Gas Diffuser, Standard
    E2596 21796 Shield Gas Diffuser, Low Current
    E21096 22496 Shield Gas Diffuser, Reverse
    E11882 37082 Nozzle Retaining Cap, Standard
    E1826 22026 Nozzle Tip, 50A
    E1829 22029 Nozzle Tip, 100A
    E1830 22030 Nozzle Tip, 150A
    E1831 22031 Nozzle Tip, 200A
    E1832 22032 Nozzle Tip, 250A
    E1834 22034 Nozzle Tip, 360A
    E1833 22033 Nozzle Tip, 400A
    E6827 22027 Nozzle Base, 50A
    E6828 22028 Nozzle Base, 100-400A
    E12910 558006010 Nozzle, 1mm
    E12914 558006014 Nozzle, 1.4mm
    E12918 558006018 Nozzle, 1.8mm
    E12920 558006020 Nozzle, 2mm
    E12923 558006023 Nozzle, 2.3mm
    E12925 558006025 Nozzle, 2.5mm1
    E12928 558006014 Nozzle, 2.8mm
    E12930 558006030 Nozzle, 3mm1
    E12936 558006036 Nozzle, 3.6mm1
    E12941 558006041 Nozzle, 4.1mm1
    E02859 558005459 Electrode L.C., O2/N25
    E02628 558003928 Electrode Std., O2/H355
    E02614 558003914 Electrode Std., O25
    E72857 558005457 Baffle, 4 Hole x 0.0221
    E72434 558002534 Baffle, 4 Hole x 0.032 CCW1
    E72433 558002533 Baffle, 4 Hole x 0.0321
    E72225 558001625 Baffle, 8-Hole x 0.0471
    E72430 558002530 Baffle, 8-Hole x 0.047 CCW1
    E02624 558003924 Electrode Holder
    E83404 0558003804 Torch Body
    PT-37 E43703 0558006603 SHIELD 30-40 AMP PT-37
    E43702 0558006602 SHIELD 50-90 AMP PT-37/38
    E43701 0558006601 SHIELD 100 AMP PT-37/PT38GOUGE
    E43700 0558006600 RETAINING CUP W/THREADS PT-37
    E13318 0558005218 Nozzle 30-40 AMP PT-37
    E13578 0558004878 Nozzle 50 AMP PT-37
    E13619 0558005219 Nozzle 70 AMP PT-37/38
    E13579 0558004879 Nozzle 100 AMP PT-37
    E03620 0558005220 Electrode 30-40A PT-37
    E03575 0558004875 Electrode 50-100A PT-37
    E73617 0558005217 Gas Baffle30-70A PT-37/38
    E73570 0558004870 Gas Baffle90-100A PT-37/38
    E93590 0558004890 4.5Feet(1.4M)PT-37
    E93591 0558004891 17Feet(5.2M)PT-37
    E93592 0558004892 25Feet(7.6M)PT-37
    E93593 0558004893 50Feet(15.2M)PT-37

    Technical Support:
    Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut by this process include steel, aluminum, brass and copper though other conductive metals may be cut as well. Plasma cutting is often used in fabrication and welding shops, automotive repair and restoration, industrial construction, salvage and scrapping operations. Due to the high speed, precision cuts, combined with low cost of operation, plasma cutting sees a widespread usage from large scale industrial CNC applications down to small hobbyist shops.
    The basic plasma cutting process involves creating an electrical channel of ionized gas i.e. plasma from the plasma cutter itself, through the work piece to be cut, thus forming a completed electric circuit back to the plasma cutter via a grounding clamp. This is accomplished by a compressed gas (oxygen, air, inert and others depending on material being cut) which is blown through a focused nozzle at high speed toward the work piece. An electrical arc is then formed within the gas, between an electrode near or integrated into the gas nozzle and the work piece itself. The electrical arc ionizes some of the gas, thereby creating an electrically conductive channel of plasma. As electricity from the cutter torch travels down this plasma it delivers sufficient heat to melt through the work piece. At the same time, much of the high velocity plasma and compressed gas blow the hot molten metal away, thereby separating i.e. cutting through the work piece.
    Plasma cutting is an effective means of cutting thin and thick materials alike. Hand-held torches can usually cut up to38mm thick steel plate, and stronger computer-controlled torches can cut steel up to 150 mm thick.[1] Since plasma cutters produce a very hot and very localized "cone" to cut with, they are extremely useful for cutting sheet metal in curved or angled shapes.
