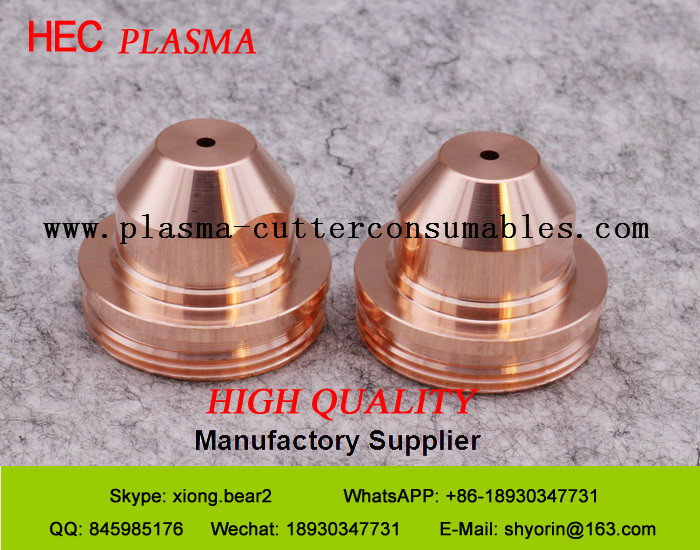

Oxygen Nozzle 020605 Plasma Cutting Consumables For Max200 / HT2000

    • Oxygen Nozzle 020605 Plasma Cutting Consumables For  Max200 / HT2000
    • Oxygen Nozzle 020605 Plasma Cutting Consumables For  Max200 / HT2000
    • Oxygen Nozzle 020605 Plasma Cutting Consumables For  Max200 / HT2000
  • Oxygen Nozzle 020605 Plasma Cutting Consumables For  Max200 / HT2000

    Product Details:

    Place of Origin: China
    Brand Name: Plasma Consumables
    Certification: ROHS/ SGS
    Model Number: Nozzle 020605

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: Manufacturer packing
    Delivery Time: Prompt goods
    Payment Terms: T/T or western Union
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Plasma Consumables Application: Plasma Cutting Machine
    Standard: Manufacturer Production Standard Type: Nozzle 020605

    Oxygen Nozzle 020605 For Max200 / HT2000 Plasma Consumables



                We can offer you all plasma consumables for hyptertherm, Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.

                We are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China ,it was established in 2007,but we had 10 years manufacturing experience in this field, the new factory covers an area of more than 10000 square meters .There are 50-100 workers and 20 research engineers.







    Machine HEC NO. Ref NO. Description















    MAX200

    HT2000

    H02021 220021 Electrode,Oxygen/Air,40/200Amp
    H02547 120547 Electrode,Oxygen/Air,100Amp
    H02667 120667 Electrode,Oxygen/Air,40/200Amp

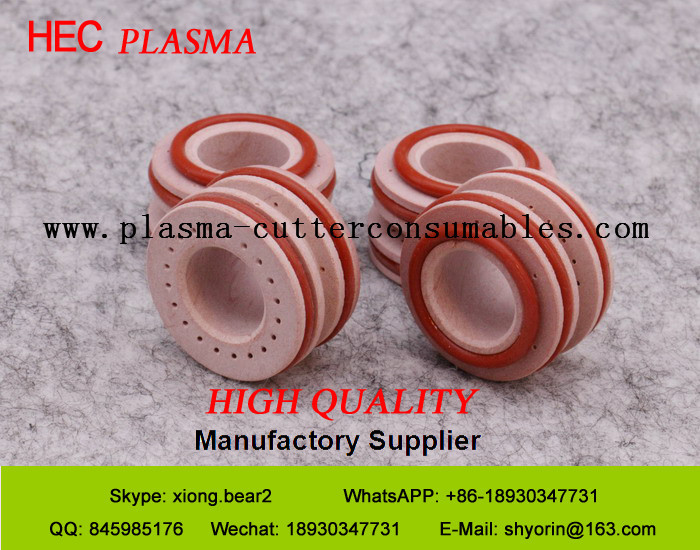

    H72833 120833 Swirl Ring,Oxygen,200Amp
    H72617 020617 Swirl Ring,Oxygen,100Amp
    H72607 020607 Swirl Ring,Air,Argon/Hydrogen,N2,100/200Amp

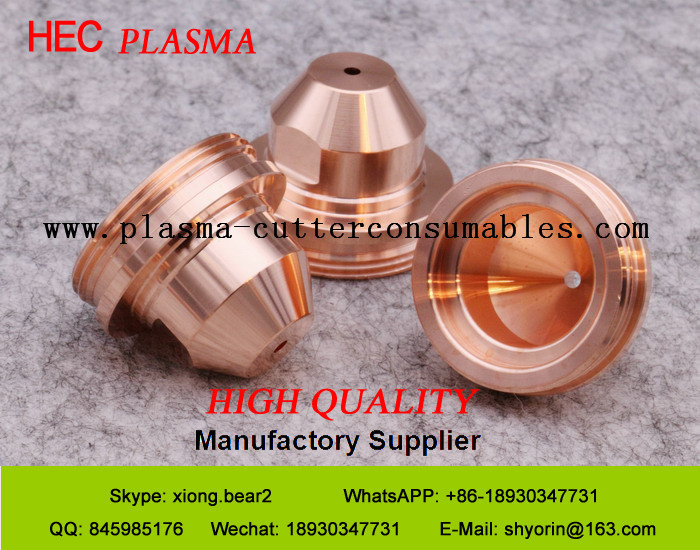

    H12605 020605 Nozzle,Oxygen,200Amp
    H12608 020608 Nozzle,Oxygen,Air,Argon/Hydrogen,N2,200Amp
    H12611 020611 Nozzle,Air,Argon/Hydrogen,100Amp
    H42423 020423 Retaining Cap,40/100/200Amp
    H42837 120837 Retaining Cap ,40/100/200Amp
    H22424 020424 Shield,Oxygen,Air,N2,200Amp
    H22448 020448 Shield,Oxygen,Air,Argon/Hydrogen,100Amp
    H82380 128380 Machine Torch Assembly
    H82584 120584 MAX200/HT2000Torch body
    H92383 028383 Torch Lead
    H92384 028384 Torch Lead
    H92894 120894 Torch Mounting Sleeve
    H92963 020963 Water tube, Standard
    H92027 044027 O-Ring













    Technical Support:





    1, plasma cutting technology



    Plasma cutting is the use of high temperature plasma arc heat to make the metal part of the incision at the local melting (and evaporation), and by the momentum of the high-speed plasma to remove molten metal to form a processing method of incision.



    2, plasma cutting and flame gas cutting



    Plasma cutting can only be effective as a conductor of metal - low carbon steel, aluminum and stainless steel are typical examples. In cutting low carbon steel, the operator will experience a higher speed, deeper cutting effect.

    Flame gas is cut through combustion at high temperature, or by oxidation and cutting of metal. Therefore, the scope of its application is limited to the steel of this type can be used in the processing of black metal oxide technology. Metals like aluminum and stainless steel will generate oxide bound further oxidation. This makes the traditional flame gas cutting is impossible to deal with this kind of material. Plasma cutting, and is not dependent on oxidation treatment, so it can effectively cut aluminum, steel, and other conductive metal.

    And different kinds of gas can be used in plasma cutting, the majority of people are using compressed air to carry out plasma cutting. Air compressors are available in most cities, and therefore, plasma cutting does not require a combustible gas or a compressed oxygen and other gases as operating gases.

    Plasma cutting is more expensive than flame gas cutting in cutting thick plates, flame gas cutting does not need to connect the power supply and compressed air, which is easier for some users to use. Flame gas cutting is faster than plasma cutting in a thicker part of the steel. But the plasma cutting machine in cutting the thin plate cutting speed is much faster than the flame cutting, and the efficiency is higher, the effect is better!
