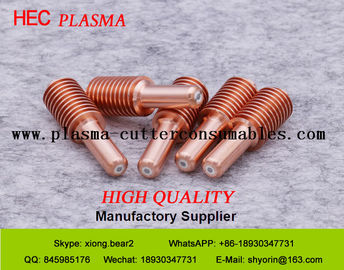

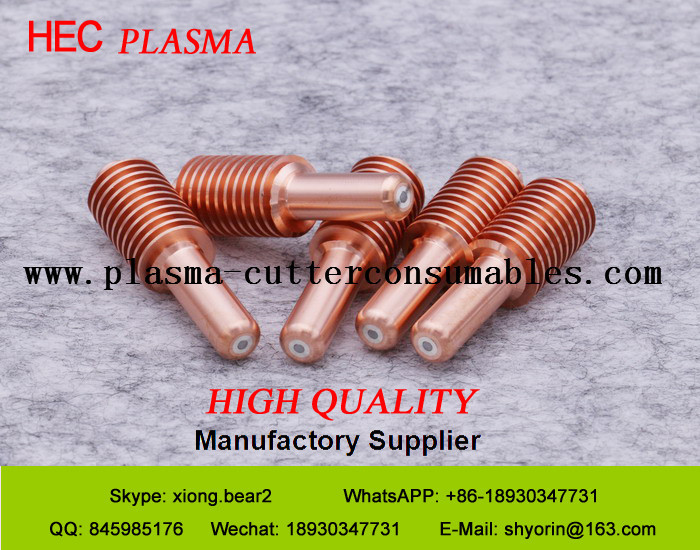

PMX65 / PMX85 Plasma consumables torch carbon steel

PMX65 / PMX85 Plasma consumables torch carbon steel

    • PMX65 /  PMX85 Plasma consumables torch carbon steel
  • PMX65 /  PMX85 Plasma consumables torch carbon steel

    Product Details:

    Place of Origin: China
    Brand Name: Plasma Consumables
    Certification: ROHS/ SGS
    Model Number: PowerMax65 / PowerMax85

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: Manufacturer packing
    Delivery Time: Prompt goods
    Payment Terms: T/T or western Union
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Plasma Consumables Application: Plasma Cutting Machine
    Standard: Manufacturer Production Standard Type: PowerMax65 / PowerMax85
    High Light:

    plasma cutter parts


    plasma cutter nozzle

    PowerMax65 / PowerMax85 Plasma consumables for Plasma torch, carbon steel plat plasma cutting


                We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.

    Each of our products has been tested with a rigorous precision instrument, A large number of piercings tests and service life tests, And made batch trial in our customers. If all results are good, then we will producing them.

               We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.

    Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers.




    Machine HEC NO. Ref NO. Description













    PowerMAX 45

    PowerMAX 65

    PowerMAX 85

    PowerMAX 105


    H71857 220857 Swirl Ring 45/65/85Amp
    H71994 220994 Swirl Ring 45/65/85/105Amp
    H71947 220947 Swirl Ring FineCut
    H01842 220842 Electrode 45/65/85Amp
    H11941 220941 Nozzle 45Amp
    H11819 220819 Nozzle 65Amp
    H11816 220816 Nozzle 85Amp
    H11930 220930 Nozzle FineCut
    H11797 220797 Nozzle 65A/85A gouging
    H11990 220990 Nozzle 105Amp
    H11991 220991 Nozzle 105A gouging
    H41854 220854 Retaining Cap 45/65/85Amp
    H41953 220953 Retaining Cap 45/65/85A mechanized, ohmic
    H41817 220817 Shield 45/65/85Amp mechanized
    H41818 220818 Shield 45/65/85A drag-cutting
    H41948 220948 Shield FineCut, mechanized, ohmic
    H41798 220798 Shieldg 65/85A gouging
    H41931 220931 Deflector FineCut, handheld
    H41993 220993 Shield 105Amp mechanized
    H41798 220798 Shield 105A drag-cutting
    H91955 220955 Deflector 45/65/85A mechanized,unshielded


    Technical Support:

    The maintenance of the plasma torch


    1. to correctly install the torch


    Correctly and carefully install the torch, and to ensure that all the parts fit together well, and ensures the cutting gas and shielding gas flow, before the installation will be all the components on a clean cloth, avoid dirt adhesion to components. In the "O" type ring with a little lubricant, "O" - shaped ring is appropriate, should not be more.


    2. the wearing parts should be replaced in time before the complete damage.


    Vulnerable parts are not used completely damaged after the replacement of, because of serious damage to the electrode, the nozzle and the eddy current ring will can not control the plasma arc, cutting torch damage easily. So for the first time found that the quality of cutting down, it should be timely inspection and replacement of wearing parts.


    3. The connecting thread cleaning torch


    In the replacement of wearing parts or daily maintenance inspection, must ensure that the torch of internal and external thread cleaning. If necessary, apply more than 98% of industrial alcohol cleaning or repair connection thread.


    4. the contact surface of the cleaning electrode and the nozzle


    Must ensure that the nozzle and electrode contact surface clean and free of oil, if the contact surface with dirt, the torch will not be able to normal working, should use such as hydrogen peroxide cleaning agent cleaning.


    5. check cutting gas and protective gas


    Check the flow and pressure of cutting gas and protecting gas every day, if the flow is not sufficient or leakage, should immediately stop the trouble.


    6. avoid torch collision damage


    In order to avoid cutting collision damage, should be properly programmed, the cutting speed limit to avoid walking. Install anti-collision device can effectively avoid the collision damage the cutting torch.
