|Place of Origin:||China|
|Brand Name:||Plasma Consumables|
|Minimum Order Quantity:||5pcs|
|Packaging Details:||Manufacturer packing|
|Delivery Time:||Prompt goods|
|Payment Terms:||T/T or western Union|
|Supply Ability:||10,000pcs per month|
|Product Name:||Plasma Consumables||Application:||Plasma Cutting Machine|
|Standard:||Manufacturer Production Standard||Type:||0558003914|
esab plasma cutter parts,
plasma cutter consumables

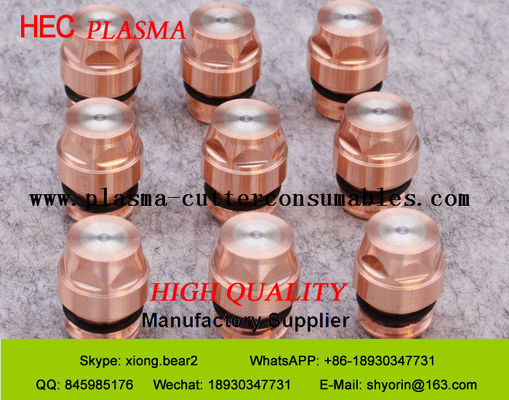

Plasma Cutter Electrode 0558003914 For Esab PT-36 Plasma Cutting Machine accessories
Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on. We have tens years experience to export many countries, and our products is very competitive in the world.
Each of our products has been tested with a rigorous precision instrument, A large number of piercings tests and service life tests, And made batch trial in our customers. If all results are good, then we will producing them.
Our company produces :
1. consumables for HT4400, HPR400XD, HPR260XD, HPR130XD, HPR260, HPR130, HSD130, HD3070, HD4070, HT2000, MAX200, POWERMAX1650, POWERMAX1250, POWERMAX65, POWERMAX85, POWERMAX45, POWERMAX30 and so on.
2. Kjellberg consumables for HiFocus80i, HiFocus100i, HiFocus130i, HiFocus160i, HiFocus280i, HiFocus360i, HiFocus440i and so on.
3. Esab consumables for PT-25, PT-36, PT-37, PT-600, PT-15XL, PT-19XL, PT-31XL and so on.
|Machine||HEC NO.||Ref NO.||Description|
|E23030||558006130||Shield Cup, 3mm|
|E23041||558006141||Shield Cup, 4.1mm|
|E23066||558006166||Shield Cup, 6.6mm|
|E23099||558006199||Shield Cup, 9.9mm|
|E23124||558007624||Shield Cup, 2.4mm|
|E2744||21944||Shield Gas Diffuser, Standard|
|E2596||21796||Shield Gas Diffuser, Low Current|
|E21096||22496||Shield Gas Diffuser, Reverse|
|E11882||37082||Nozzle Retaining Cap, Standard|
|E1826||22026||Nozzle Tip, 50A|
|E1829||22029||Nozzle Tip, 100A|
|E1830||22030||Nozzle Tip, 150A|
|E1831||22031||Nozzle Tip, 200A|
|E1832||22032||Nozzle Tip, 250A|
|E1834||22034||Nozzle Tip, 360A|
|E1833||22033||Nozzle Tip, 400A|
|E6827||22027||Nozzle Base, 50A|
|E6828||22028||Nozzle Base, 100-400A|
|E02859||558005459||Electrode L.C., O2/N25|
|E02628||558003928||Electrode Std., O2/H355|
|E02614||558003914||Electrode Std., O25|
|E72857||558005457||Baffle, 4 Hole x 0.0221|
|E72434||558002534||Baffle, 4 Hole x 0.032 CCW1|
|E72433||558002533||Baffle, 4 Hole x 0.0321|
|E72225||558001625||Baffle, 8-Hole x 0.0471|
|E72430||558002530||Baffle, 8-Hole x 0.047 CCW1|
|PT-37||E43703||0558006603||SHIELD 30-40 AMP PT-37|
|E43702||0558006602||SHIELD 50-90 AMP PT-37/38|
|E43701||0558006601||SHIELD 100 AMP PT-37/PT38GOUGE|
|E43700||0558006600||RETAINING CUP W/THREADS PT-37|
|E13318||0558005218||Nozzle 30-40 AMP PT-37|
|E13578||0558004878||Nozzle 50 AMP PT-37|
|E13619||0558005219||Nozzle 70 AMP PT-37/38|
|E13579||0558004879||Nozzle 100 AMP PT-37|
|E03620||0558005220||Electrode 30-40A PT-37|
|E03575||0558004875||Electrode 50-100A PT-37|
|E73617||0558005217||Gas Baffle30-70A PT-37/38|
|E73570||0558004870||Gas Baffle90-100A PT-37/38|
Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut by this process include steel, aluminum, brass and copper though other conductive metals may be cut as well. Plasma cutting is often used in fabrication and welding shops, automotive repair and restoration, industrial construction, salvage and scrapping operations. Due to the high speed, precision cuts, combined with low cost of operation, plasma cutting sees a widespread usage from large scale industrial CNC applications down to small hobbyist shops.
The basic plasma cutting process involves creating an electrical channel of ionized gas i.e. plasma from the plasma cutter itself, through the work piece to be cut, thus forming a completed electric circuit back to the plasma cutter via a grounding clamp. This is accomplished by a compressed gas (oxygen, air, inert and others depending on material being cut) which is blown through a focused nozzle at high speed toward the work piece. An electrical arc is then formed within the gas, between an electrode near or integrated into the gas nozzle and the work piece itself. The electrical arc ionizes some of the gas, thereby creating an electrically conductive channel of plasma. As electricity from the cutter torch travels down this plasma it delivers sufficient heat to melt through the work piece. At the same time, much of the high velocity plasma and compressed gas blow the hot molten metal away, thereby separating i.e. cutting through the work piece.
Plasma cutting is an effective means of cutting thin and thick materials alike. Hand-held torches can usually cut up to38mm thick steel plate, and stronger computer-controlled torches can cut steel up to 150 mm thick. Since plasma cutters produce a very hot and very localized "cone" to cut with, they are extremely useful for cutting sheet metal in curved or angled shapes.
Proper eye protection (but not gas welding goggles as these do not give UV protection) and face shields are needed to prevent eye damage called arc eye as well as damage from debris, as per Arc Welding. It is recommended to use green lens shade #8 or #9 safety glasses for cutting to prevent the retinas from being "flashed" or burned. OSHA recommends a shade 8 for Arc Current less than 300, but notes that "These values apply where the actual arc is clearly seen. Experience has shown that lighter filters may be used when the arc is hidden by the workpiece."
Leather gloves, apron and jacket are also recommended to prevent burns from sparks and debris.
