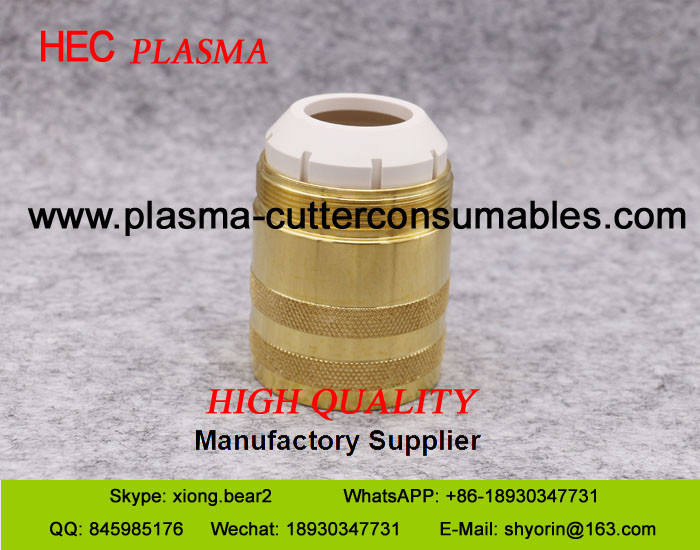

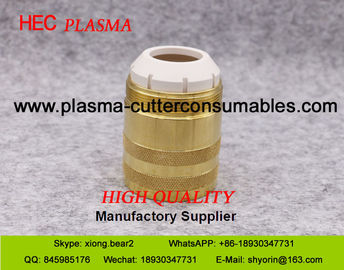

0004470045 (37082) Esab Plasma Machine Consumables Esab Nozzle Retaining Cap

0004470045 (37082) Esab Plasma Machine Consumables Esab Nozzle Retaining Cap

  • 0004470045 (37082) Esab Plasma Machine Consumables Esab Nozzle Retaining Cap
0004470045 (37082) Esab Plasma Machine Consumables Esab Nozzle Retaining Cap
Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: 0004470045 (37082)
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: 0004470045 (37082)
High Light:

esab plasma cutter parts

,

plasma cutter consumables

0004470045 (37082) Esab Nozzle Retaining Cap, Esab Plasma Consumables , Esab Retaining Cap

We are a professional manufacturer of plasma cutter consumables.

Customer Satisfaction

If you worry about our products’ quality, I can give you some samples to test by free. Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Shipping and handing
1. DHL is our preferred shipping method. Meanwhile TNT, EMS, Fedex, UPS are available.
2. Make sure to leave telephone number when filling your buyer information.
3.You can check the goods where it is in transit through tracking NO .

Refund(Echange Only)

1.If you are not satisfied with your purchase, you can echange the items received. you must contact us within 5 days of the receipt

of your order. And you should pay all additional shipping fees incurred and the items returned should be kept in their original

status.

2.If you wish to echange defective or incorrect shipped goods, please contact us within 5 days after receiving the goods.

Notes

1. The buyer are responsible for any insurance you think necessary.

2. The processing time for a specific order varies with the product type and stock status. Mostly, processing time can be 3 to 15 working days.

0558003914 Electrode
0558005459 Electrode L.C., O2/N25
0558003928 Electrode Std., O2/H355
0558009400 Electrode
0558009406 Nozzle 0.6mm
0558009410 Nozzle 1.0mm
0558009411 Nozzle 1.1mm
0558008010 Nozzle 1.0mm
0558006010 Nozzle 1mm
0558006014 Nozzle 1.4mm
0558006018 Nozzle 1.8mm
0558006020 Nozzle 2mm
0558006023 Nozzle 2.3mm
0558006025 Nozzle 2.5mm1
0558006030 Nozzle 3mm1
0558006036 Nozzle 3.6mm1
0558006041 Nozzle 4.1mm1
0558009425 Shield Cup 2.5mm
0558007624 Shield Cup 2.4mm
0558006130 Shield Cup 3mm
0558006141 Shield Cup 4.1mm
0558006166 Shield Cup 6.6mm
0558006199 Shield Cup 9.9mm
0558003924 Electrode Holder
0558005457 Baffle, 4 Hole x 0.0221
0558002534 Baffle, 4 Hole x 0.032 CCW1
0558002533 Baffle, 4-Hole x 0,0321
0558001625 Baffle, 8-Hole x 0.0471
0558002530 Baffle, 8-Hole x 0.047 CCW1
0004470031(21944) Diffuser
0004470115R Diffuser
0004470046 (37081) Shield Retaing Cap
0004470045 (37082) Nozzle Retaining Cap
0004450043 Nozzle Retaining Cap 25-40mm
0004450045 Nozzle Retaining Cap 60-100mm
0004450046 Shield Retaing Cap
0558012000 Electrode
0558011619 Nozzle 1.9mm(.073") 200A
0558010722 Nozzle 2.2mm 260A
0558011625 Nozzle 2.5mm 300A
0558009520 Shield Micro 2.0mm
0558009525 Shield Micro 2.5mm
0558009551 Shield 5.1mm(.200")
0558009550 Nozzle Retaining Cap
0558009548 Shield Retaing Cap
0558003804 Torch Body



Plasma cutting machine matters needing attention

Technical Support:



The selection of cutting parameters of CNC plasma cutting machine is very important for cutting quality, cutting speed and efficiency. The correct use of CNC plasma machine for high quality fast cutting, cutting process parameters must be deeply understood and mastered.



First, cutting current: it is the most important cutting process parameters, directly determines the cutting thickness and speed, that is, cutting ability. Effects: 1, cutting current increases, an increase in the energy of the arc, cutting ability, the cutting speed is increased; 2, cutting current increases, increasing the diameter of the arc arc variable rough makes incision width; 3, cutting current ambassador to the nozzle increases the heat load, the nozzle premature damage, cutting quality of the natural decline, can't even normal cut. So the cutting current and the corresponding nozzle should be chosen according to the thickness of the material before cutting.

1, argon at high temperature and almost no reaction to any metal, argon plasma arc is very stable. The nozzle and the electrode used have high service life. But the argon plasma arc voltage is low, the enthalpy value is not high, the cutting ability is limited, and the cutting thickness will be reduced by about 25% compared with the air. In addition, the surface tension of molten metal is larger than that in the environment of nitrogen gas, which is about 30% higher than that in nitrogen gas environment. Even if the use of argon and other gas mixture will have a tendency to stick. Therefore, pure argon plasma cutting has been rarely used alone.



2, hydrogen is often as auxiliary gas and other gas mixing action, such as the famous gas H35 (the volume fraction of hydrogen is 35%, the rest of the argon) is one of the strongest gas plasma arc cutting, the main enrichment in hydrogen. Because the hydrogen can significantly improve the arc voltage, the hydrogen plasma jet has a high enthalpy value, when mixed with argon, the cutting ability of the plasma jet is greatly improved. Generally more than 70mm thickness of metal materials, commonly used argon + hydrogen as a cutting gas. If the water jet is used to further compress the argon + hydrogen plasma arc, the higher cutting efficiency can be obtained.



3, nitrogen is used as a working gas, under the conditions of higher voltage and nitrogen plasma arc has better stability and higher than the argon gas jet power, even if is cutting liquid metal viscosity materials such as stainless steel and nickel base alloy, incision of inferior hanging slag quantity are few. Nitrogen can be used alone, also can use with other gas mixture, such as automatic cutting often use air or nitrogen as the working gas, the gas has become the standard high speed cutting carbon steel gas. Sometimes nitrogen is also used as an arc gas in the plasma arc cutting.



4, oxygen can improve the speed of cutting low carbon steel materials. Use oxygen cutting, cutting mode and flame cutting is very similar, the plasma arc of high temperature and high energy of the cutting speed faster, but must with the use of high temperature oxidation resistance of electrode, and the electrode for arc anti impact protection, to prolong the electrode life.



5, an air containing volume fraction of about 78% nitrogen, so use air cutting formed by hanging slag and nitrogen gas cutting is very similar; in the air also contains a volume fraction of about 21% oxygen, because the existence of oxygen, air cutting speed of low carbon steel material is also very high; at the same time the air is the most economical working gas. However, when the air is used to cut, there are problems such as hanging slag and cutting oxidation, increasing nitrogen, and the lower life of electrode and nozzle can also affect the working efficiency and cutting cost.
