Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables

Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables

Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables
Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables

Large Image :  Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables

Product Details:
Place of Origin: China
Brand Name: Plasma Consumables
Certification: ROHS/ SGS
Model Number: 220668
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Manufacturer packing
Delivery Time: Prompt goods
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per month
Detailed Product Description
Product Name: Plasma Consumables Application: Plasma Cutting Machine
Standard: Manufacturer Production Standard Type: 220668
High Light:

esab plasma cutter parts


plasma cutter consumables

Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples but you need bear the express cost by yourself.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
Hyperherm plasma cutter nozzle 220439, plasma cutting nozzle 220354, hyperherm electrode 220435, plasma cutter tips 220352, hyperherm shield 220764, hyperherm cutter shield 220761, hyperherm swirl ring 2200436, Plasma cutter swirl ring 220353. plasma cutter water tube 220340. plasma inner cap 220760, 200A  inner cap 220757, plasma retaining cap 220637,  plasma Cutting machine HPR130XD, HPR260XD, plasma consumables. plasma HPR260XD plasma cutting accessories, HPR260XD plasma torch parts,

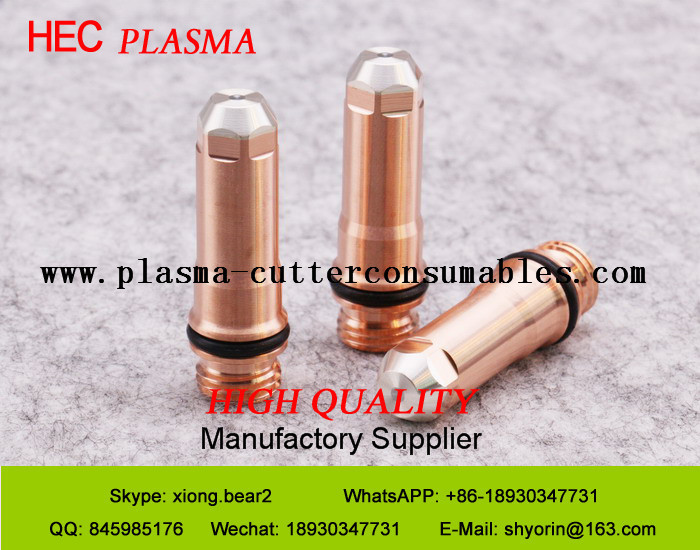

Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables 0

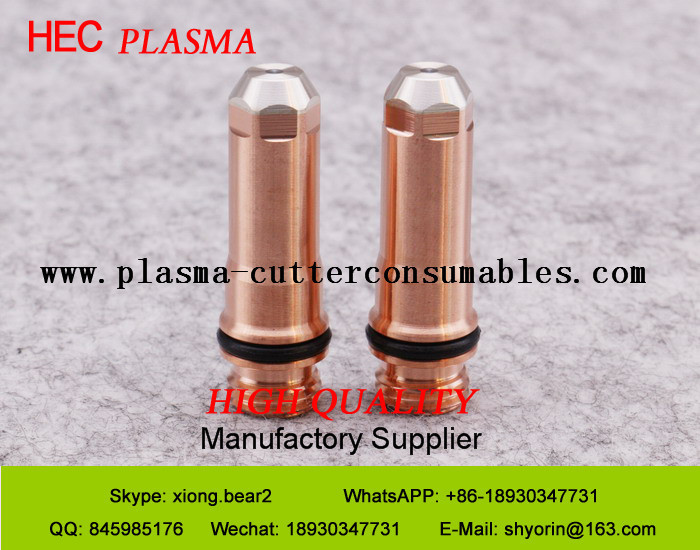

Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables 1

MachineHEC NO.Ref NO.Description

HPR 130
HPR 260

H03649220649Electrode,130Amp Bevel
H03541220541Electrode,260Amp Bevel
H03665220665Electrode,130Amp(silver Plus)
H03666220666Electrode,200Amp(silver Plus)
H03668220668Electrode,260Amp(silver Plus)
H73180220180Swirl Ring,30Amp
H73553220553Swirl Ring,50Amp
H73353220353Swirl Ring,200Amp
H73179220179Swirl Ring,80/130/260Amp(Bevel)
H73436220436Swirl Ring,260/260Amp(Bevel)
H73631220631Swirl Ring,400/400Amp(Bevel)
H33754220754Retaining Cap 30/50Amp
H33176220176Retaining Cap 80/130Amp
H33355220355Retaining Cap 200Amp
H33433220433Retaining Cap 260Amp
H33603220603Retaining Cap (Bevel) 130/260Amp
H33756220756Retaining Cap 80/130Amp
H33757220757Retaining Cap 200Amp
H33760220760Retaining Cap 260Amp
H33635220635Retaining Cap 400/400Amp(Bevel)
H33740220740Retaining Cap (Bevel) 130/260Amp
H43173220173Retaining Cap 30/50/80/130Amp
H43398220398Retaining Cap 200/260/(Bevel)130/260Amp
H43747220747Retaining Cap 30/50/80/130Amp
H43637220637Retaining Cap 200/260/400Amp(Bevel)
H83818128818HPR torch assembly
H83162220162Quick-disconnect torch
H83163220163Quick-disconnect recepticle
H83706220706Quick-disconnect torch
H83705220705Quick-disconnect recepticle
H93571220571Water Tube with O-Ring
H93340220340Water Tube with O-Ring(30/50/80/130/200/260Amp)
H93700220700Bevel water tube(mild steel-130A)

Plasma Silver Electrode 220668, CNC Plasma Cut Machine Consumables 2
Technical Support:
plasma cutting arc fault analysis
1. air pressure is too low
Plasma cutting machine work, such as work pressure far below specifications required pressure, which means that the plasma arc jet velocity weakening, input the air flow is less than the specified value, this form of high energy and high speed of plasma arc, causing the incision quality is poor, cut through, incision tumor of the product phenomenon. The reasons for the lack of air pressure: air compressor input is insufficient, the pressure of the cutting machine air regulator is too low, there are oil pollution in the solenoid valve, the gas path is not smooth, etc.. The solution is to use before the observation of air compressor output pressure display, such as does not meet the requirements, can adjust the pressure or maintenance of air compressor. If the input pressure has reached the requirements, should check air filter relief pressure valve regulation is correct; gauge display can meet the cutting requirements. Otherwise deal with air filter pressure relief valve to carry out routine maintenance, to ensure that the input air dry, no oil. If you enter the air quality is poor, will cause the oil pollution in the valve, the valve is difficult to open, the valve port can not be fully opened. In addition, torch nozzle pressure is too low, the replacement valve; gas road section variable is caused by pressure is too low, according to the specifications for tracheal replacement.
2. air pressure is too high
If the input air pressure is far more than 0. 45MPa, after the formation of the arc ion, the large flow of air will blow concentrated arc column, the energy of arc column dispersion, decreased the plasma arc cutting intensity. Cause the pressure is too high, the reasons are: improper input air conditioning, air filter regulator is too high or air filter valve failure. The solution is to check whether the pressure of the air compressor is adjusted properly, air compressor and air filter pressure relief valve is dysfunctional. After startup, such as rotating air filter relief pressure valve adjusting switch, gauge unchanged, indicating that the air filter relief pressure valve failure, need to be replaced.
