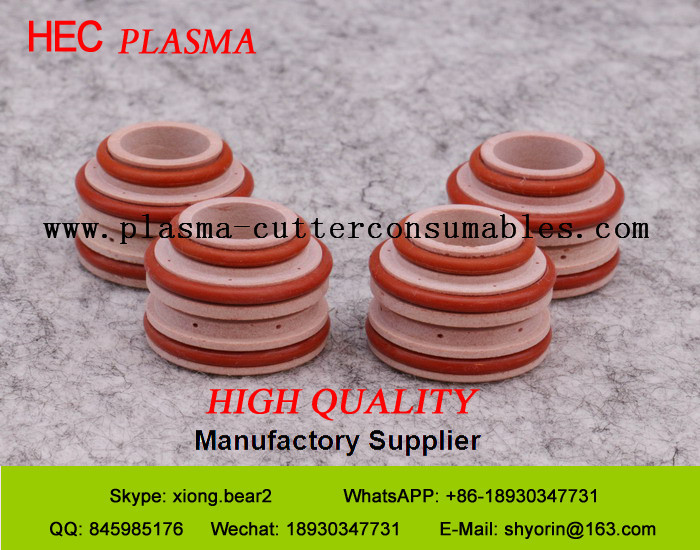

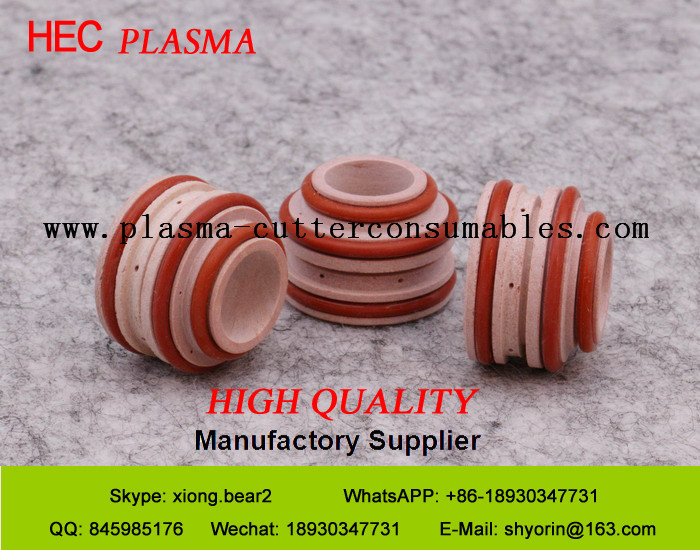

Max 200 Consumables For MaxPRO200 Swril Ring 220529

Plasma Consumables For MaxPRO200 Swril Ring 220529

Shanghai ZhouBo Welding & Cutting Technology is a professional manufacturer plasma consumables electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on. We have tens years experience to export many countries, and our products is very competitive in the world.
Our company produces :
consumables for HT4400, HPR400XD, HPR260XD, HPR130XD, HPR260, HPR130, HSD130, HD3070, HD4070, HT2000, MAX200, POWERMAX1650, POWERMAX1250, POWERMAX65, POWERMAX85, POWERMAX45, POWERMAX30 and so on.

Technical Support:

plasma cutting machine working principle and cutting range

Plasma cutting machine with compressed air as the working gas, plasma arc of high temperature and high speed as the heat source, will be cutting of the metal local melting (and evaporation), and at the same time high-speed airflow will have metal melting blown away, forming a narrow slit. Plasma cutting machine can be used for stainless steel, aluminum, copper, cast iron, carbon steel and other metal materials cutting. Plasma cutting machine is not only cutting speed, cutting narrow, notch formation, heat affected zone is small, low deformation of the workpiece, easy operation, but also has significant energy saving effect. Plasma cutting machine is suitable for all kinds of machinery, metal structure manufacture, installation and repair work in thin sheet cutting, opening, patching, open groove cutting.

(1) cutting current of plasma cutting machine

The current is related to the material and thickness of the cut piece, and the cutting current increases with the increase of the thickness of the cut piece.

(2) cutting speed

Cutting speed depends on the material thickness, cutting current. Cutting speed is a serious impact on the quality of the incision, the speed is too fast, plasma arc to melt metal.

(3) nozzle height

From the height of the cutting nozzle and cutting structure, 2-4mm metal surface.

(4) working gas

Plasma cutting development up to now, the working gas (gas is plasma arc conducting medium, and is carrying heating. At the same time, we should exclude the incision in the molten metal) on plasma arc cutting properties and cutting quality and speed have obvious influence. The common plasma arc working gas is argon, hydrogen, nitrogen, oxygen, air, water vapor and some mixture gases.

(5) gas flow

Influence on arc compression level and blowing in addition to the effect of molten metal, the flow is too large, arc and tend to be unstable, flow through the small to blow in the molten metal, and even burn the conductive nozzle.

Cutting gun:

1) plasma generator, conductive nozzle, conductive electrode, gas distributor, ceramic, nozzle.

2) cutting gas air plasma arc cutting using compressed air as cutting gas.

3) selection specification including cutting current, cutting speed, gas flow rate and parameters.

The stability of plasma arc cutting machine has a direct impact on the quality of cutting. Plasma arc unstable phenomenon, will lead to uneven wound, and the accumulation of tumor and other defects, but also lead to the control system related components life is reduced, the nozzle, the electrode frequent replacement.
