Place of Origin: | China |
Brand Name: | Plasma Consumables |
Certification: | ROHS/ SGS |
Model Number: | Nozzle 120927 |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | Manufacturer packing |
Delivery Time: | Prompt goods |
Payment Terms: | T/T or western Union |
Supply Ability: | 10,000pcs per month |
Product Name: | Plasma Consumables | Application: | Plasma Cutting Machine |
---|---|---|---|
Standard: | Manufacturer Production Standard | Type: | Nozzle 120927 |
High Light: | plasma cutter parts,plasma cutter nozzle |

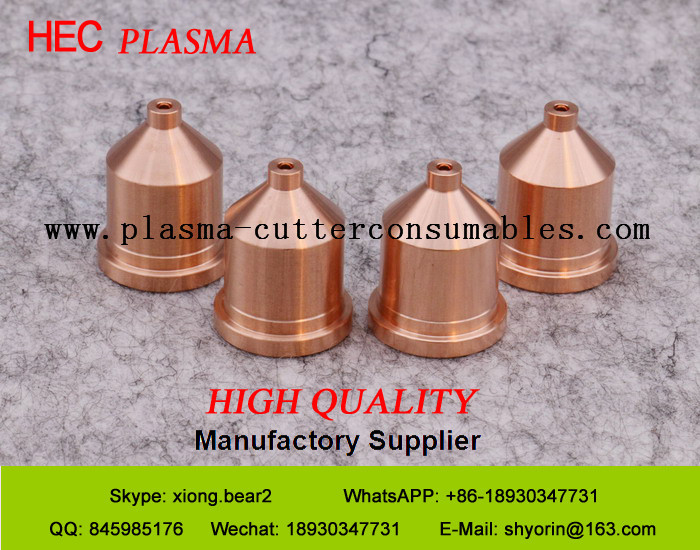

Powermax1250 Nozzle 120927 Plasma Consumables For Plasma Cutting Machine
We can offer you all plasma consumables for , Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.
We are specialized in the production of plasma cutting machine torch consumables manufacturer, we are engaged in the industry for ten years.
Our products are processed using CNC machines, we have fifteen sets of high-precision testing equipment and Eighty experienced skilled workers
Machine | HEC NO. | Ref NO. | Description |
|
H71925 | 120925 | Swirl Ring 40/60/80Amp |
H71051 | 220051 | Swirl Ring 100Amp | |
H01926 | 120926 | Electrode 40/60/80Amp | |
H01037 | 220037 | Electrode 100Amp | |
H11932 | 120932 | Nozzle 40Amp | |
H11931 | 120931 | Nozzle 60Amp | |
H11927 | 120927 | Nozzle 80Amp | |
H11011 | 220011 | Nozzle 100Amp | |
H11006 | 220006 | Nozzle 40Amp Without Cap | |
H11007 | 220007 | Nozzle 60Amp Without Cap | |
H11980 | 120980 | Nozzle 80Amp Without Cap | |
H11064 | 220064 | Nozzle 100Amp Without Cap | |
H11329 | 220329 | Nozzle 40Amp Fine Cut | |
H41928 | 120928 | Retaining Cap 40/60/80Amp | |
H41048 | 220048 | Retaining Cap 100Amp | |
H41061 | 220061 | Retaining Cap 40/60/80Amp | |
H41206 | 220206 | Retaining Cap 100Amp | |
H21930 | 120930 | Shield 40/60/80Amp | |
H21047 | 220047 | Shield 100Amp | |
H21979 | 120979 | Shieldg 40/60/80/100Amp | |
H21325 | 220325 | Shieldg 40Amp Fine Cut | |
H31404 | 220404 | Shieldg 40Amp Fine Cut | |
H81767 | 128767 | T100Torch Body | |
H82768 | 128768 | T100 Torch Head | |
H91755 | 128755 | T100 Torch Lead | |
H91752 | 128752 | T100 Torch Lead | |
H81754 | 128754 | Torch Main Body | |
H91643 | 128643 | Mounting Sleeve | |
H91710 | 128710 | Positioning Sleeve | |
H91753 | 128753 | Torch Lead | |
H91751 | 128751 | Torch Lead | |
H91759 | 128759 | Torch Lead | |
H91519 | 058519 | Torch O-ring |
.
Technical Support:
plasma cutting arc fault analysis
2. air pressure is too high
If the input air pressure is far more than 0. 45MPa, after the formation of the arc ion, the large flow of air will blow concentrated arc column, the energy of arc column dispersion, decreased the plasma arc cutting intensity. Cause the pressure is too high, the reasons are: improper input air conditioning, air filter regulator is too high or air filter valve failure. The solution is to check whether the pressure of the air compressor is adjusted properly, air compressor and air filter pressure relief valve is dysfunctional. After startup, such as rotating air filter relief pressure valve adjusting switch, gauge unchanged, indicating that the air filter relief pressure valve failure, need to be replaced.
3. cutting torch nozzle and electrode
Since the nozzle installation is improper, such as threads are not tightened, equipment of each block bit improper adjustment, need water cooling of the torch at work, not in accordance with the requirements of pass into the flow of cooling water and frequent arcs, will cause premature failure of the nozzle. Solution is, in accordance with the requirement of technology of the workpiece cutting and the correct adjustment of equipment gear, check the torch nozzle is installed firmly is, through the cooling water nozzle should be made in advance in cooling water circulation up. When cutting, cutting torch and workpiece thickness adjustment according to workpiece distance.
